Home
>>
BMW
>>
1998
>>
750iL (E38) V12-5379cc 5.4L SOHC (M73)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Engine Control System (DME)
>>
Pedal Position Sensor

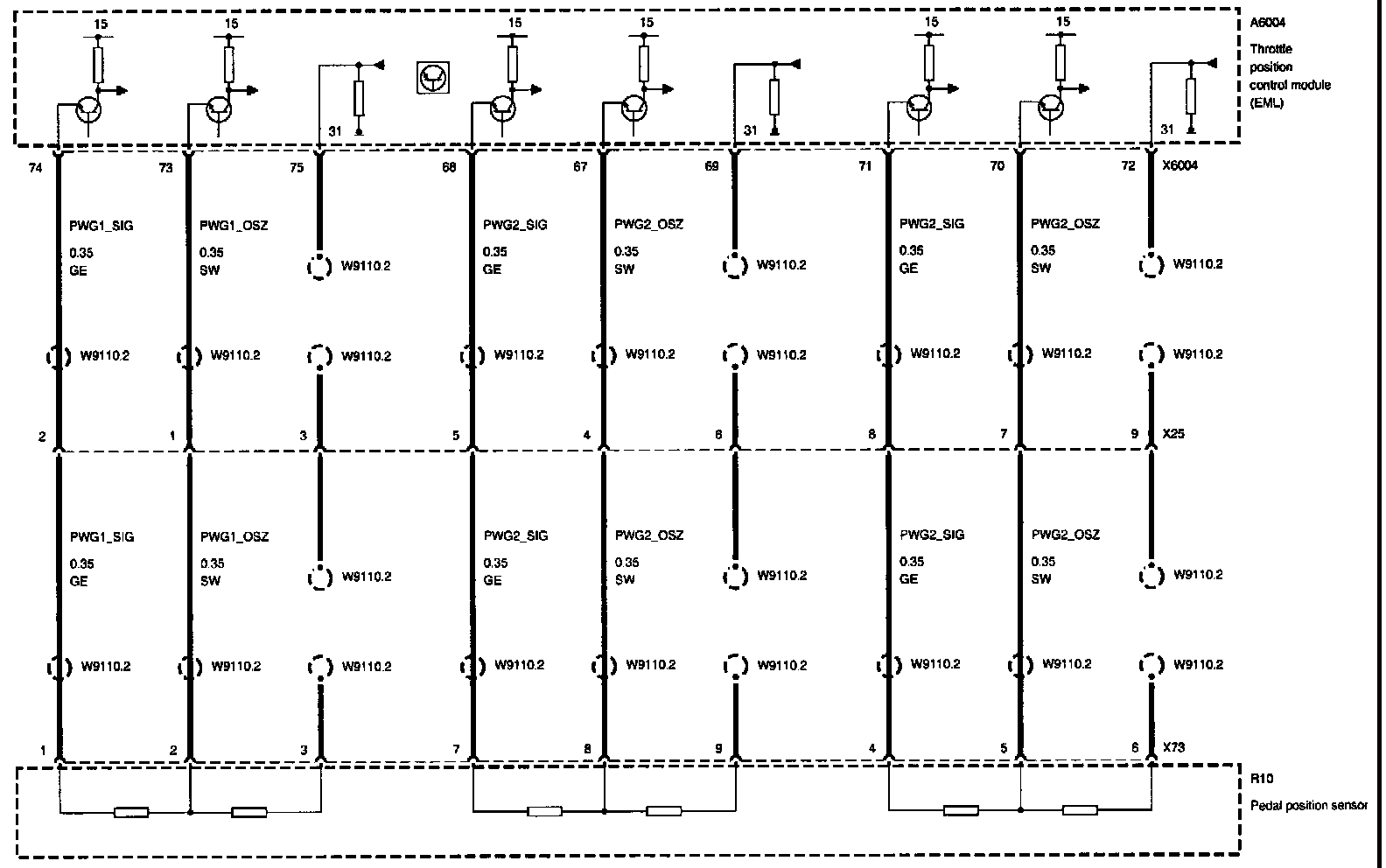

Pedal Position Sensor
Pedal Position Sensor:
