A6004 Throttle Position Control Module
A6004 Throttle Position Control Module

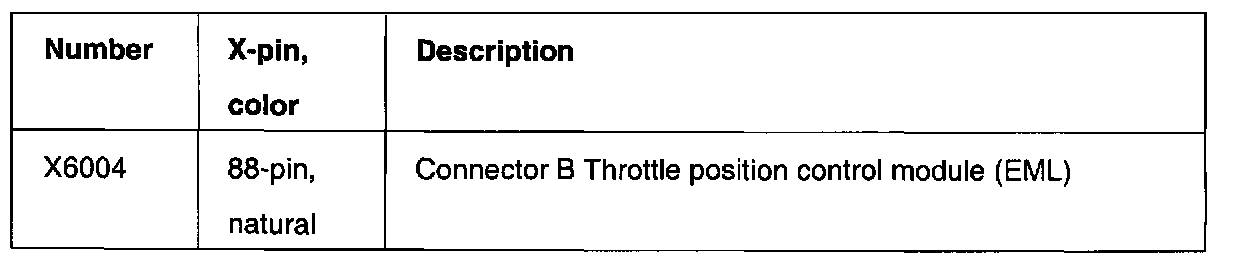

Connector Overview

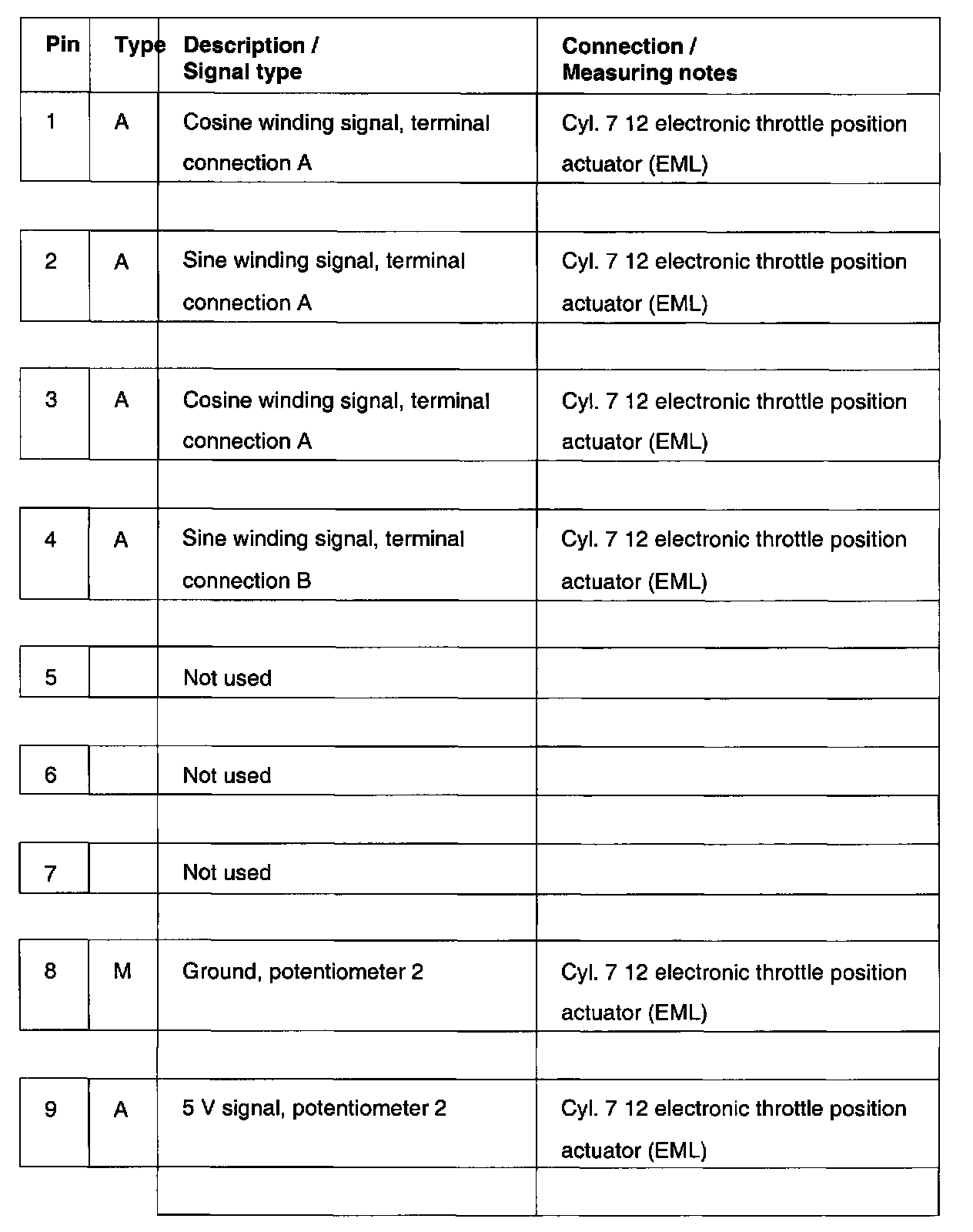

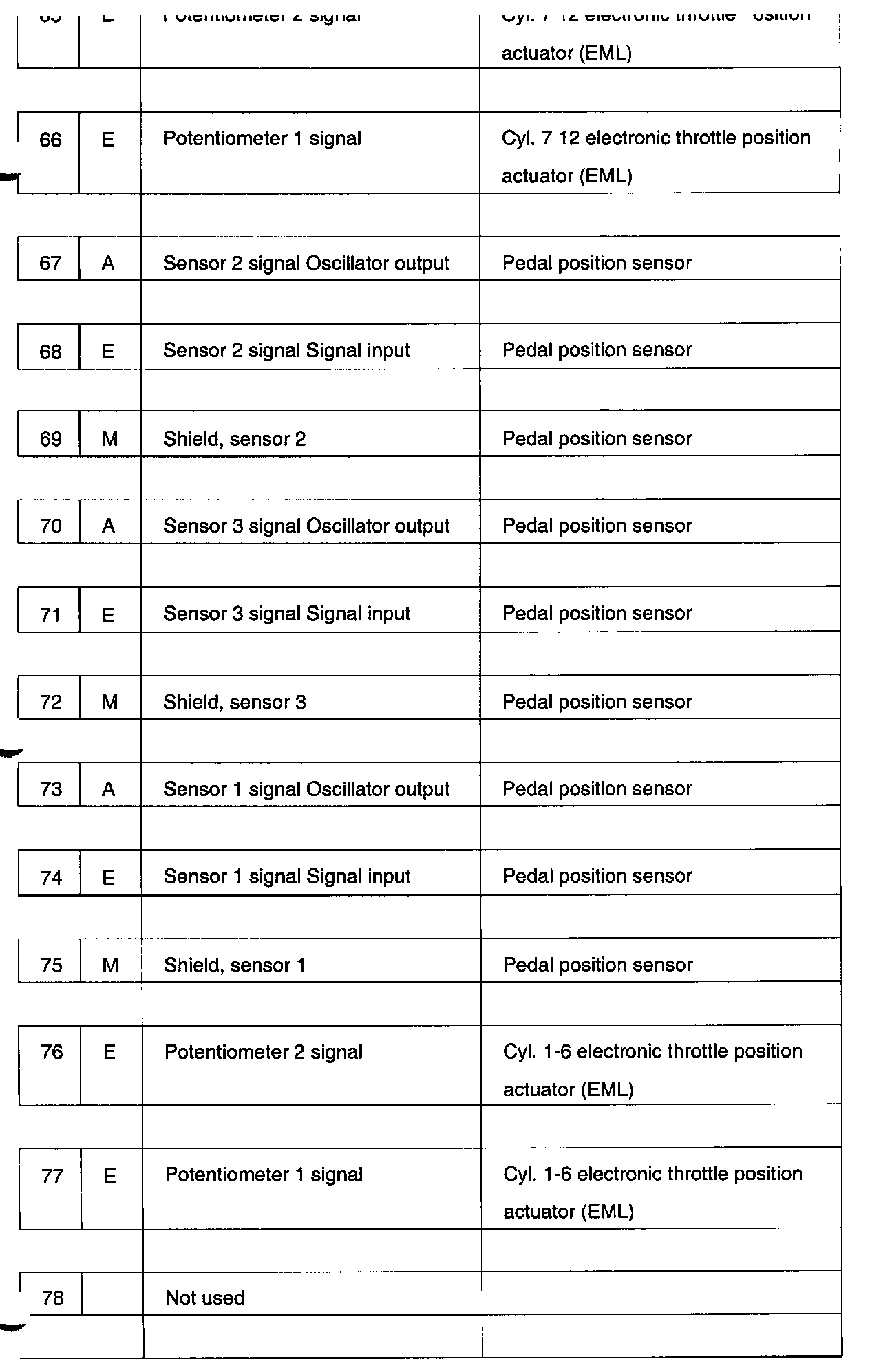

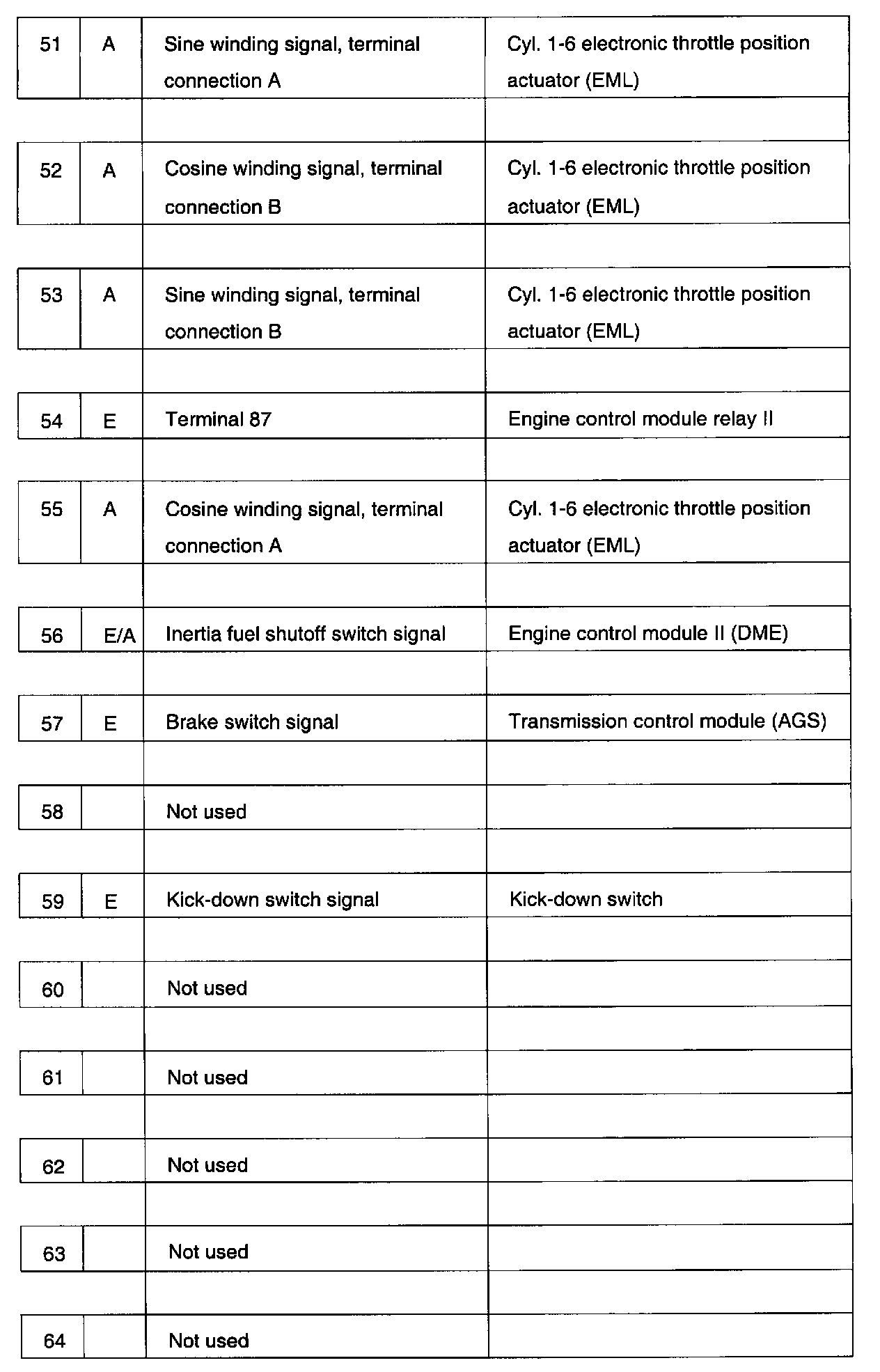

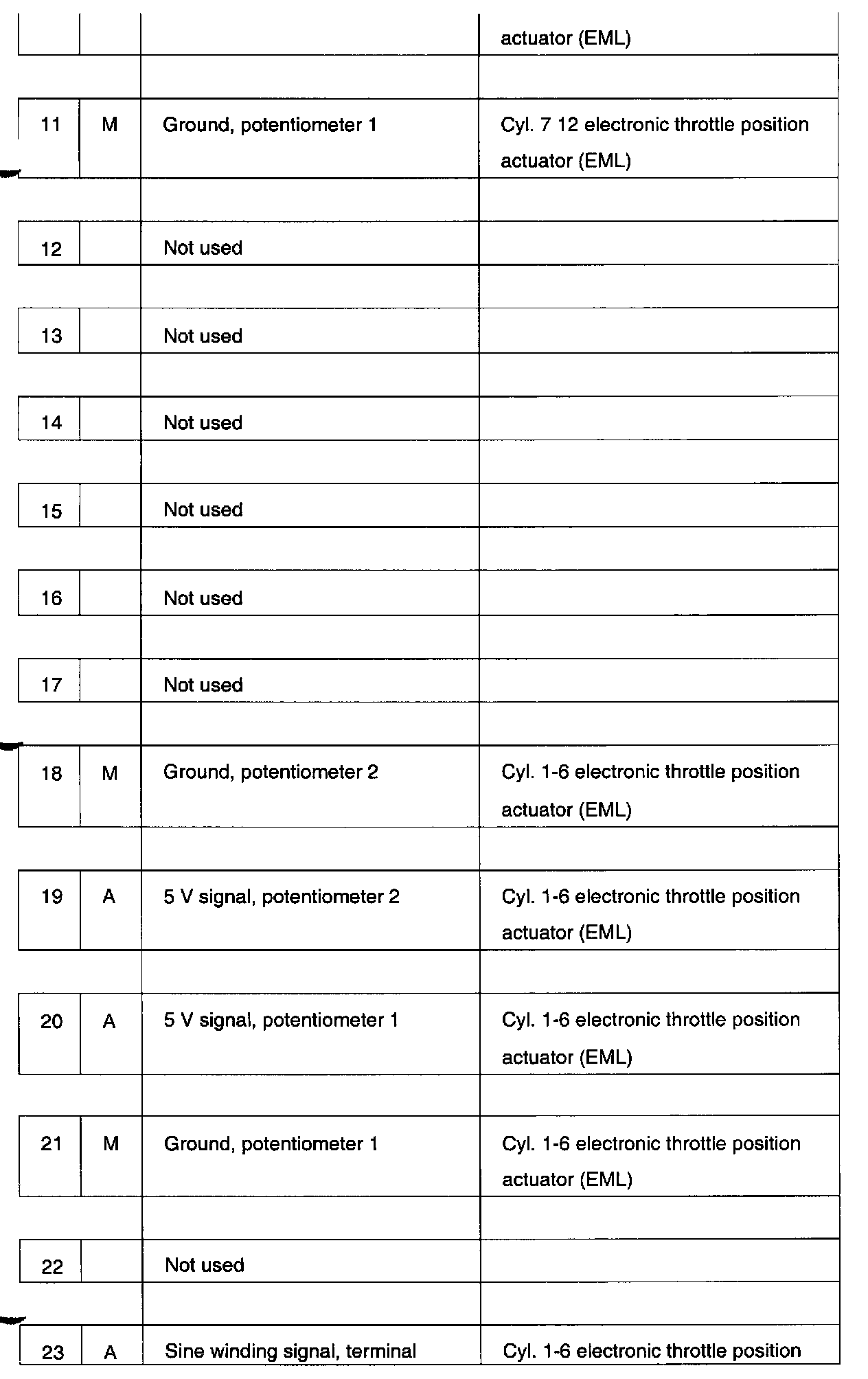

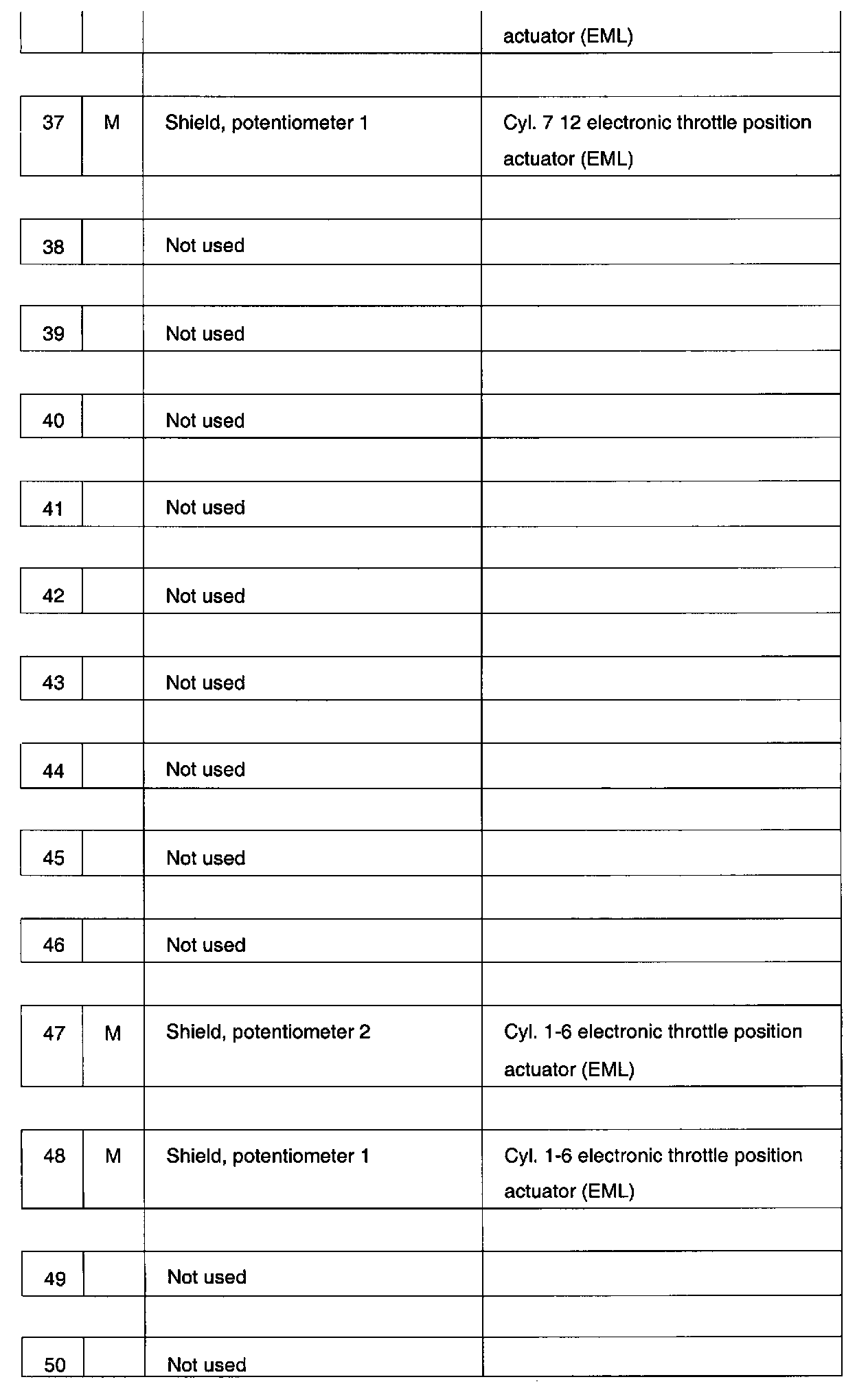

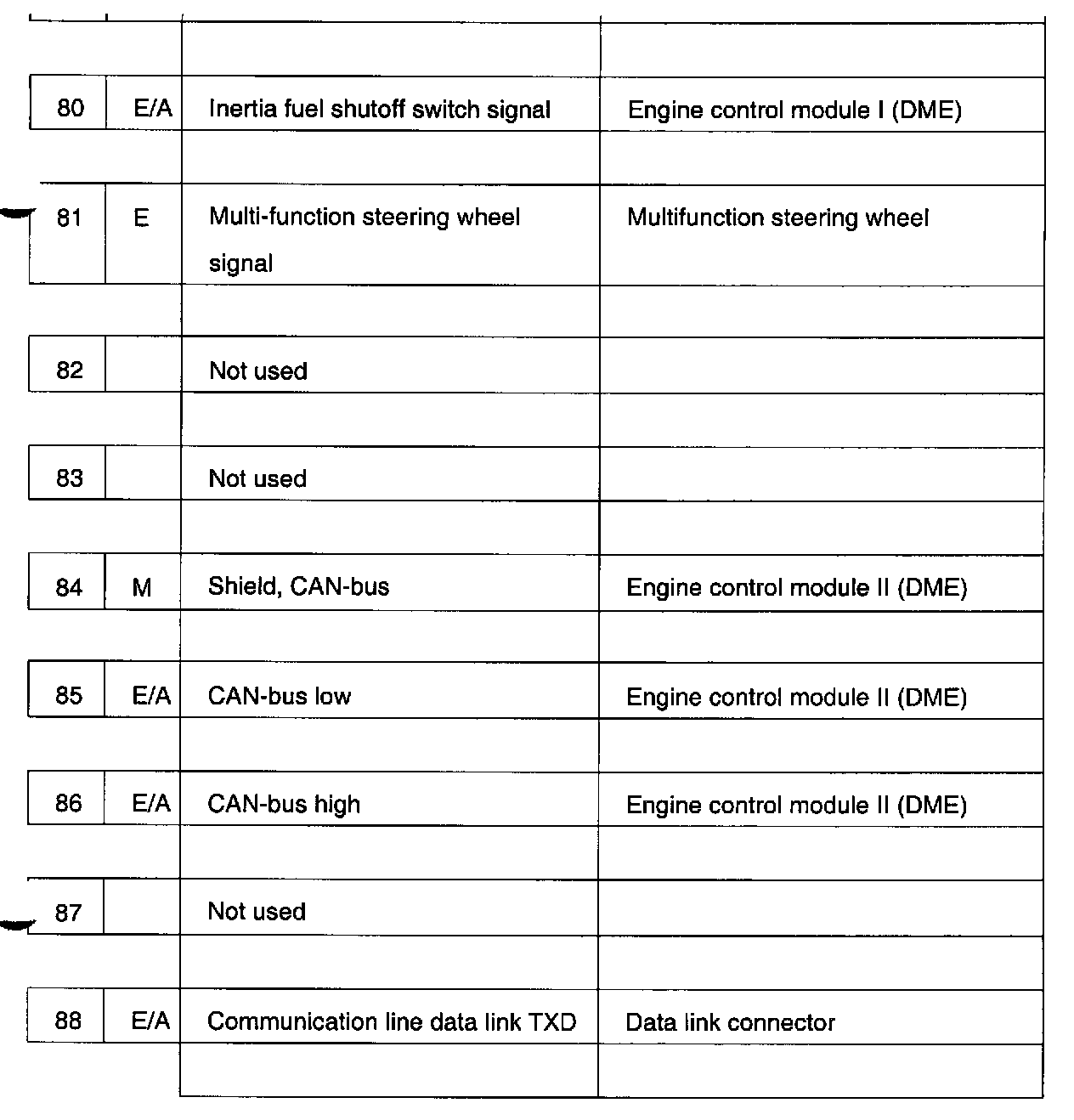

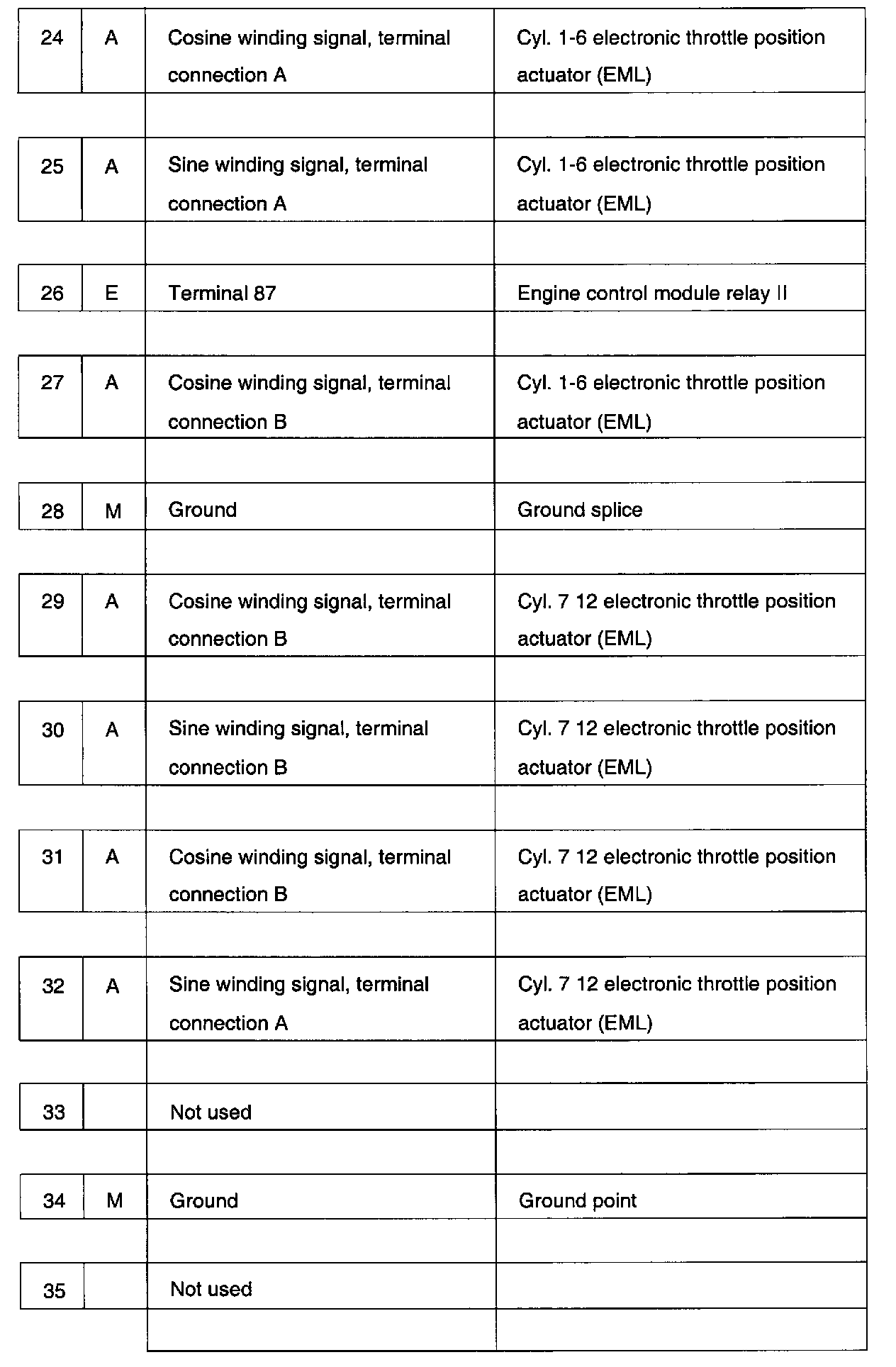

Pin assignments at connector X6004
