Home
>>
BMW
>>
1998
>>
750iL (E38) V12-5379cc 5.4L SOHC (M73)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module
>>
A65 ABS/DSC Control Module
>>
With DSC III 5.3 (83-Pin) from 9/97 to 3/98
With DSC III 5.3 (83-Pin) from 9/97 to 3/98

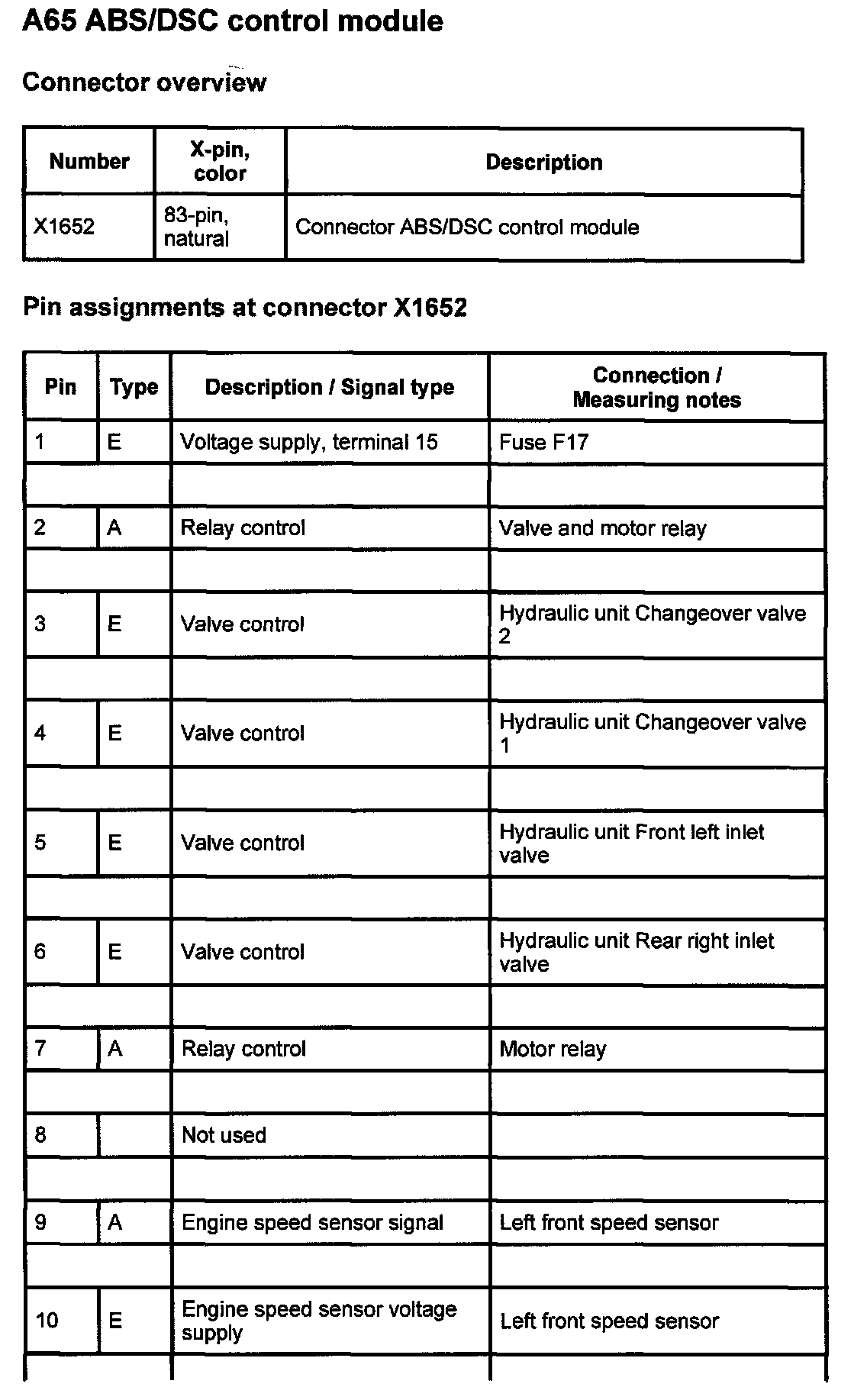

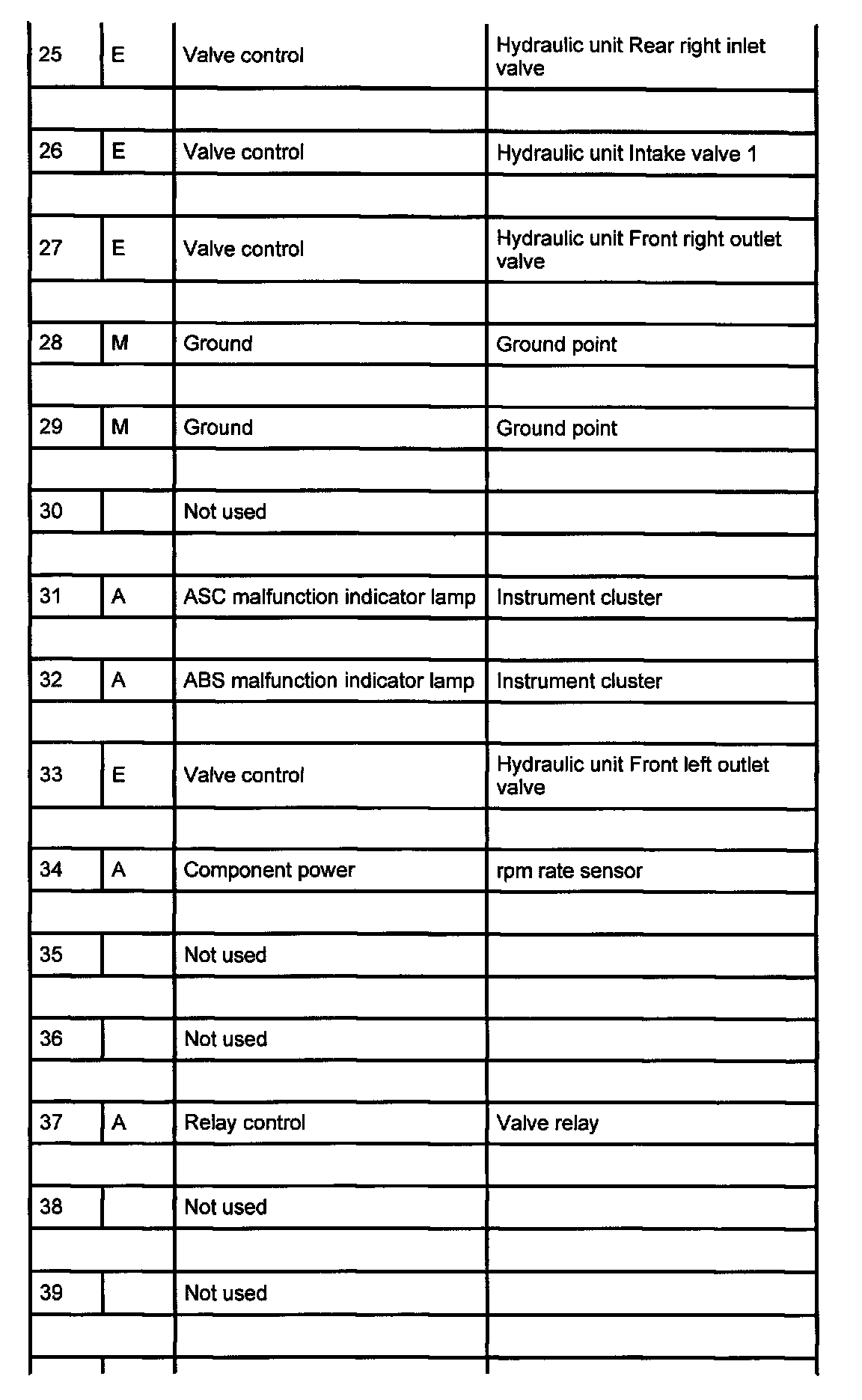

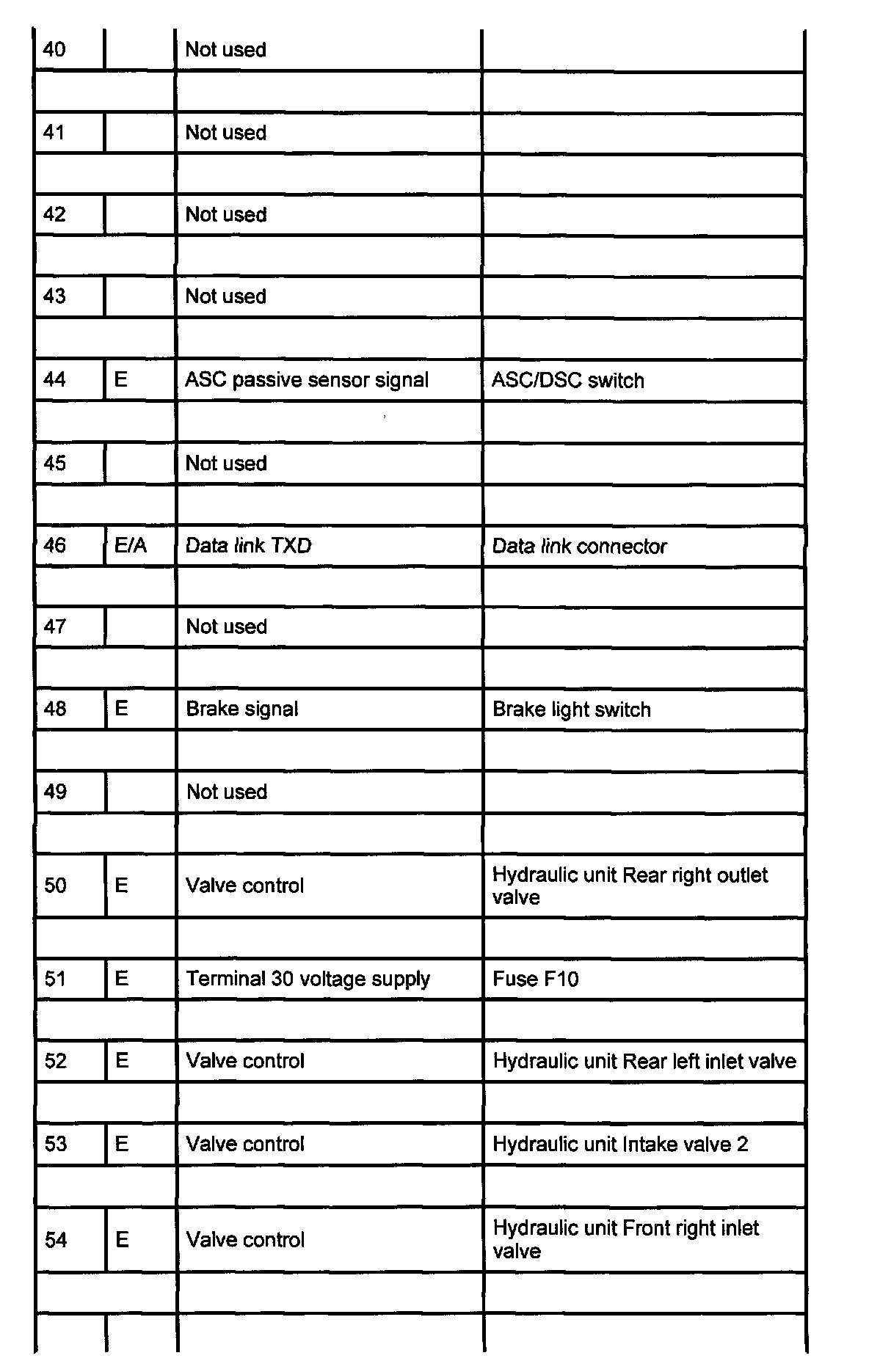

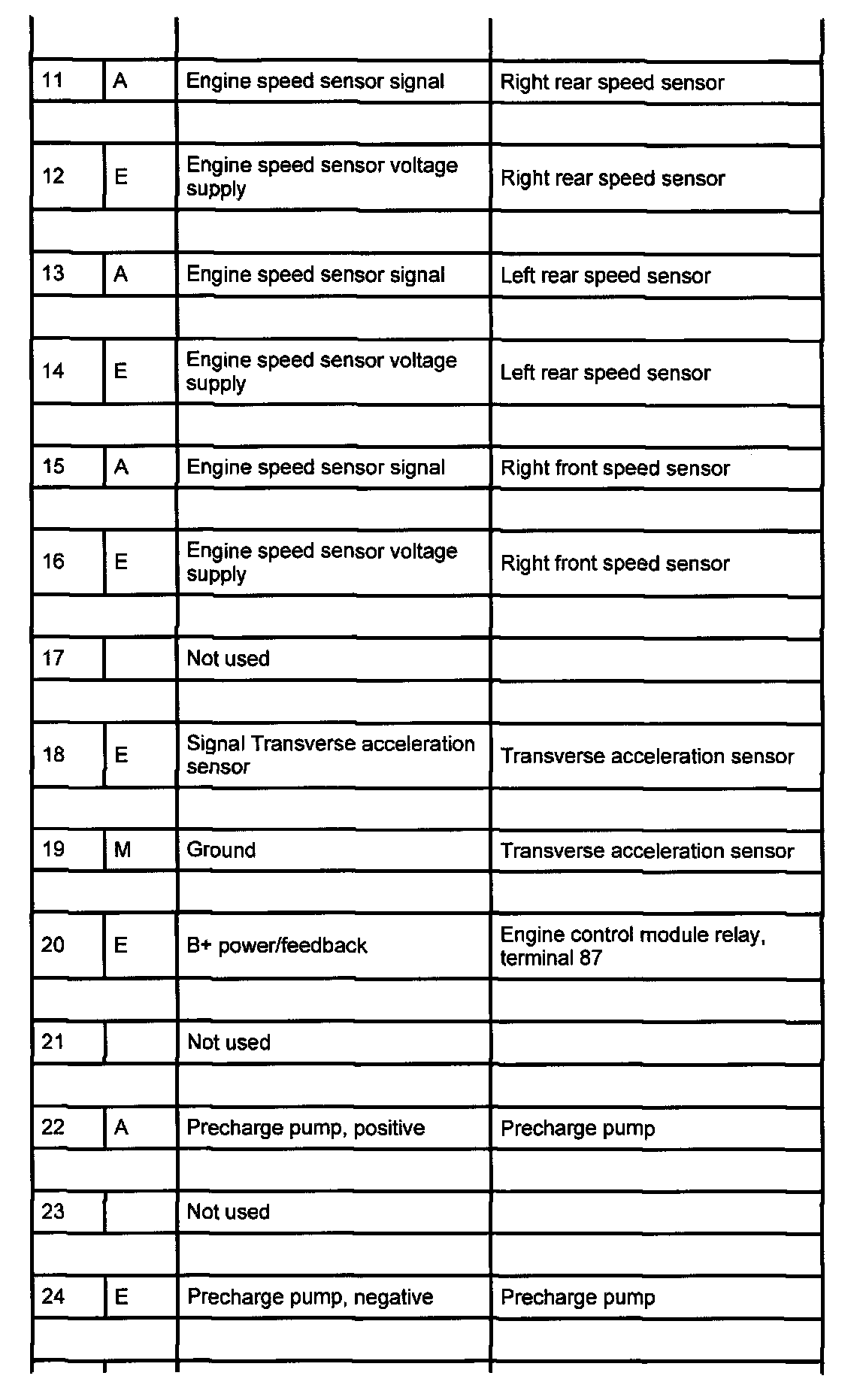

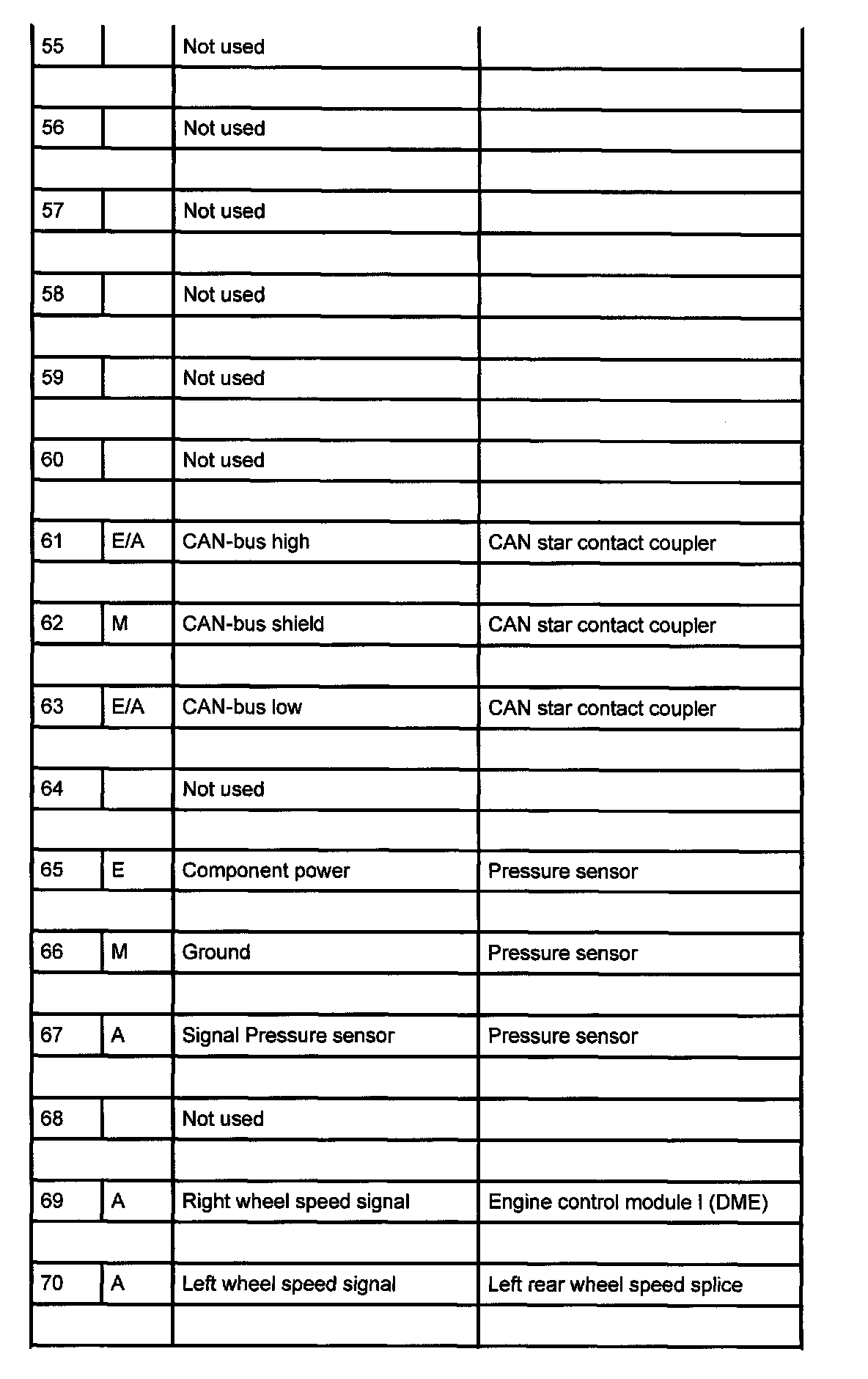

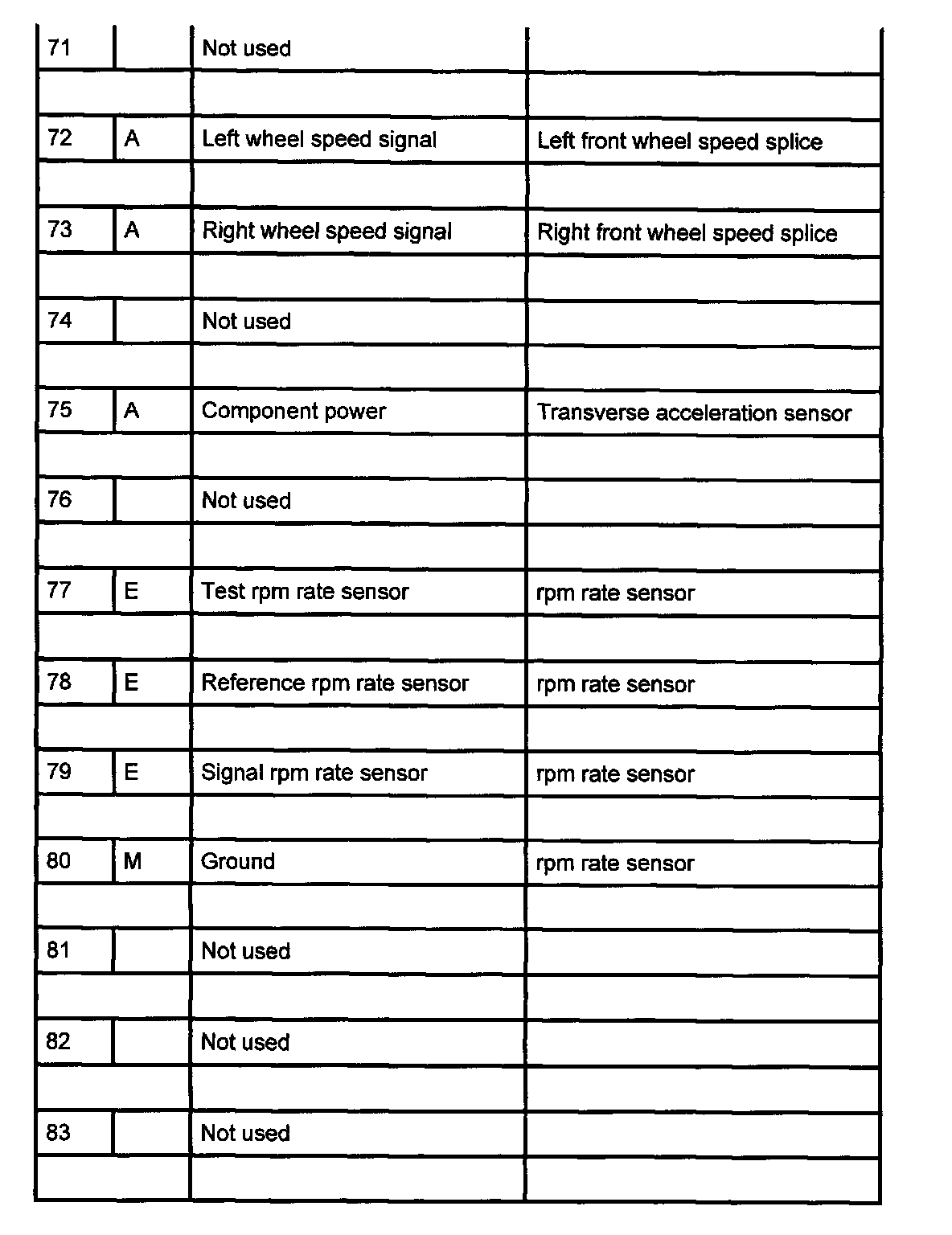

A65 ABS/DSC control module (83-pin)
(For M73 with DSC III 5.3 from 9/97 to 3/98)
