Leak Detection Pump: Locations

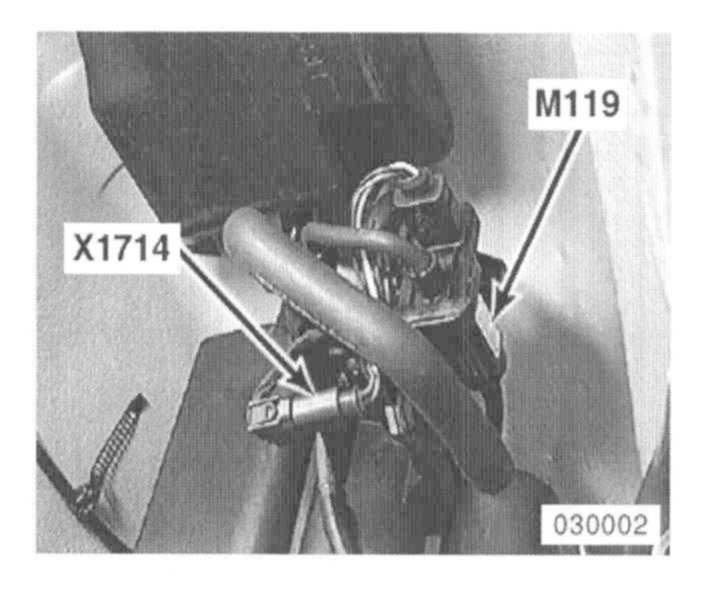

Component / Connector View: M119, X1714:

Component ID M119, Leakage Diagnosis Pump
Connector ID X1714, Connector (3 Pin, Natural)
Location Connector Strip Under Glove Box
