Shift Interlock Cable: Service and Repair

Removing and installing/replacing interlock cable

Caution! Check Interlock function after assembly.

Lift off shift lever cover and unfasten Interlock cable from shift tower.
Secure new Interlock cable on old cable with wire or similar material.

Installation:
Adjust interlock cable.
Remove lower left trim from instrument panel, knee protection and lower section of trim on steering column.

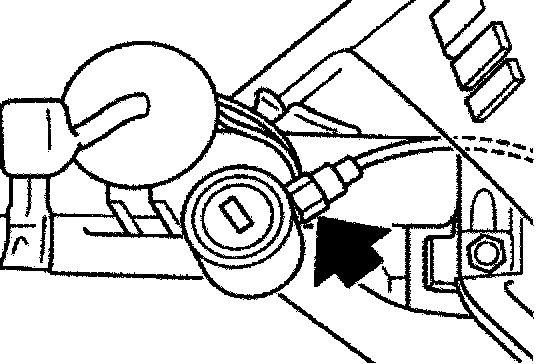

Unfasten Interlock cable on steering lock and remove, inserting new Interlock cable at the same time.
