BMW
>>
1998
>>
740i (E38) V8-4398cc 4.4L DOHC (M62)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Control System (DME)
>>

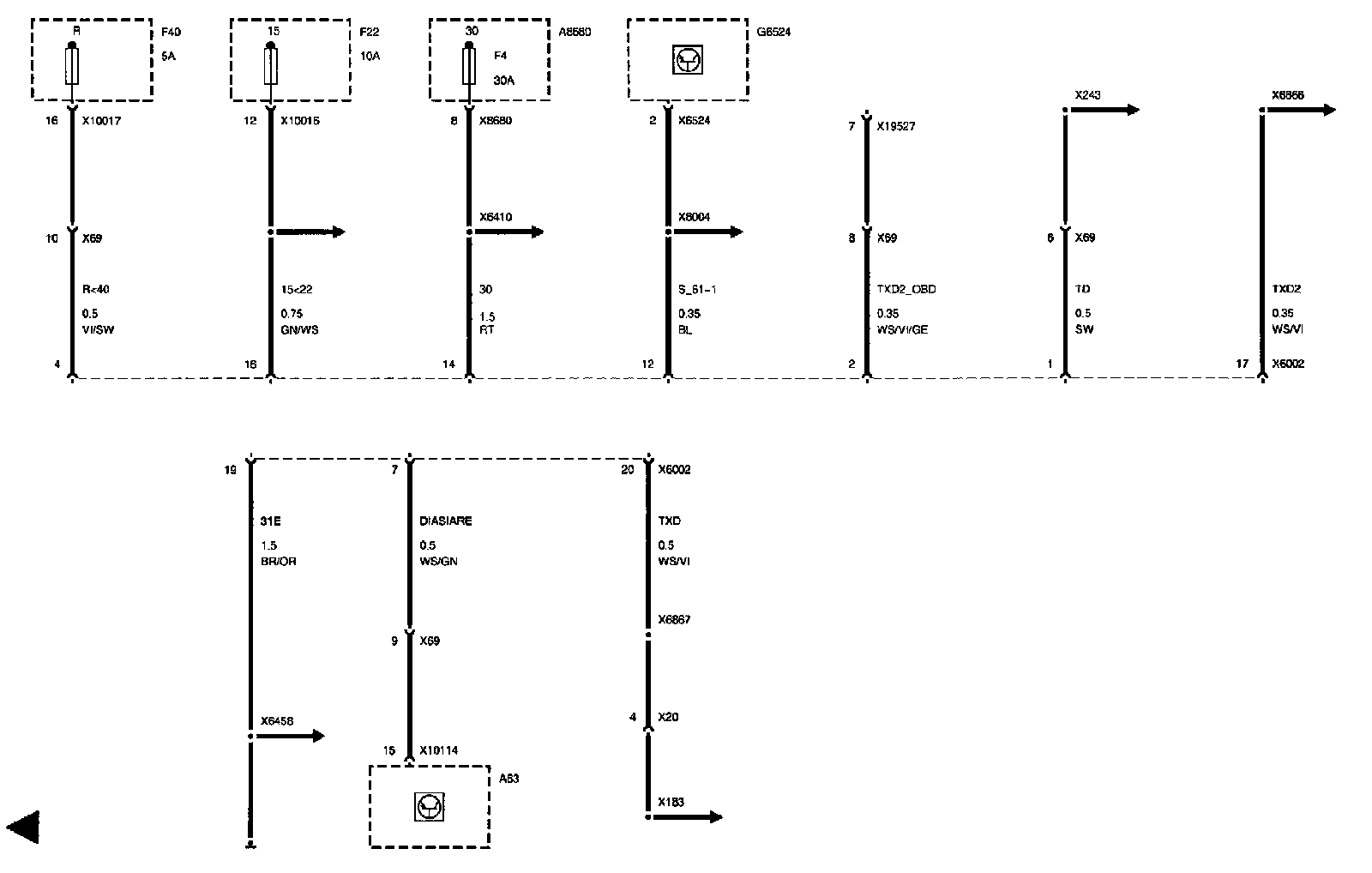

Data Link
Data Link
Data Link

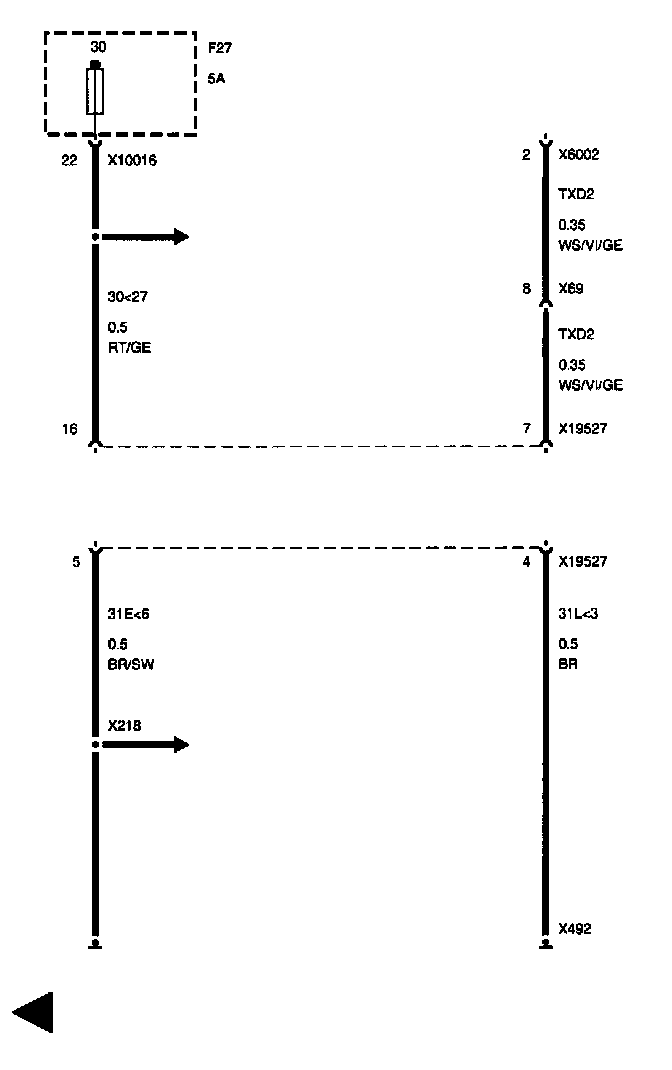

X6002 Diagnostic Connector:
OBDII Plug:
