BMW
>>
1998
>>
740i (E38) V8-4398cc 4.4L DOHC (M62)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
System Diagram
>>
Switch Block
>>
Without Memory
Without Memory

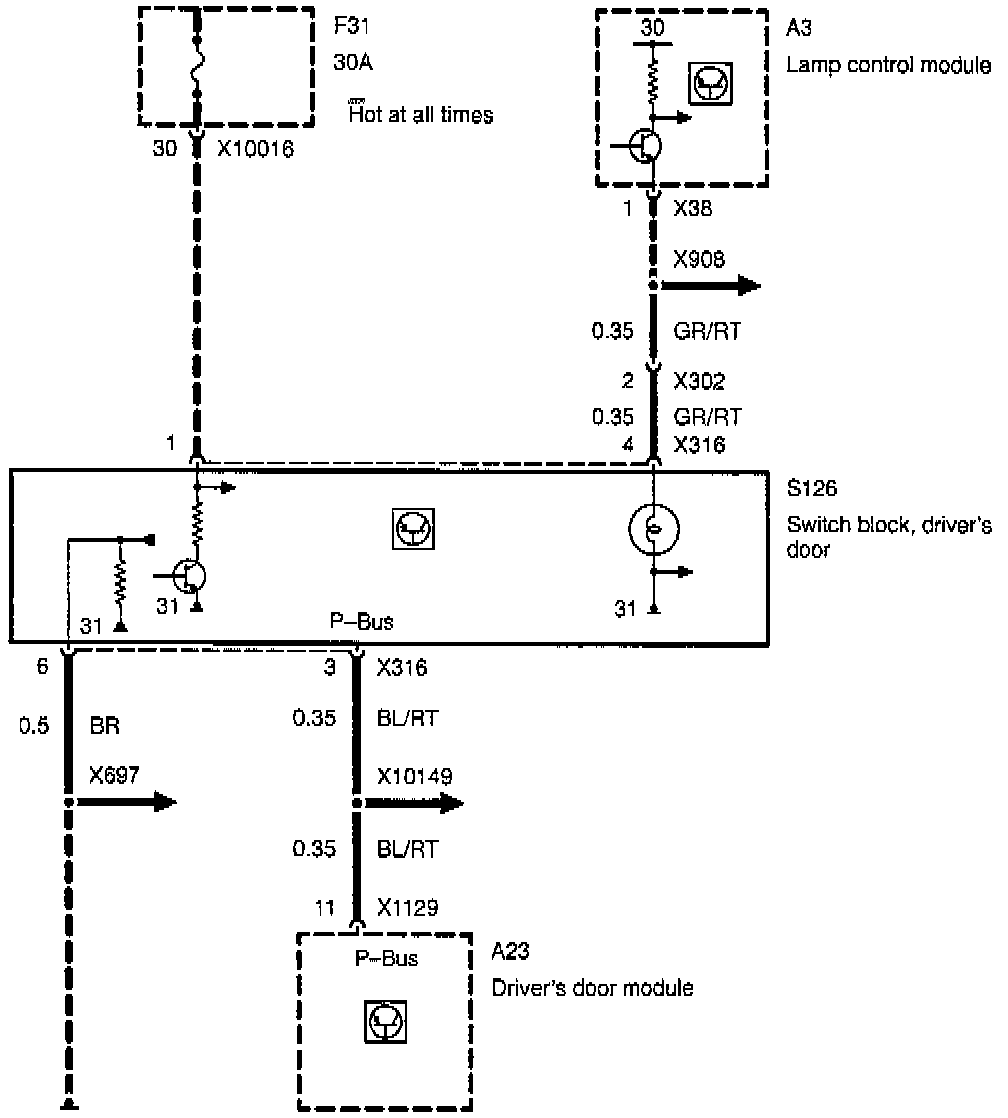

Power Windows (FH): Driver's Switch Block Without Memory:
