Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
BMW
>>
1998
>>
740i (E38) V8-4398cc 4.4L DOHC (M62)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Navigation System
>>
Navigation/Magnetic Field Sensor (Interface)
Navigation/Magnetic Field Sensor (Interface)

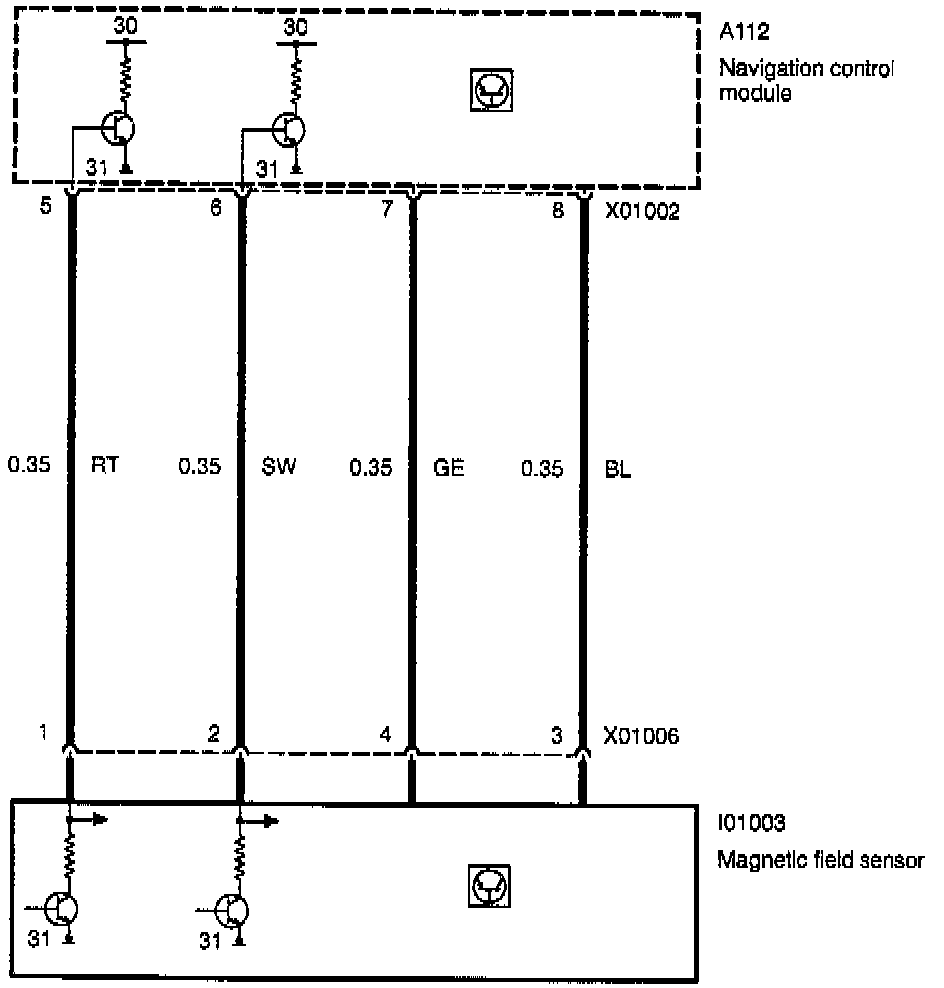

Navigation System: Navigation/Magnetic Field Sensor (Interface):
