BMW
>>
1998
>>
740i (E38) V8-4398cc 4.4L DOHC (M62)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Driver/Vehicle Information Display
>>
On-Board Monitor
>>
Interface, on-Board Monitor/Video Module
Interface, on-Board Monitor/Video Module

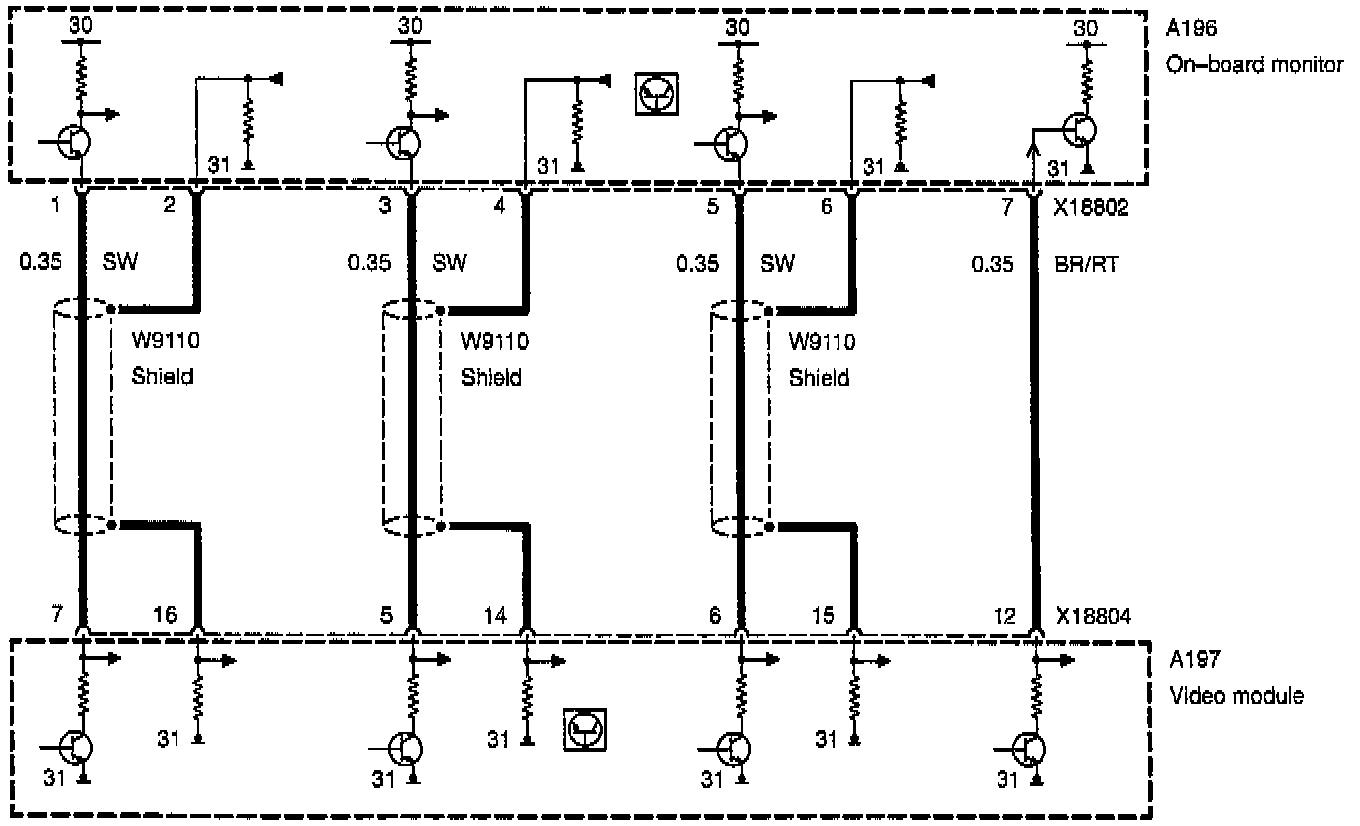

On-board Monitor: Interface, On-board Monitor/Video Module:
