Cruise Control Servo Cable: Service and Repair

Removing And Installing Or Replacing Bowden Cable For Cruise Control

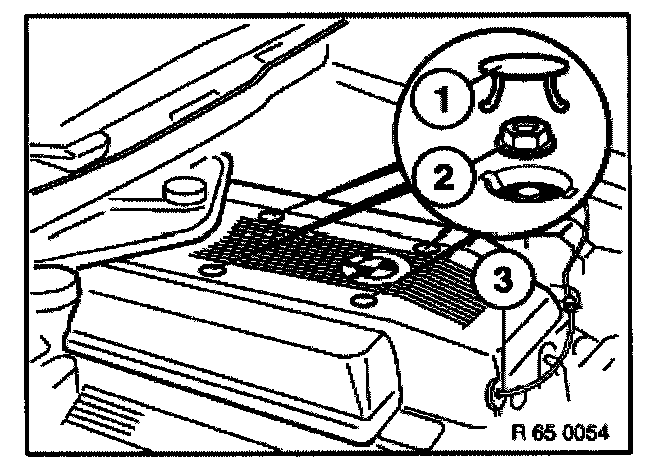

Remove end caps (1), release nuts (2). Remove covering for cylinder head cover.

Installation:
Press Bowden cable with rubber grommet (3) into cutout on cylinder head cover.

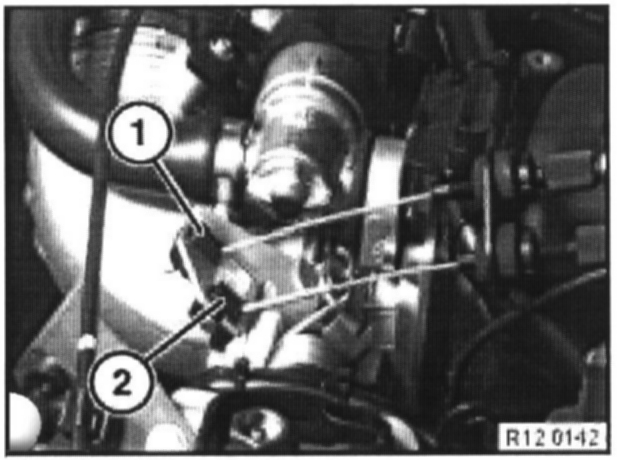

Apply full throttle at throttle lever and detach throttle control cable (2) at throttle valve.

Installation:
Adjust Bowden cable.

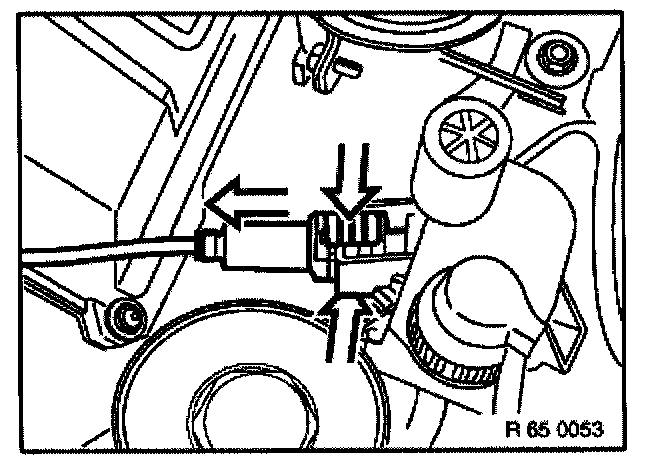

Press together top and bottom clips and remove guide sleeve. Detach throttle control cable at actuator motor.
