Other Inputs and Outputs

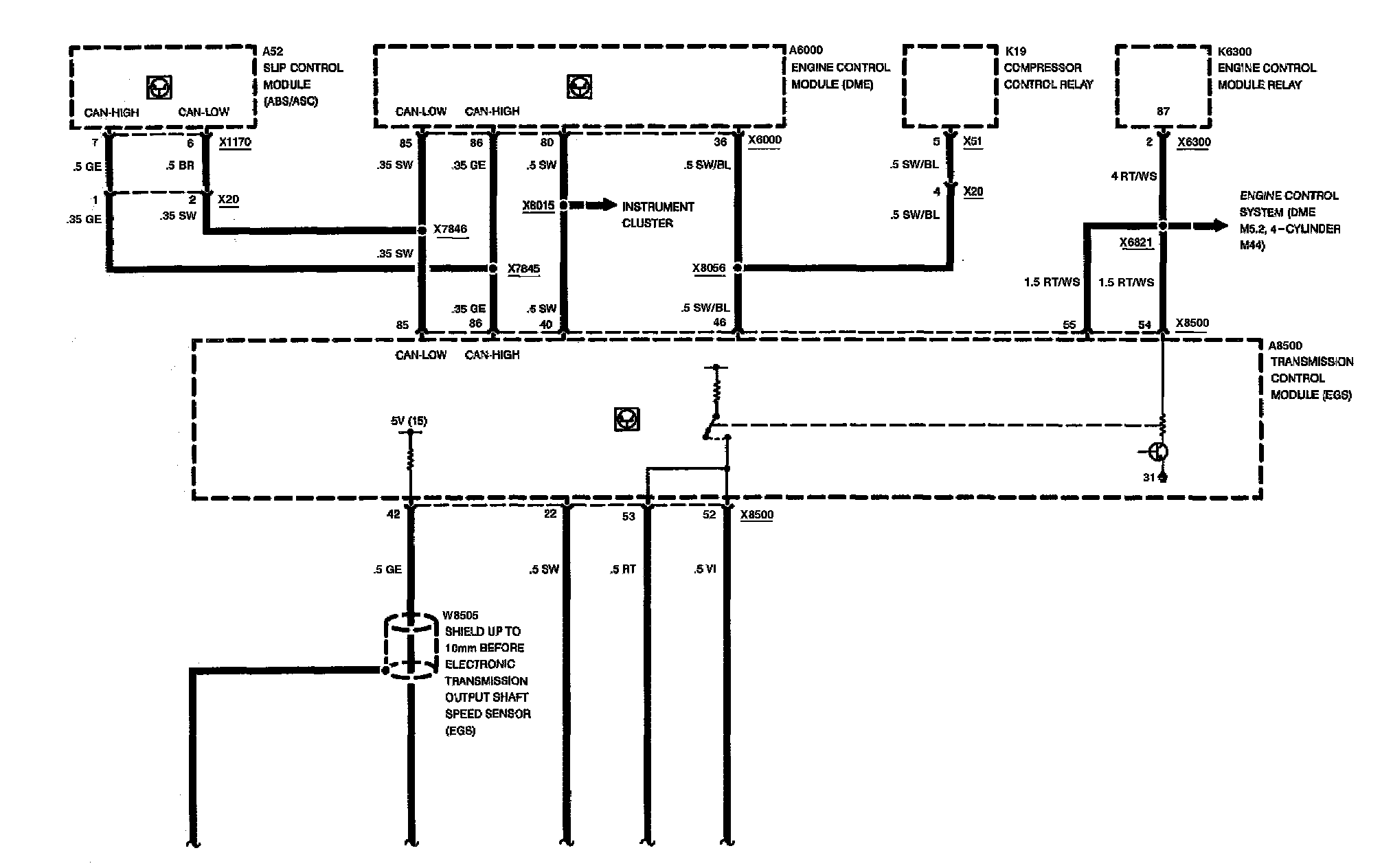

Electronic Transmission Control (EGS A4S 310R): Other Inputs And Outputs (Part 1 Of 2):

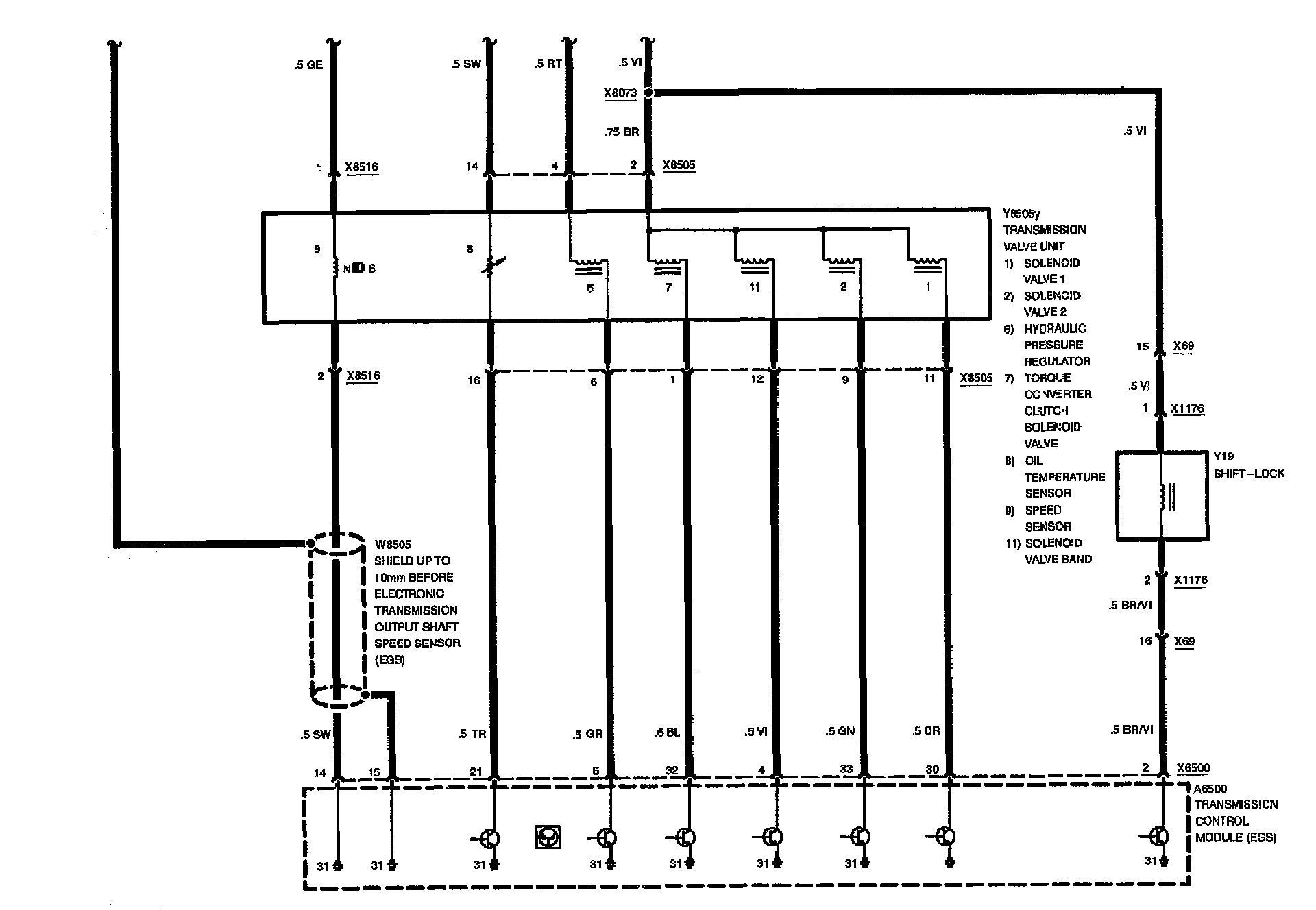

Electronic Transmission Control (EGS A4S 310R): Other Inputs And Outputs (Part 2 Of 2):
