Home
>>
BMW
>>
1998
>>
318ti (E36/5) L4-1895cc 1.9L DOHC (M44)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Block Diagram
Block Diagram

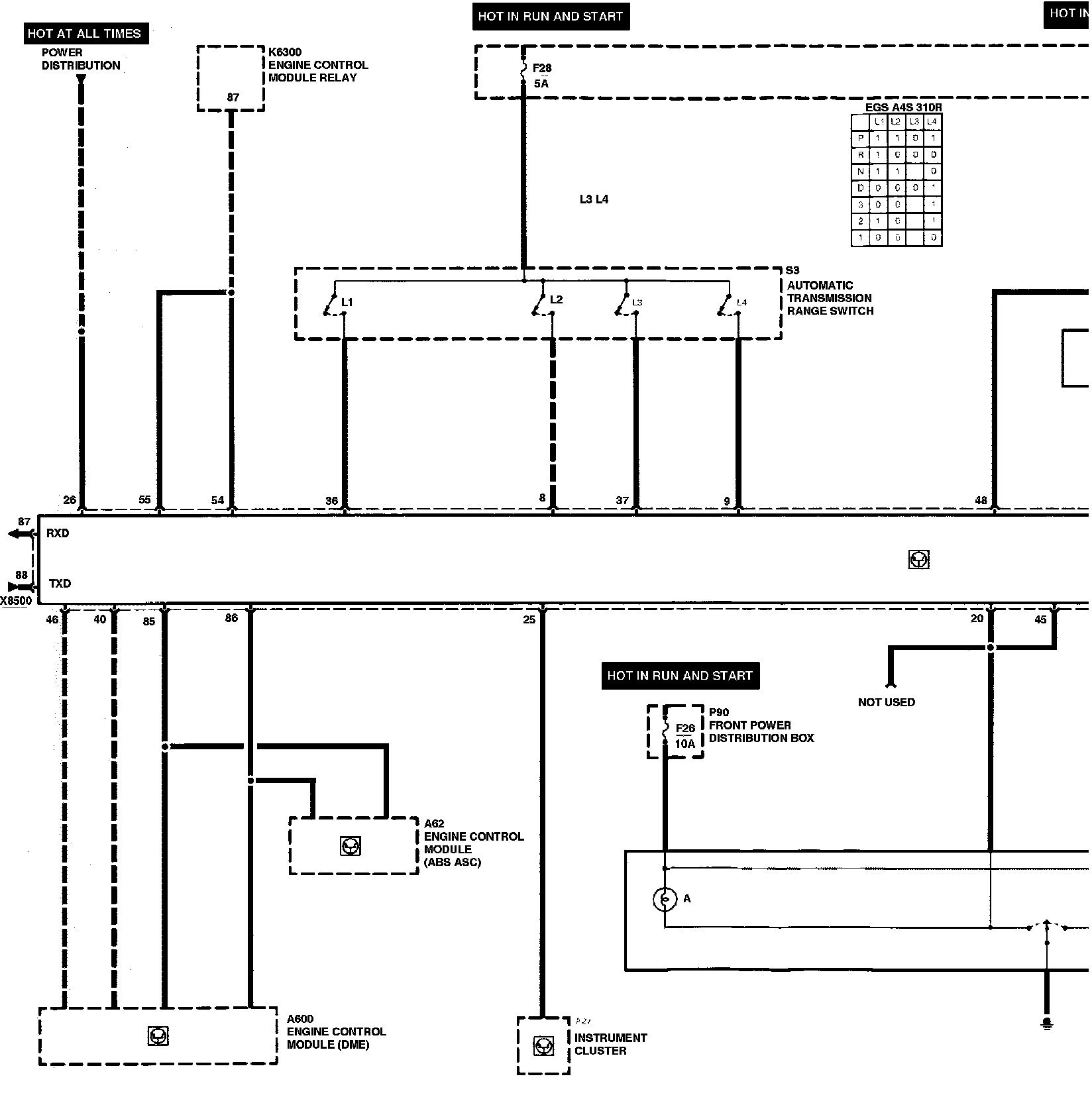

P8! WS! Electronic Transmission Control (EGS A4S 310R): Block Diagram:
