318ti (E36/5) L4-1895cc 1.9L DOHC (M44)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Connector Views
Connector Views

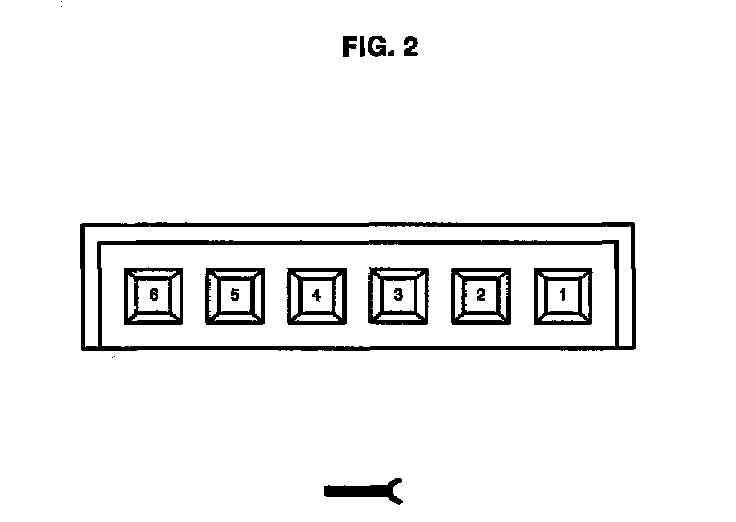

Connector View:
11250:
Connector (6 Pins Black)

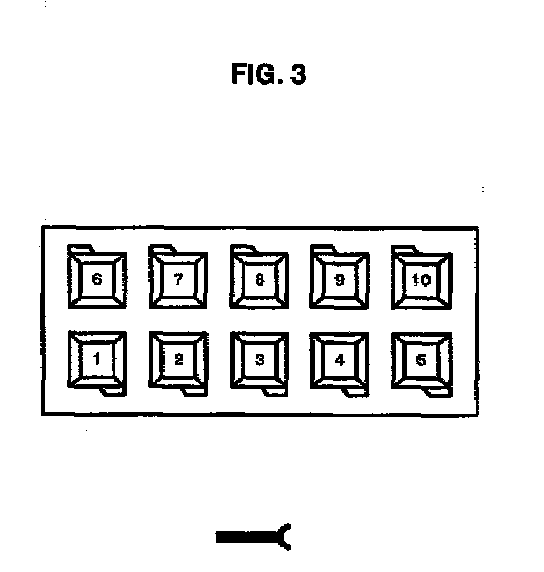

Connector View:
13274:
Connector (10 Pins Black)

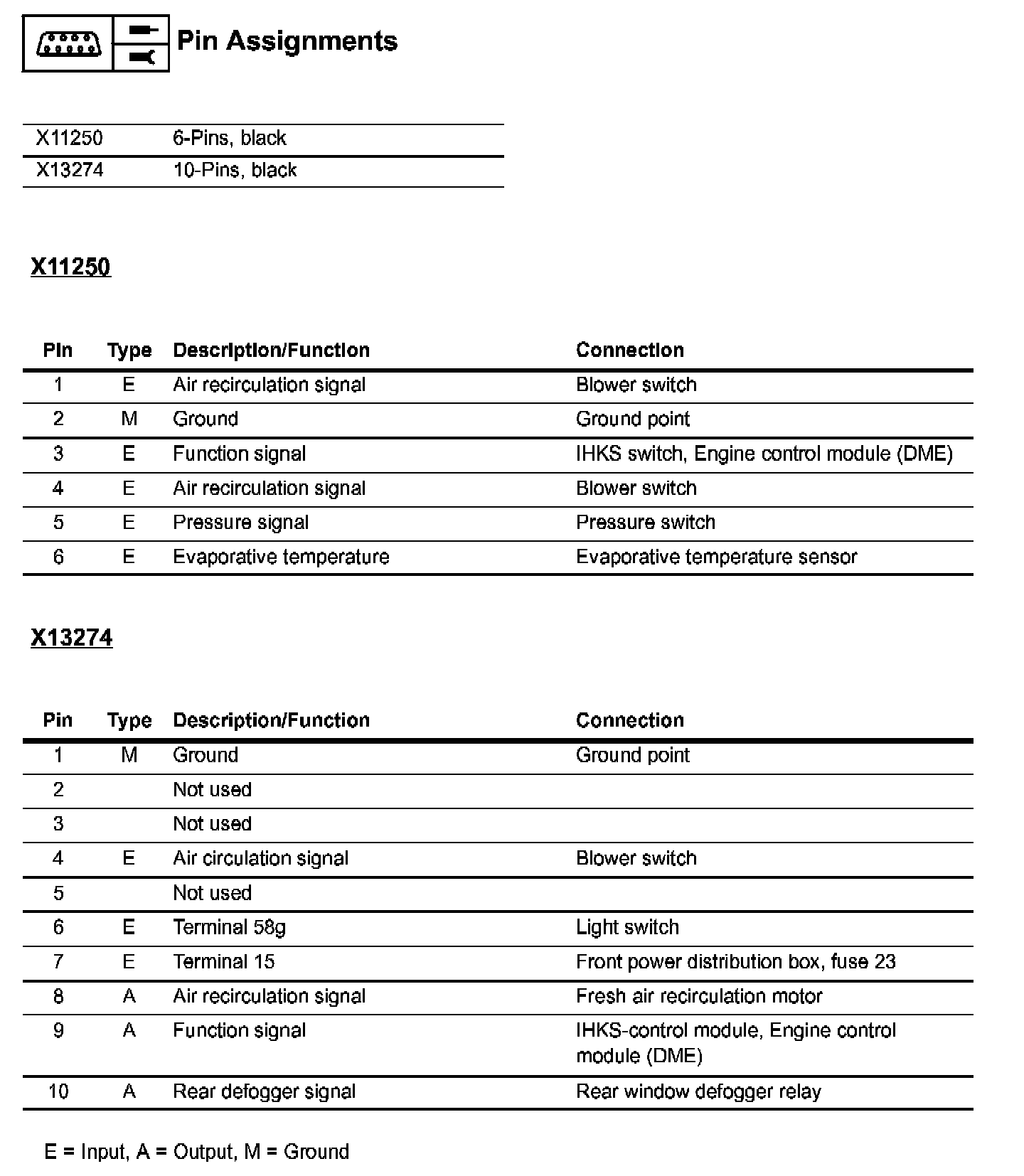

Pin Assignments
