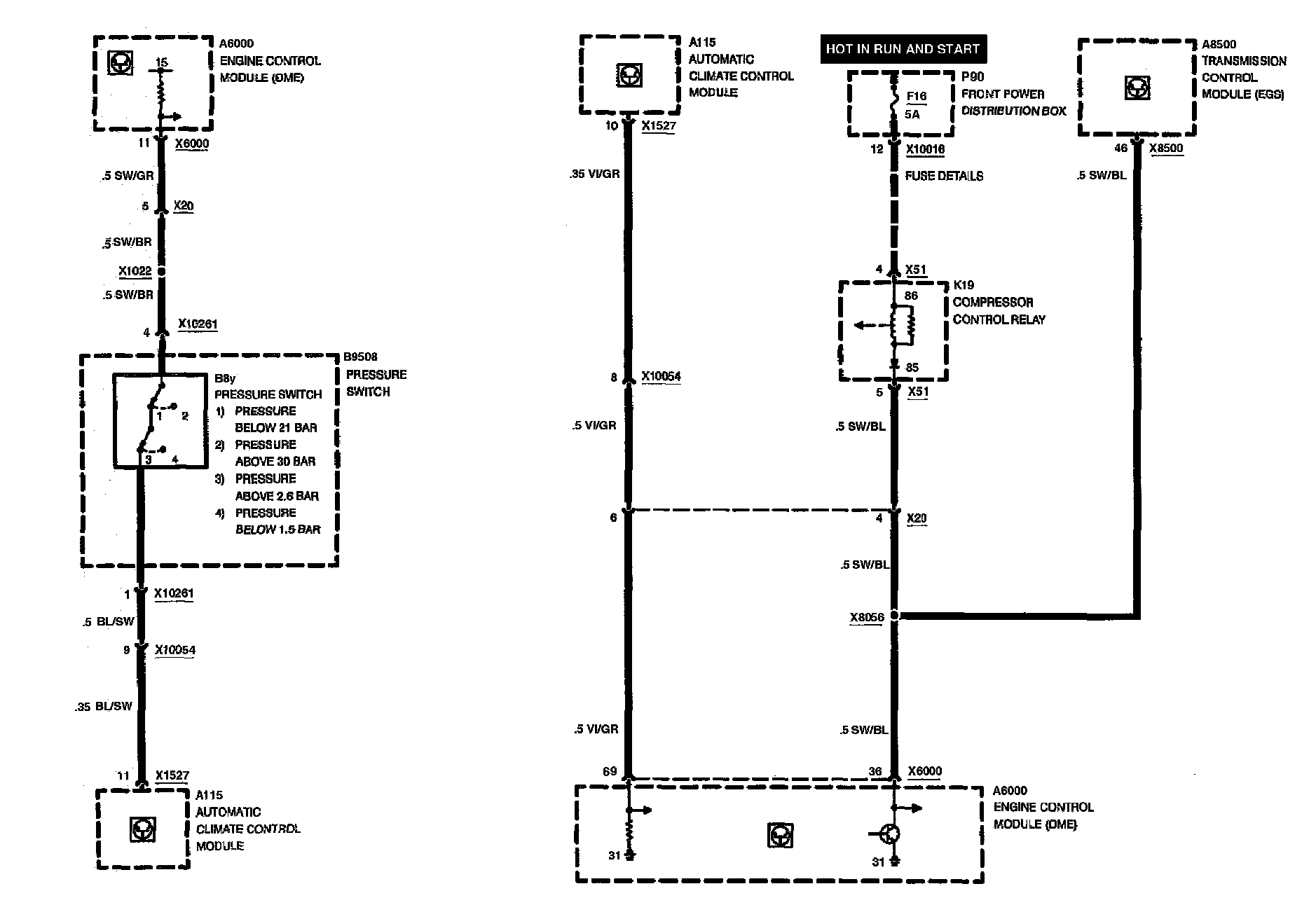

Pressure Switch and Compressor Control Relay
Pressure Switch and Compressor Control Relay
Engine Control System: Pressure Switch And Compressor Control Relay:
