BMW
>>
1998
>>
318i (E36) L4-1895cc 1.9L DOHC (M44)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Data Link Connector, Pin 19
Data Link Connector, Pin 19

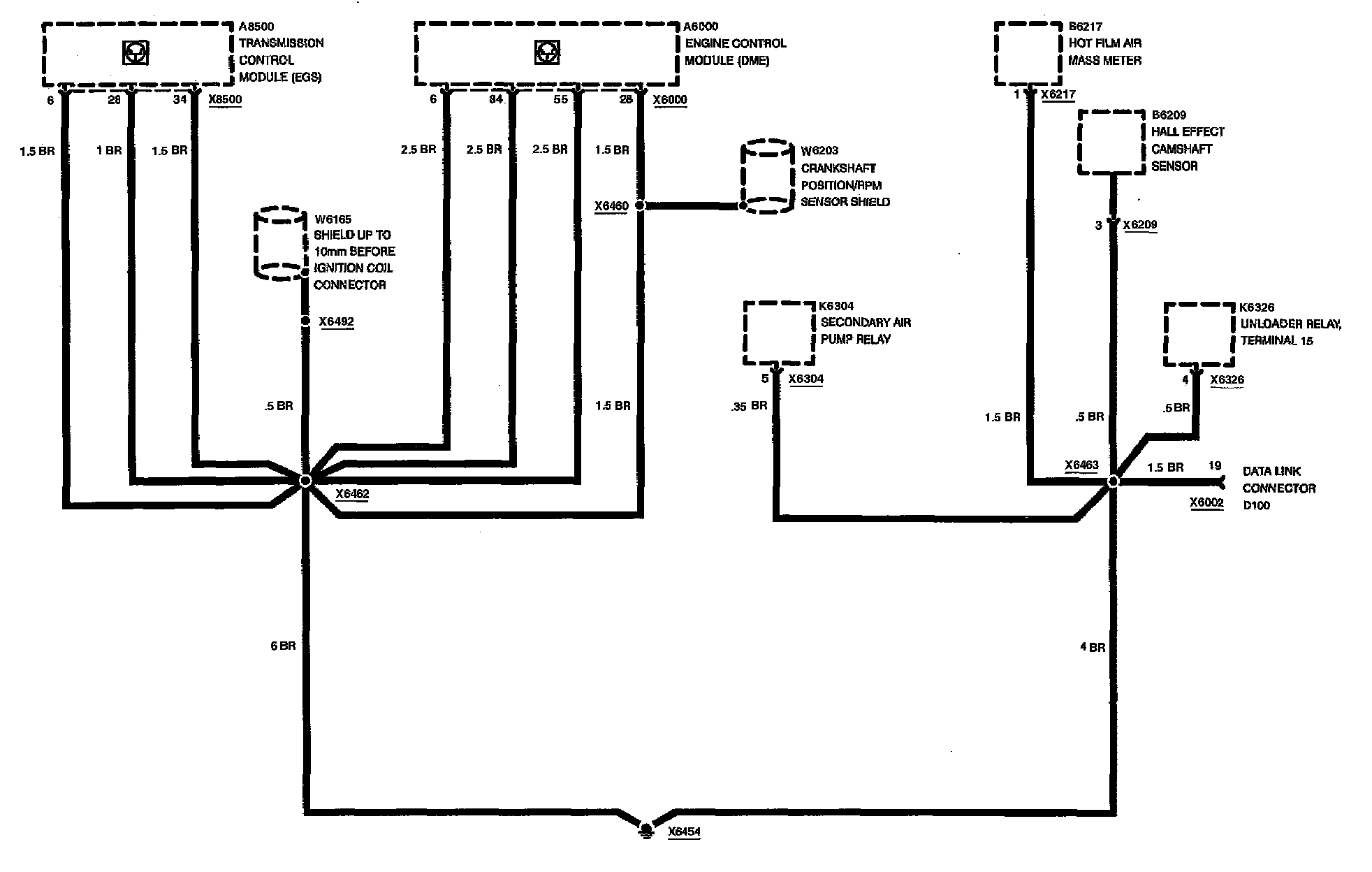

Data Link: Data Link Connector Pin, 19 (Part 2 Of 2):
