Oil Filter: Service and Repair

Removing and Installing,

Sealing or Replacing Main Flow Oil Filter (S50)

Remove manifold for intake air.

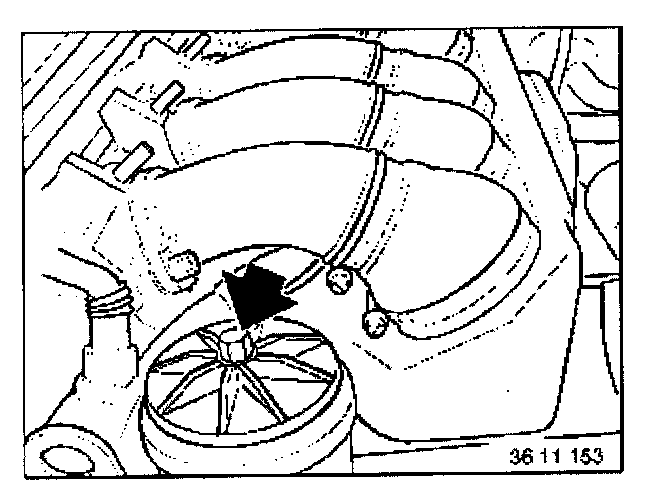

Unfasten main flow oil filter cover - engine oil now flows back into oil pan.


Installation note:
Tightening torque, 33 Nm (24 ft lb)






Installation note:
Replace sealing rings.

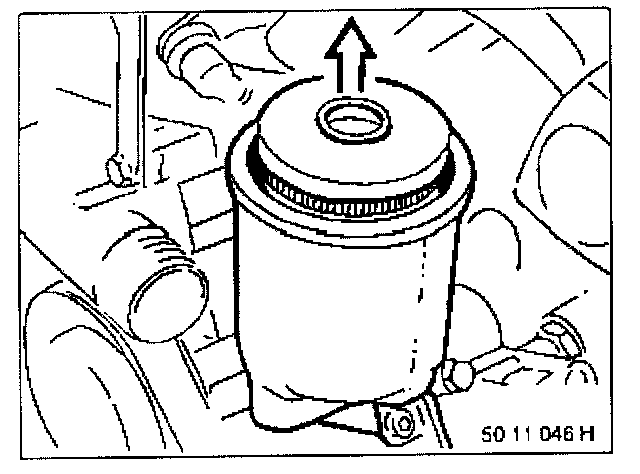

Remove oil filter insert.
