BMW
>>
1995
>>
M3 (E36) L6-2990cc 3.0L DOHC (S50)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Other Inputs & Outputs
Other Inputs & Outputs

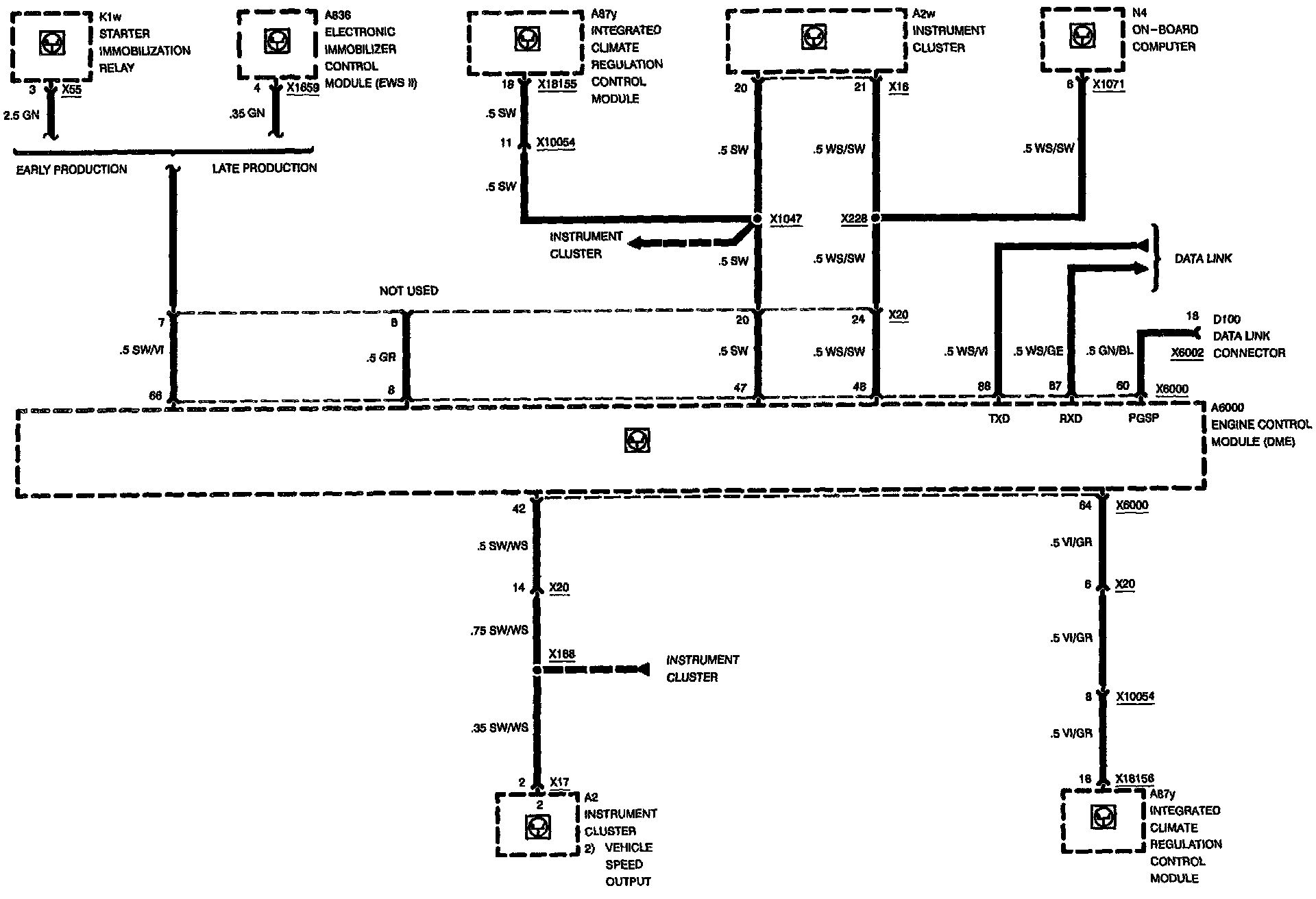

Engine Control System: Other Inputs & Outputs:
