M3 (E36) L6-2990cc 3.0L DOHC (S50)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Central Control Module
>>

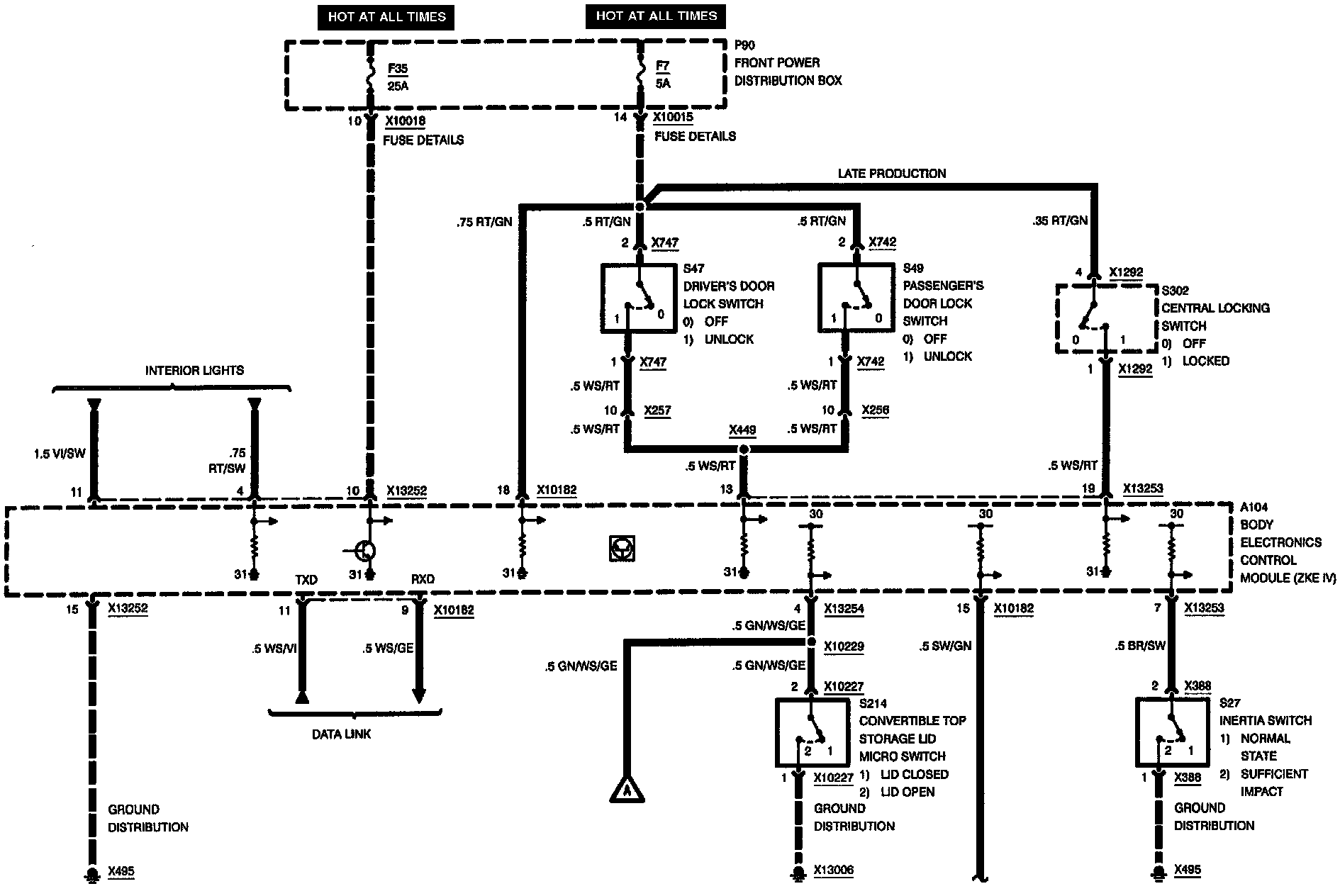

ZKE Central Locking (ZV)
>>
Output Details
Output Details

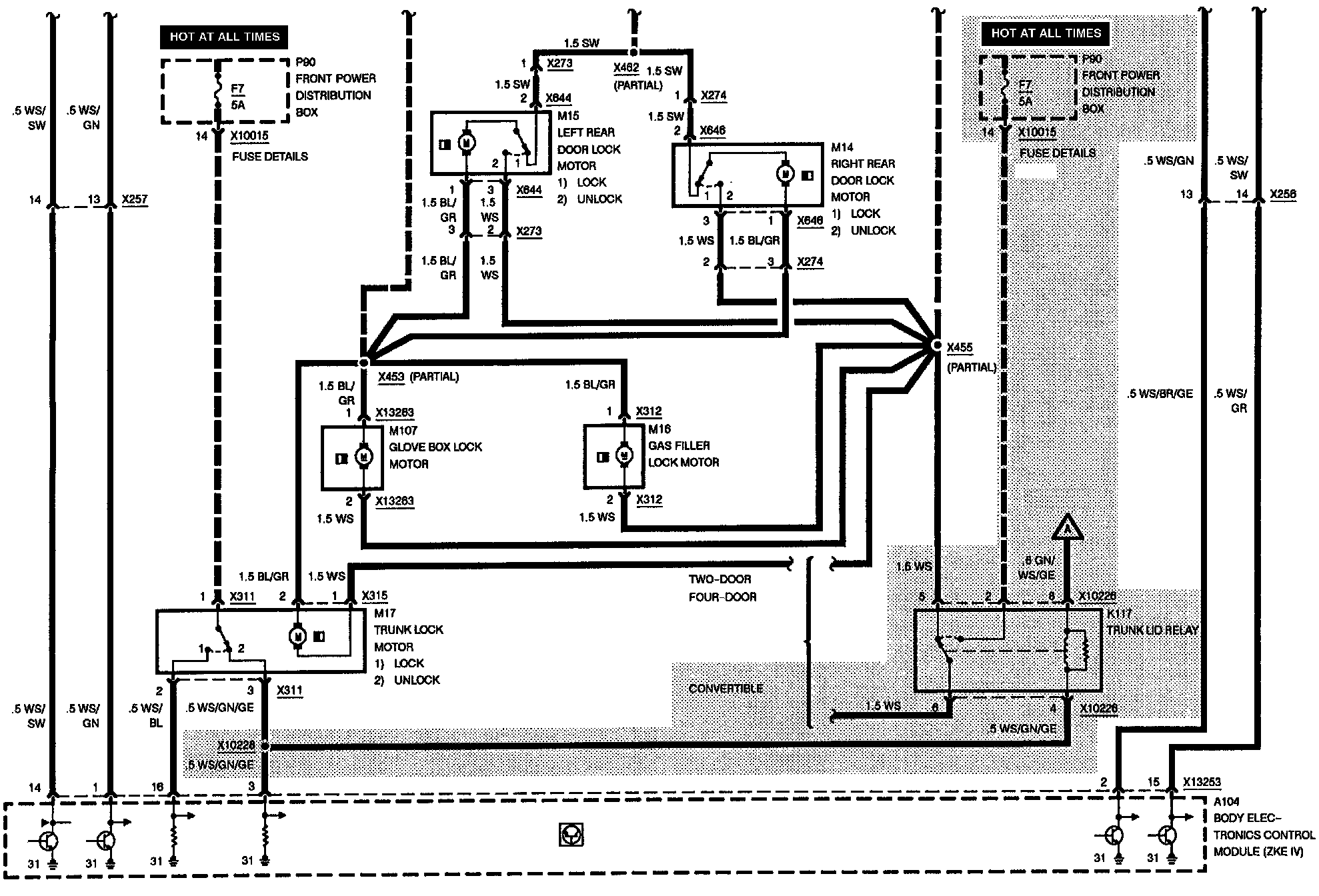

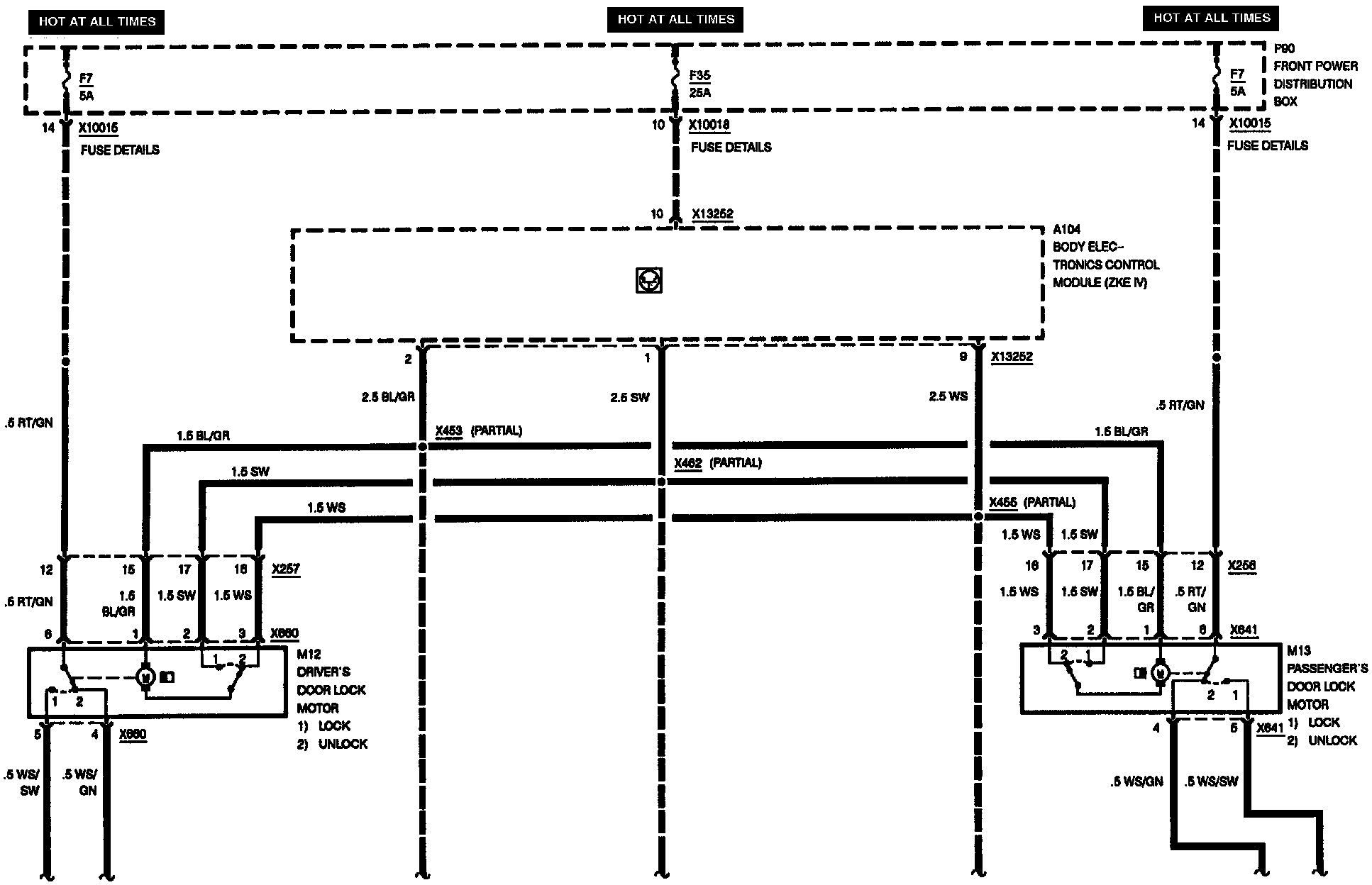

ZKE Central Locking (ZV) : Outside Details:
ZKE Central Locking (ZV) : Outside Details:
ZKE Central Locking (ZV) : Outside Details:
