Home
>>
BMW
>>
1995
>>
M3 (E36) L6-2990cc 3.0L DOHC (S50)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Anti-Theft System (Alpine)
>>
Sub-System Diagrams
Sub-System Diagrams

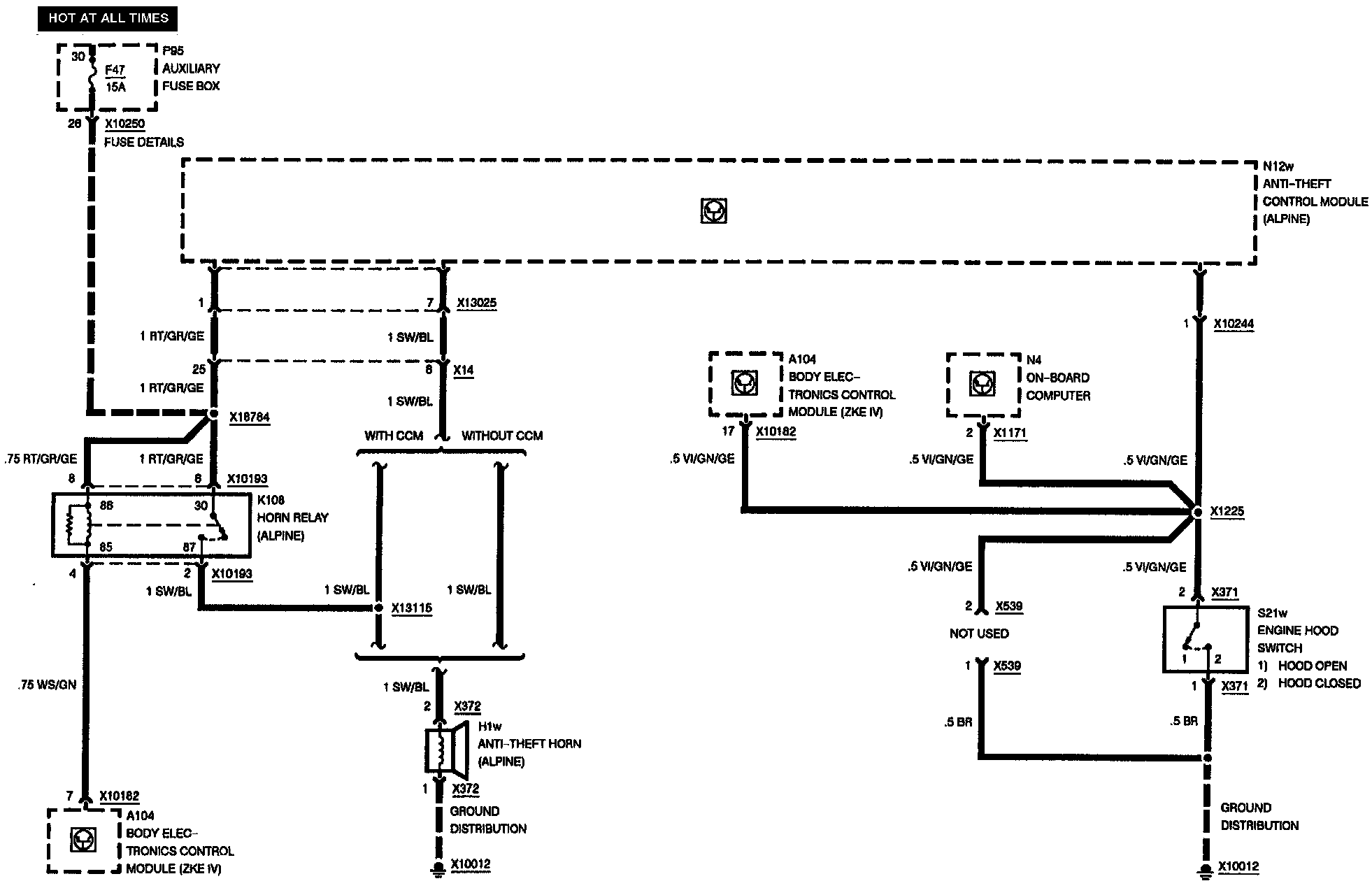

Anti-Theft System (Alpine):

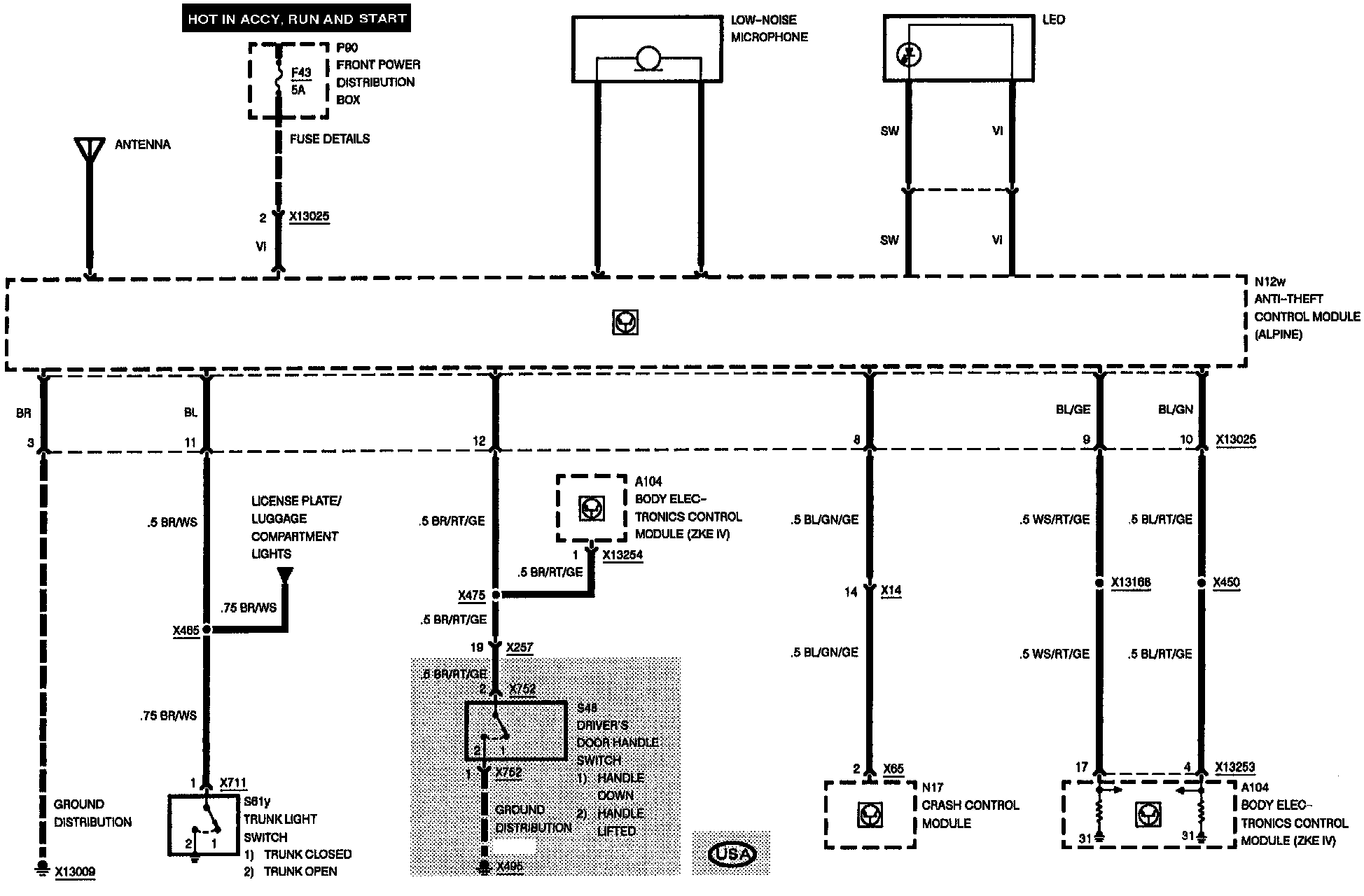

Anti-Theft System (Alpine):
