Ignition Coil: Service and Repair

- Switch off ignition.

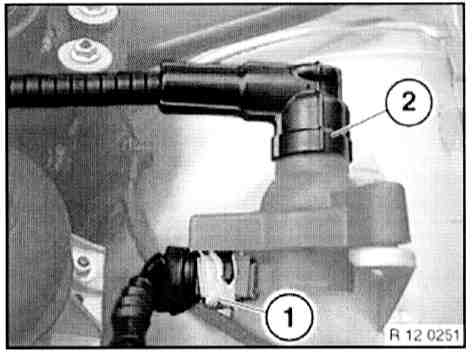

- Disconnect connections on left ignition coil (1 and 2).

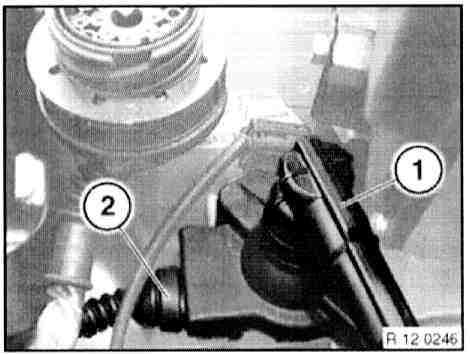

- Disconnect connections on right ignition coil (1 and 2).

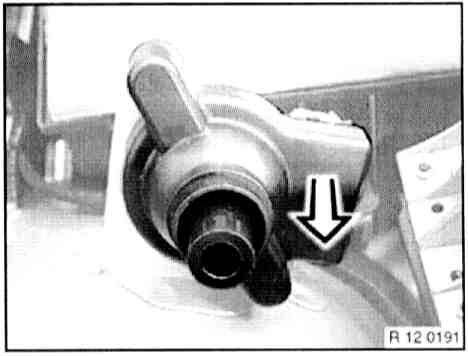

- Remove sealing cap.

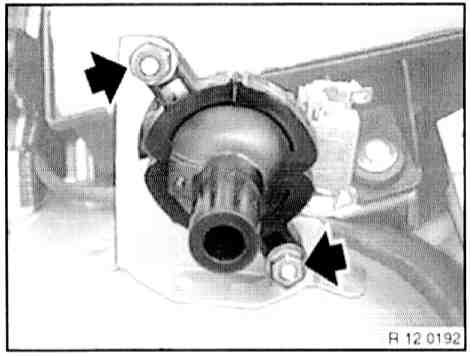

- Unscrew nuts.
- Interrogate fault memory of control unit on Digital Motor Electronics (DME), check fault messages in memory, rectify faults and cancel fault memory.
