Replacing All Right Ignition Leads

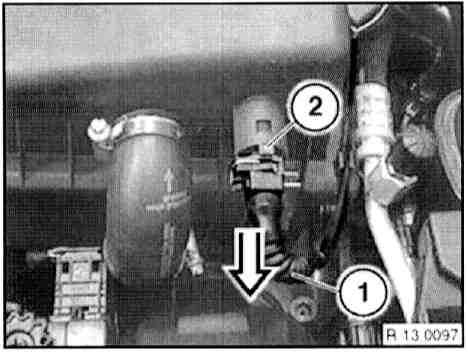

- Press interlock (2) and remove connector (1).

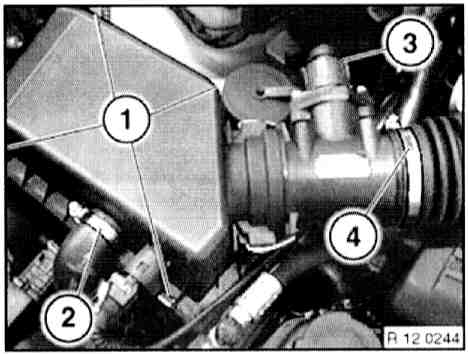

- Open clips (1).
- Unfasten hose clip (2) from intake hose for air pump.
- - Remove hose.
- Disconnect plug-in connection (3).
- Release hose clamp (4), withdraw hose.
- Remove upper section of suction filter housing style with mass air flow sensor.




- Unclip diagnosis connector from bracket.




- Unfasten screw connection for ignition wiring harness (1) from manifold.
- Remove spark-plug connectors.




- Unfasten cable tie on protective cap for distributor cap.
- Unfasten clips (1 to 3) and remove protective cap from distributor cap.




- Note sequence of ignition leads on the distributor cap and remove these from distributor cap.

Installation Note: When fining ignition leads, note firing order.

Firing Order: [1] 1-7-5-11-3-9-6-12-2-8-4-10
________________________
[1]: Right Forward cylinder = #1
