Replacing All Left Ignition Leads

- Switch off ignition

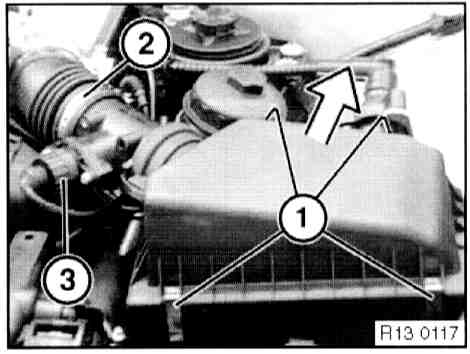

- Open clips (1).
- Unfasten hose clip (2).
- Disconnect plug-in connection (3).
- Remove upper section of suction filter housing with mass air flow sensor.

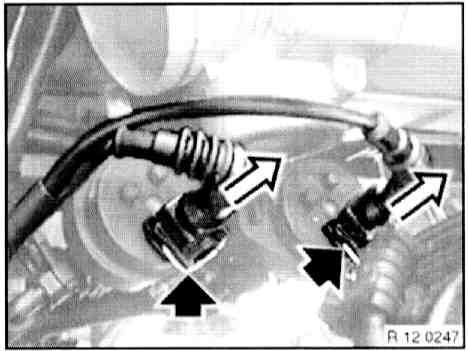

- Designate plug connections on tank vent valve and cut through.

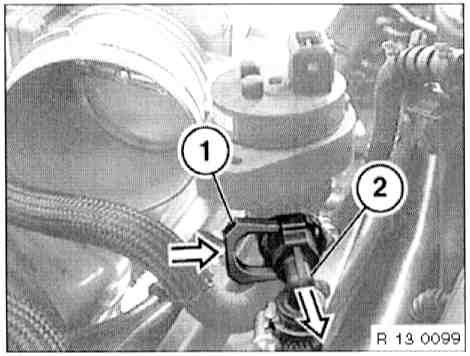

- Open quick release connections on hoses for tank vent valve. Press down interlock (1) and remove hose (2). Remove both tank vent valves from bracket.

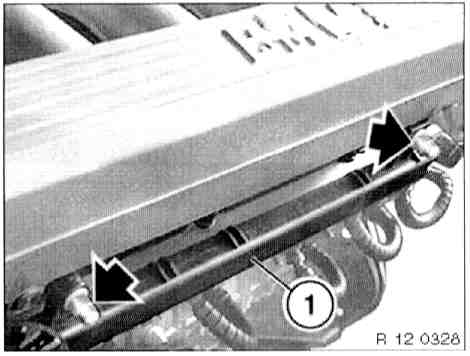

- Unfasten screw connection of ignition wiring harness on manifold.
- Remove spark-plug connectors.




- Unfasten cable connector on protective cap of distributor cap.

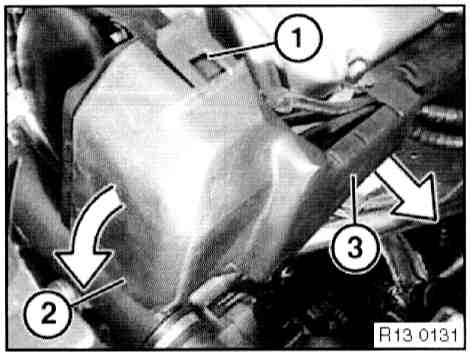

- Unfasten clips (1 to 3) and remove protective cap for distributor cap.




- Note sequence of ignition leads on the distributor cap and remove the distributor cap.

Installation NOTE: When fitting ignition leads, note firing order.

Firing Order: [1] 1-7-5-11-3-9-6-12-2-8-4-10
______________________
[1]: Right Forward cylinder = #1
