Ignition Rotor: Service and Repair

- Switch off ignition.

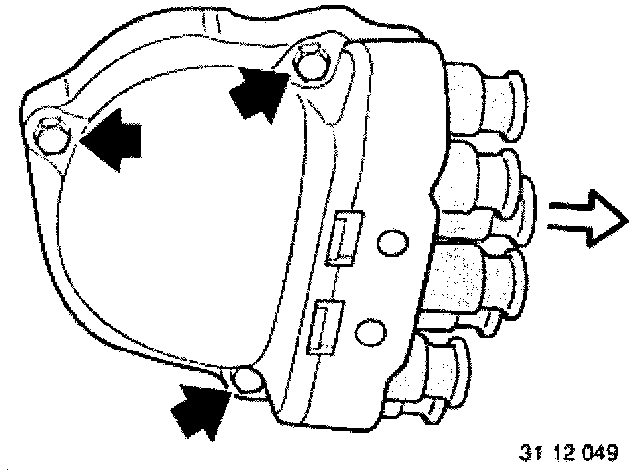

- Remove distributor cap.
- If necessary, remove screenwash container.

CAUTION: Risk of injury on radiator fins.

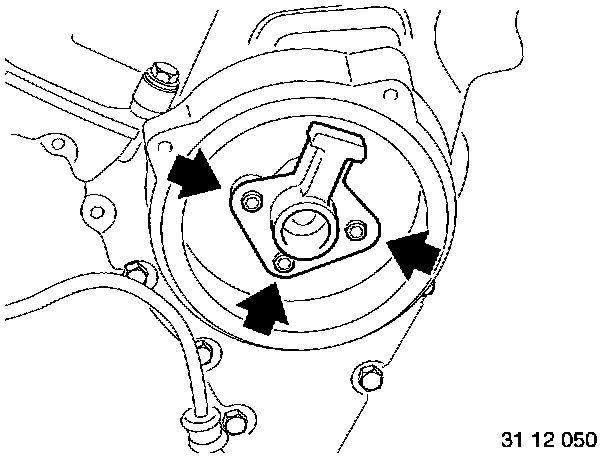

- Unfasten screws with socket head cap wrench.

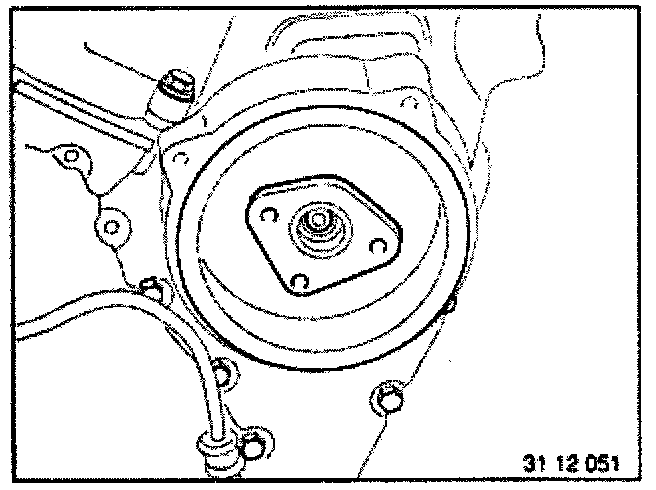

NOTE: Measure resistance and check surface and casting compound for hairline cracks and burn marks. If unit is affected by these faults, always search for the cause of the fault and replace the relevant component.

Tightening Torque: 2.8 Nm.
