Replacing Left Distributor Cap

- Switch off ignition.
- Remove fan.

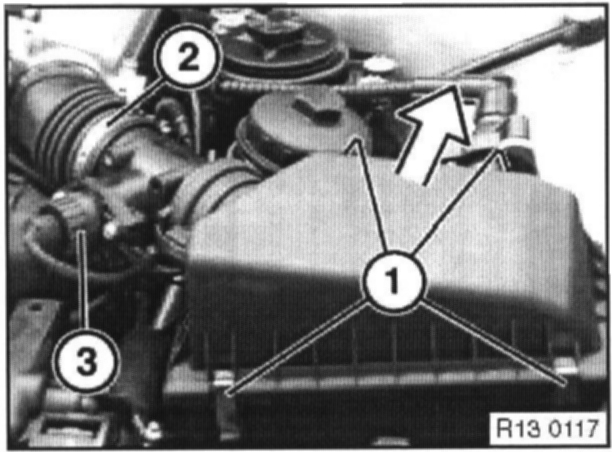

- Unfasten clips (1).
- Unfasten hose clip (2) from auxiliary hose for air pump.
- Disconnect plug-in connection (3).
- Remove upper section of suction filter housing with mass air flow sensor.




- Unfasten cable connector (1).




- Unclip and remove left cover from points (1 to 3).




- Pull off shielded connectors.

Installation Note:
- When fitting ignition leads, note firing order.




- Unfasten screws and remove distributor cap.

Tightening Torque: 4 Nm.

CAUTION: Avoid damage to radiator fins!
