Front Power Distribution Box

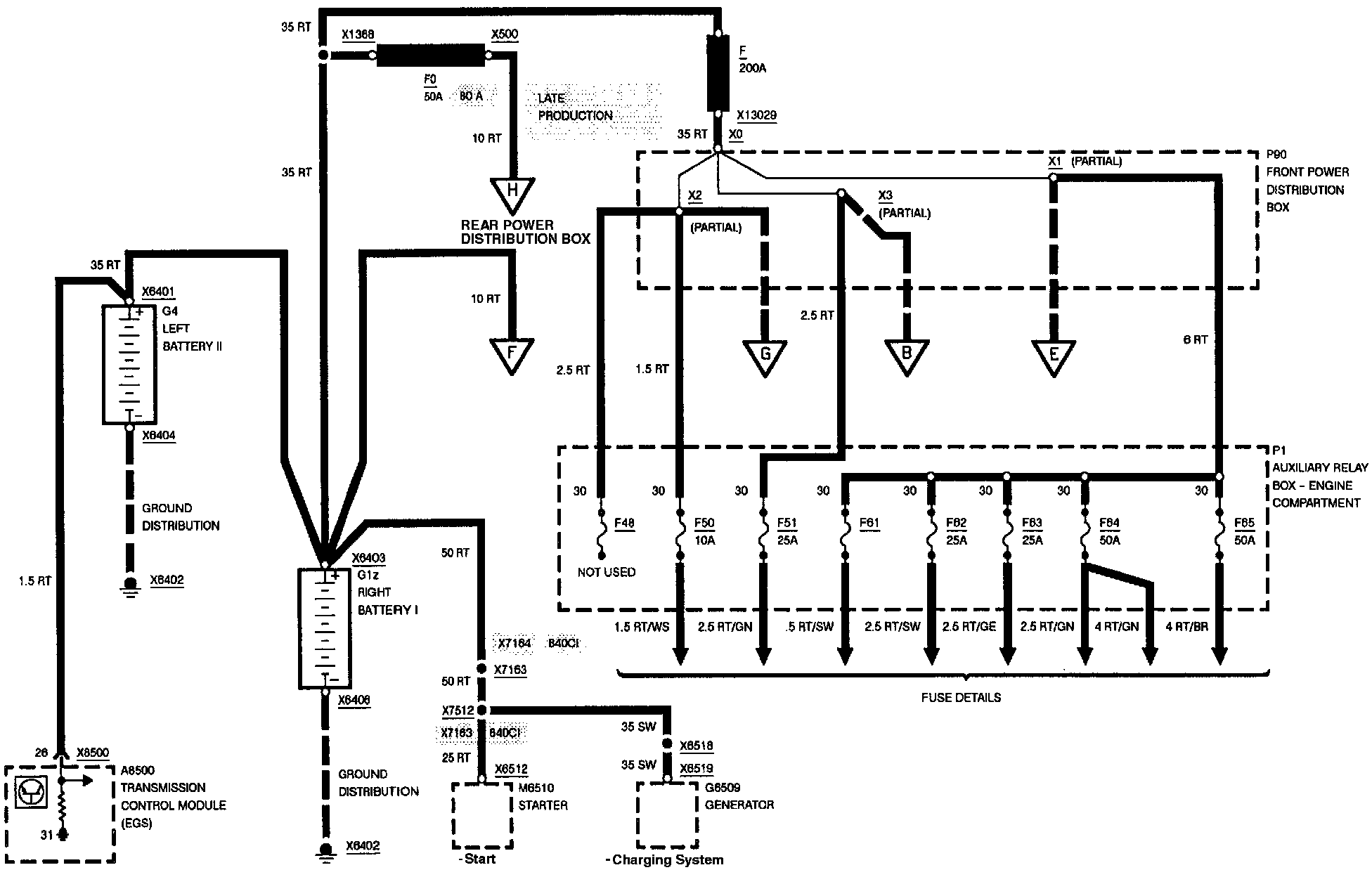

Front Power Distribution Box:

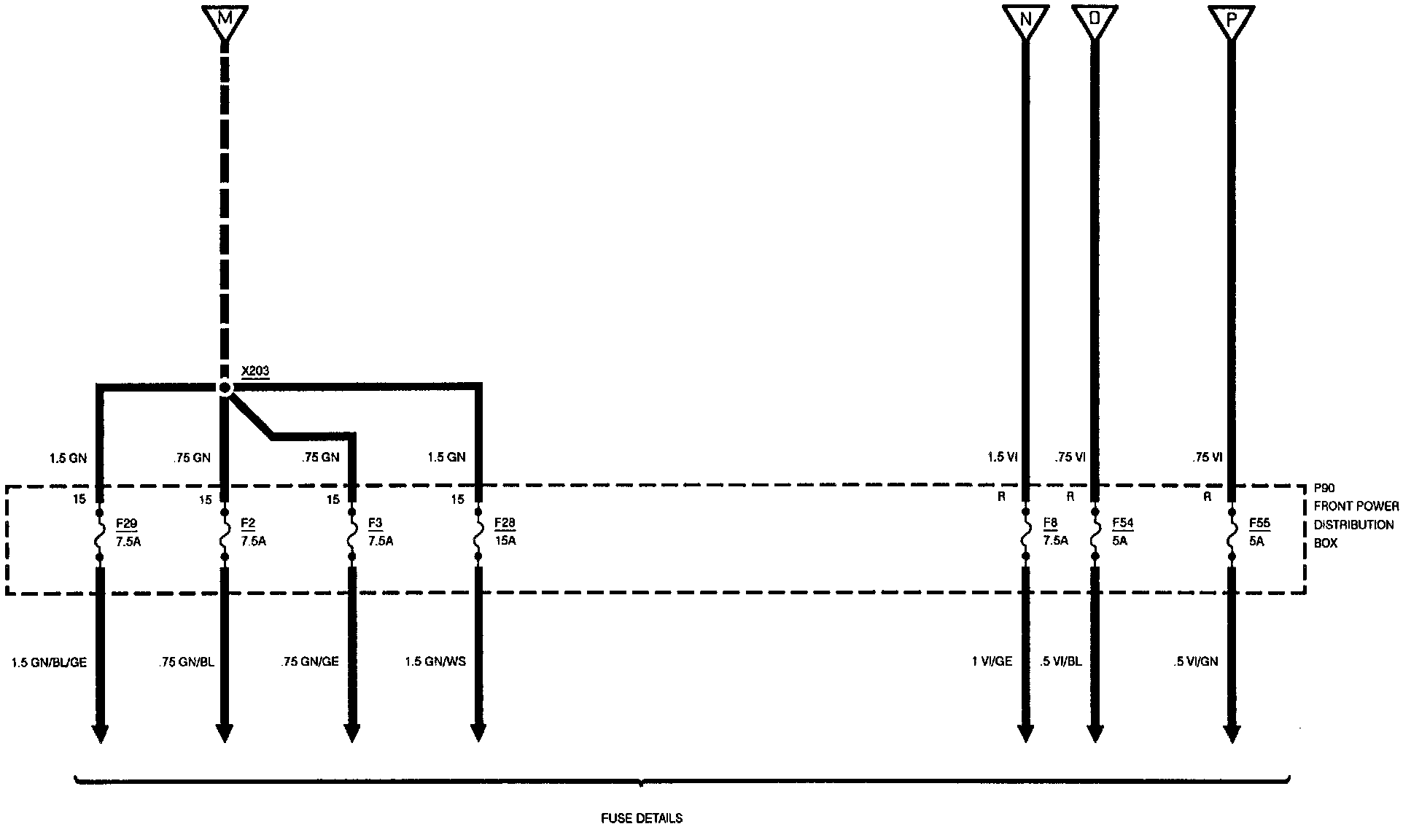

Front Power Distribution Box:

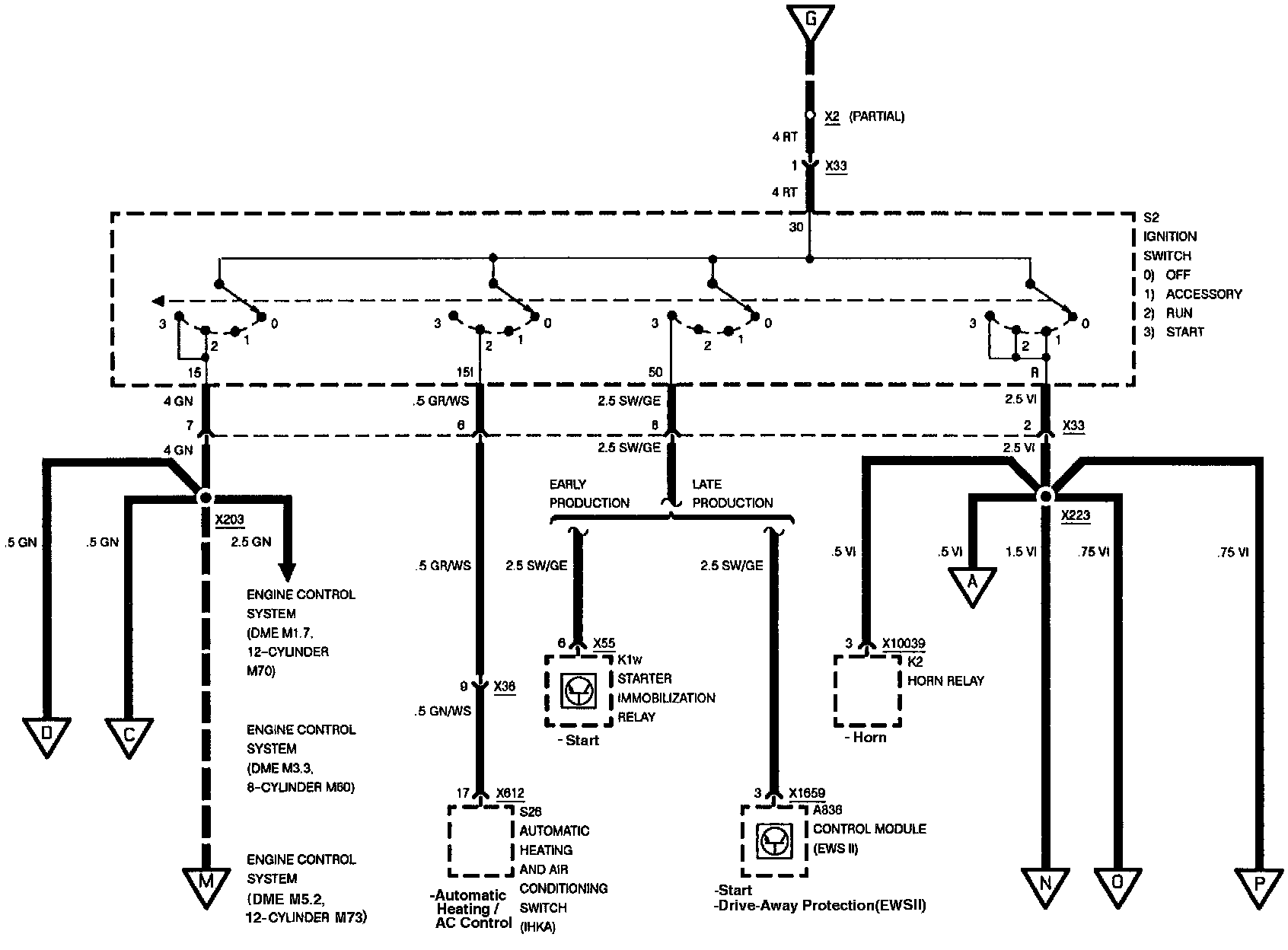

Front Power Distribution Box:




Front Power Distribution Box:




Front Power Distribution Box:




Front Power Distribution Box:
