Home
>>
BMW
>>
1995
>>
850Ci (E31) V12-5379cc 5.4L SOHC (M73)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Diagram Information and Instructions
>>
Ground Distribution
>>
Ground X18170
Ground X18170

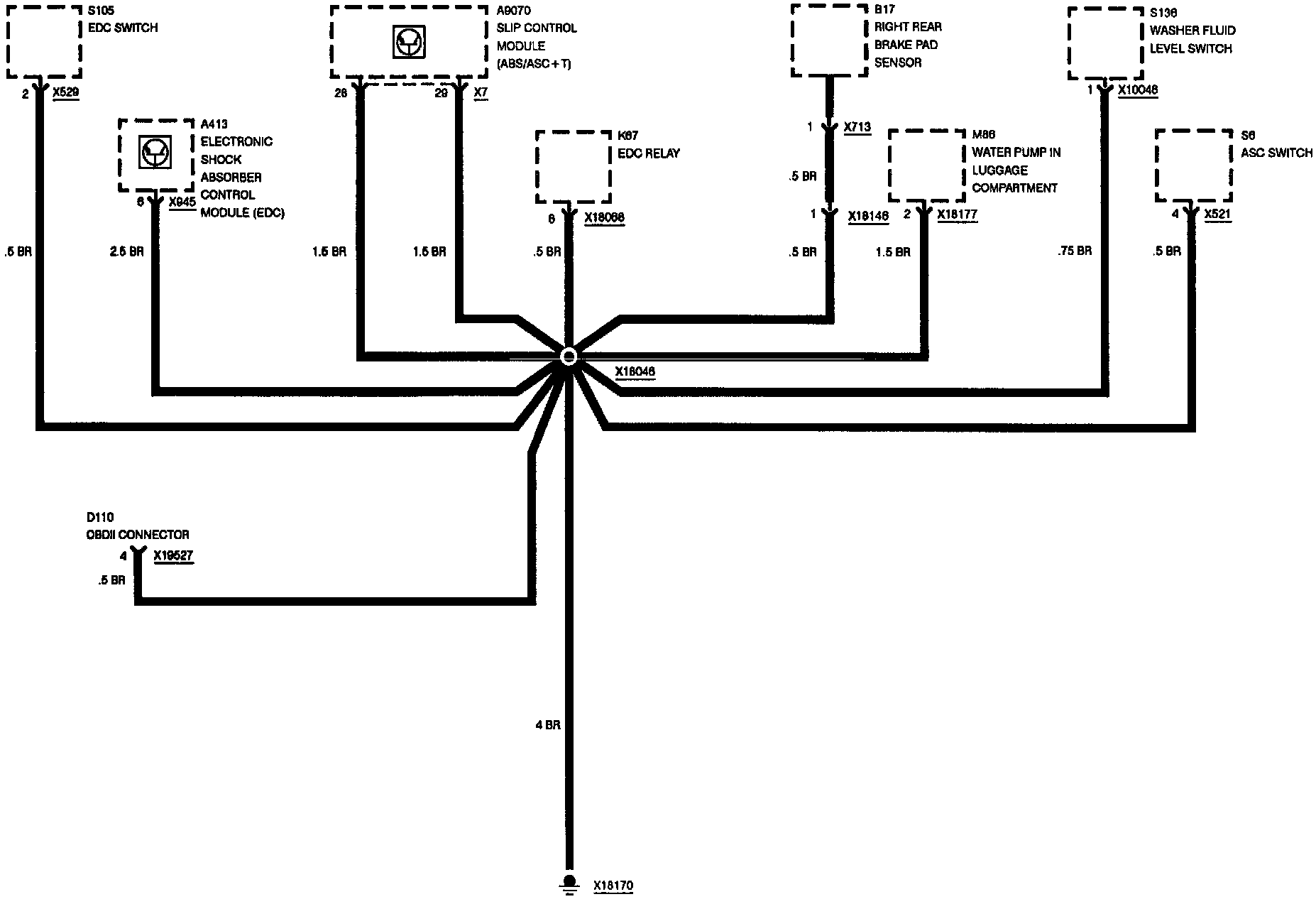

Ground Distribution - Ground X18170:
