Home
>>
BMW
>>
1995
>>
850Ci (E31) V12-5379cc 5.4L SOHC (M73)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Electrical Diagrams
>>
Instrumentation Bus (I-Bus)
Instrumentation Bus (I-Bus)

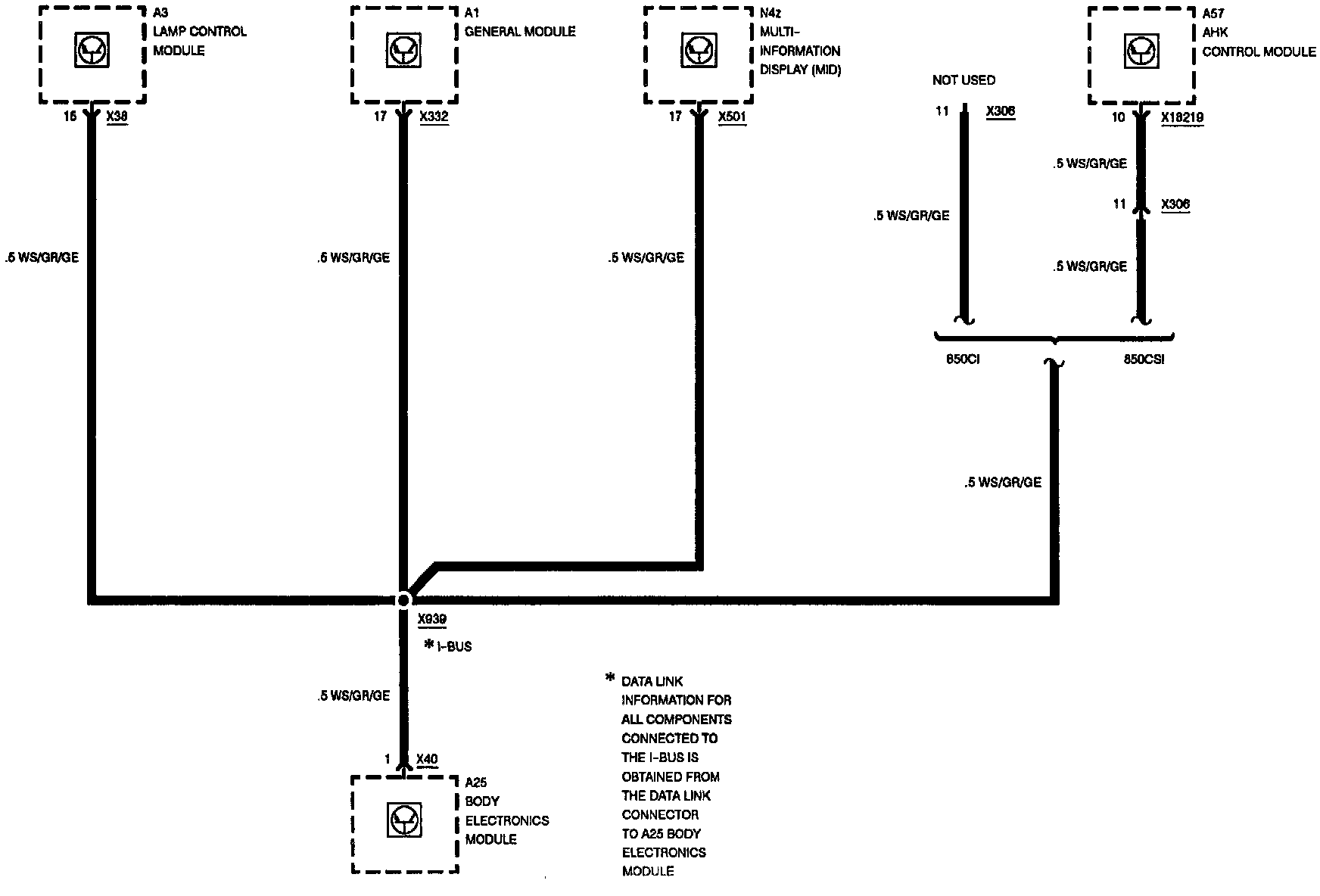

Data Link - Instrumentation Bus (I-Bus):
