Refrigerant Temperature Sensor: Locations

Component Location Views:

Figure 3
Component ID B6235, Temperature Switch
Location Rear RH side of engine compartment in E-Box

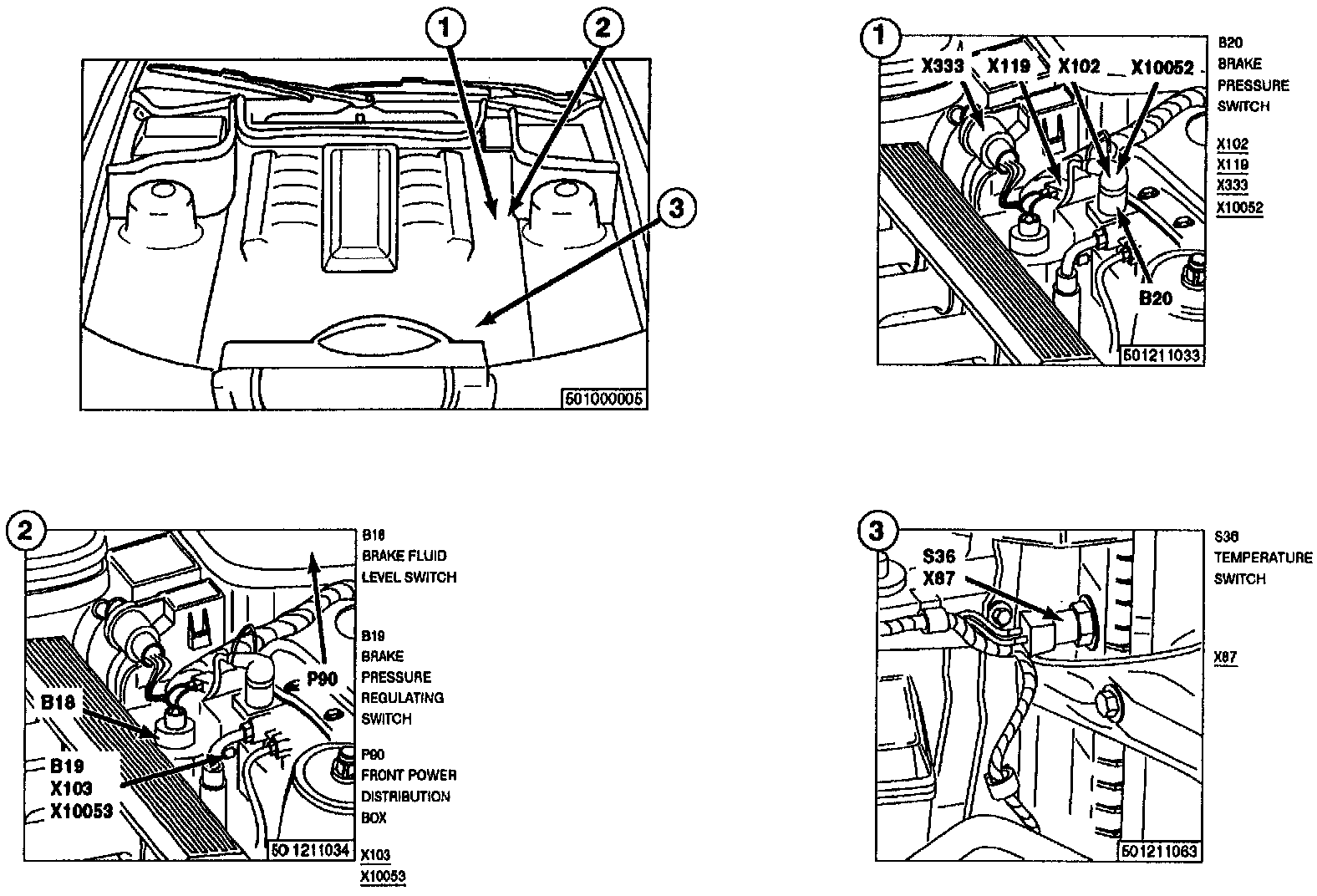

Component Location Views:

Figure 3
Component ID S36, Temperature Switch
Location Front RH side of engine compartment
