BMW
>>
1995
>>
850Ci (E31) V12-5379cc 5.4L SOHC (M73)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Slip Control 5 (ASC 5)
>>
Engine Control (DME) Interface
Engine Control (DME) Interface

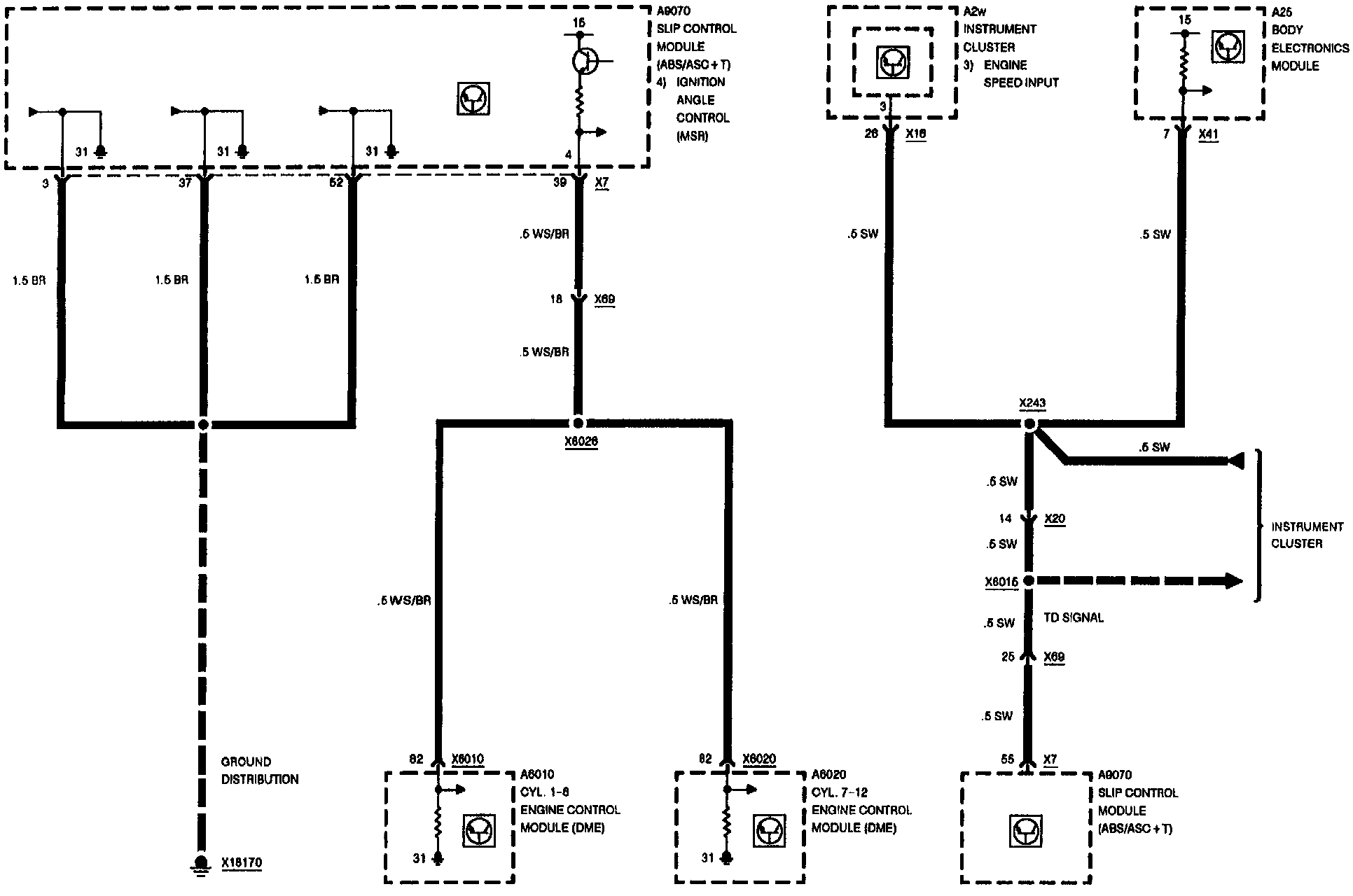

Slip Control 5 (ASC 5) - Engine Control (DME) Interface:
