Multi-Function Switch, ASC Passive
Multi-Function Switch, ASC Passive

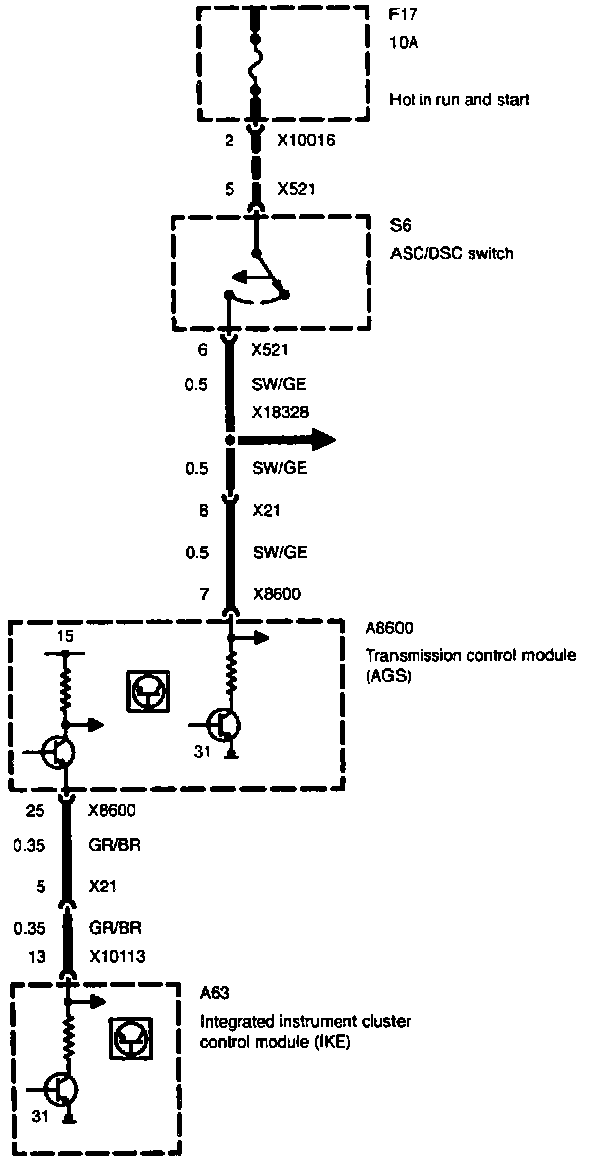

Adaptive Transmission Control (AGS) - Multi-function Switch, ASC Passive:
