BMW
>>
1995
>>
750iL (E38) V12-5379cc 5.4L SOHC (M73)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Lamp Control Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

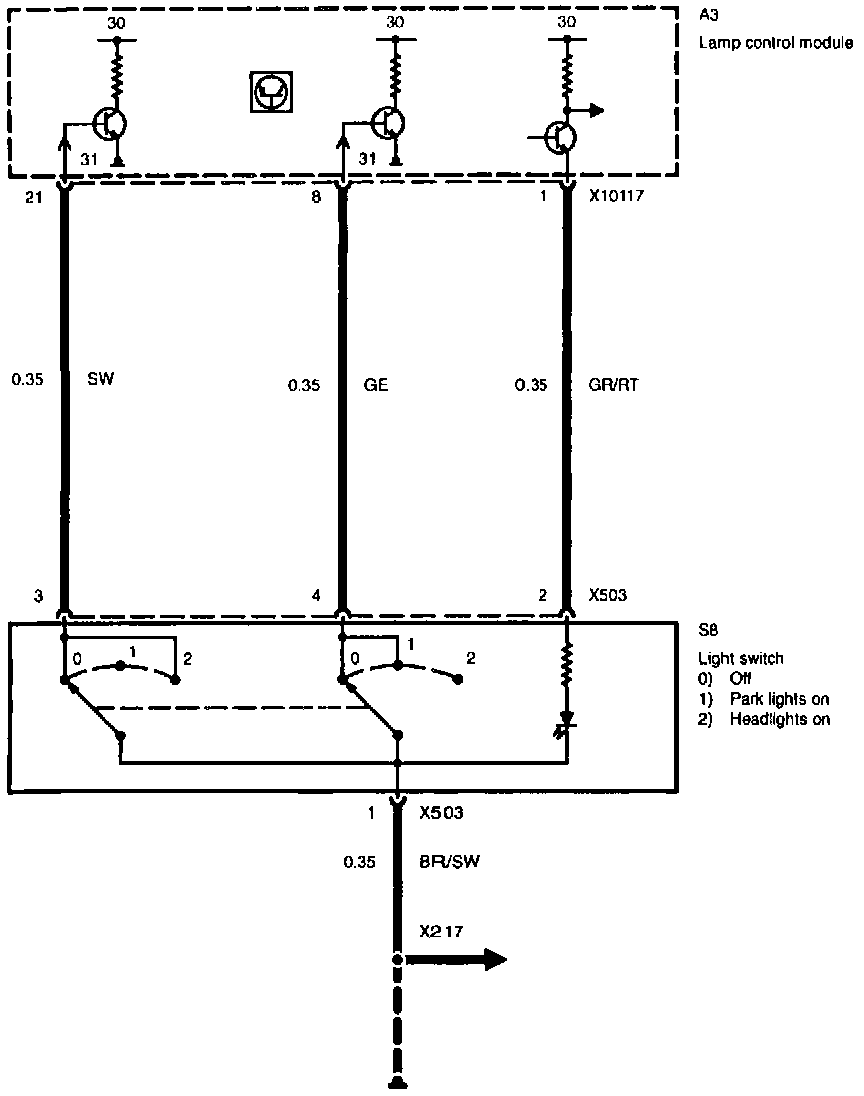

Lamp Monitor - Light Switch:

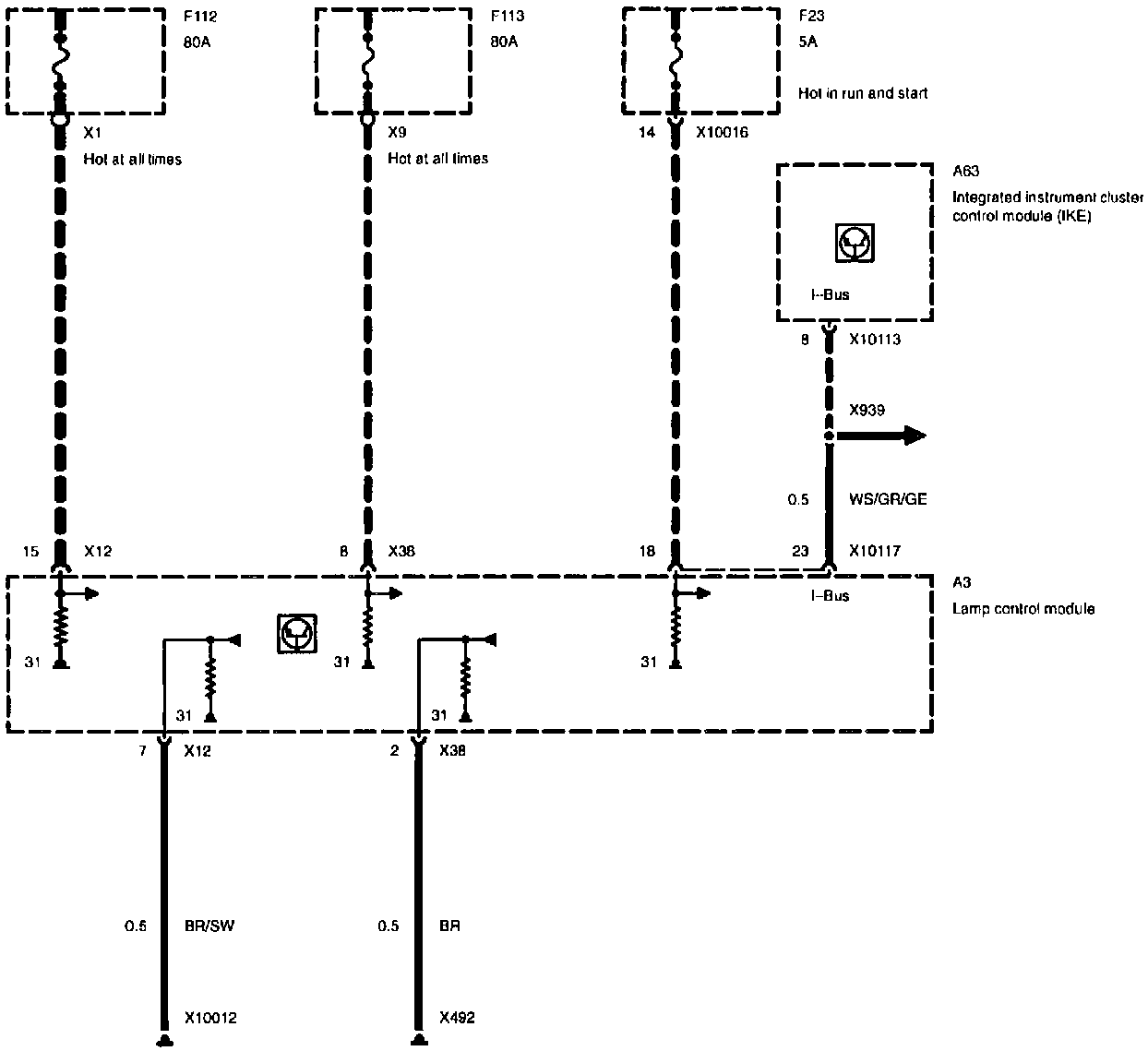

Lamp Monitor - Power:
