Diagnosis, Terminating Resistor
Diagnosis, Terminating Resistor

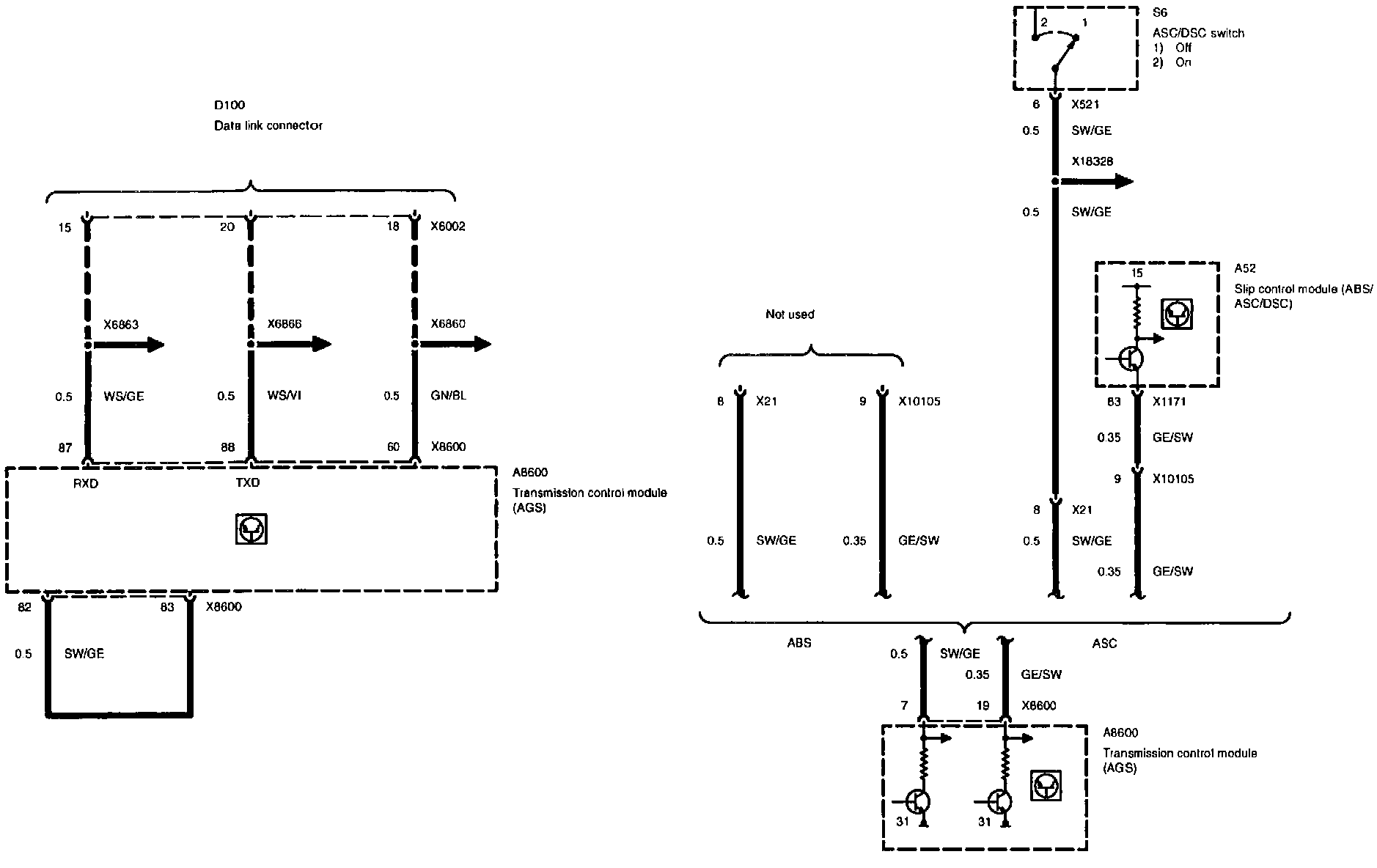

Adaptive Transmission Control (AGS) - Diagnosis, Terminating Resistor:
