Front Panel, Removal

Remove Heater Controls. Front Plate Heater Controls, Removal

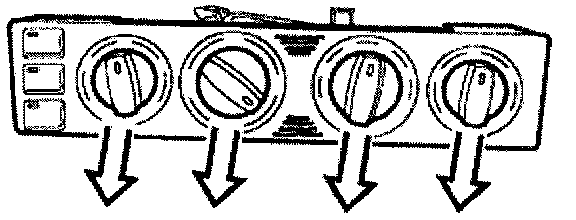

Press down rotary buttons.

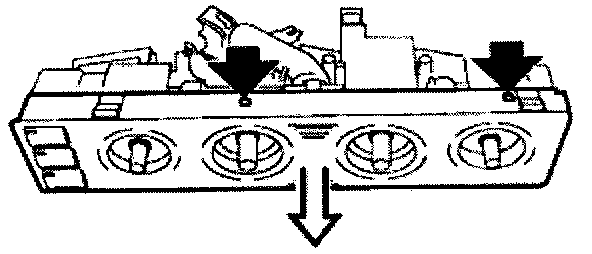

Press in clips and unclip front plate.

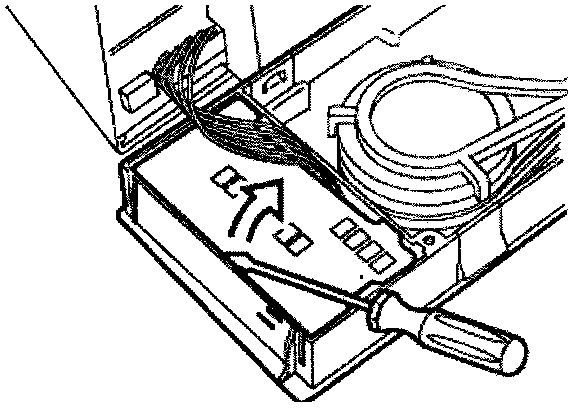

Unclip printed circuit board.

Caution!
Do not touch printed circuits on PCB.
