Home >> BMW >> 1995 >> 740iL (E38) V8-3982cc 4.0L DOHC (M60) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> System Diagram >> Electronic Drive-Away Protection II (EWS II) >> Transmit/Receive Module (EWS II)

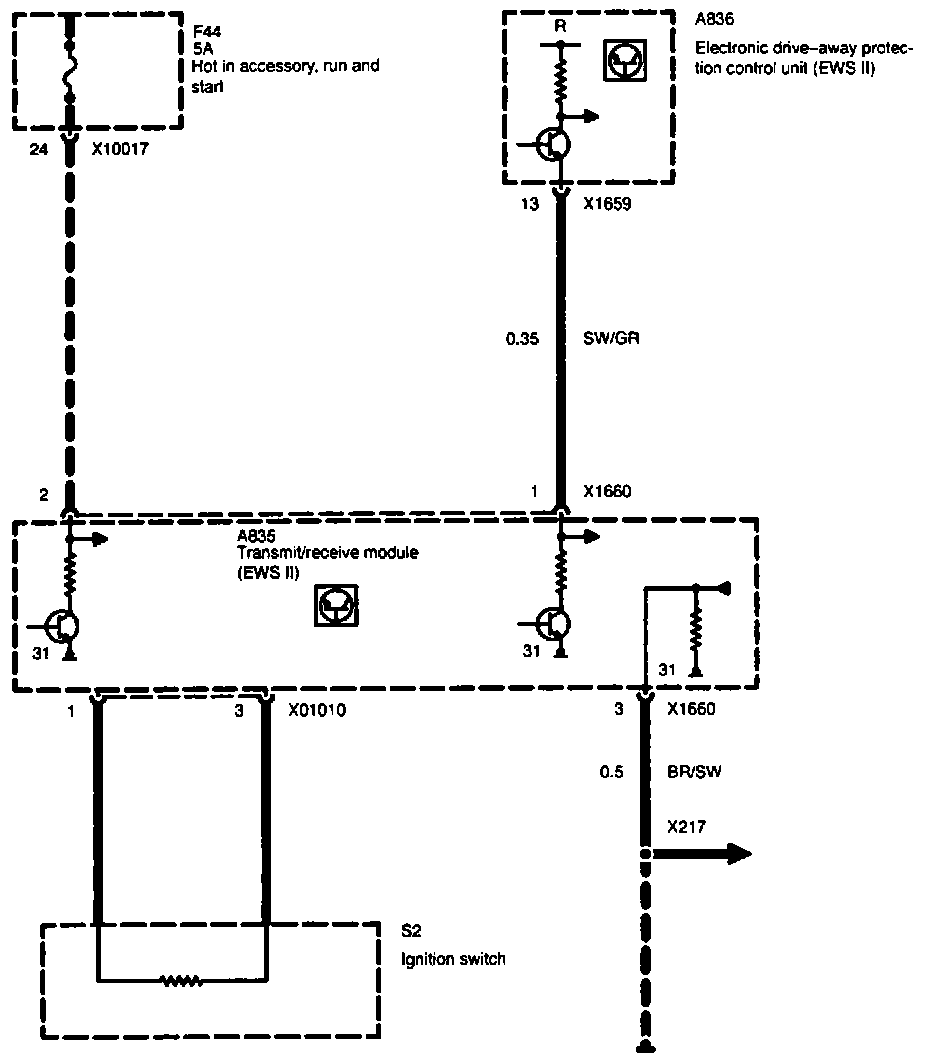

Transmit/Receive Module (EWS II)

Transmit/Receive Module:
