Special Tool - New Coil Spring Compressor Jaws

Group 04
Tools and Equipment

Bulletin Number
04 20 96

Woodcliff Lake, NJ
May 1996
Product Engineering

SUBJECT:
New Spring Compressor Jaws

MODELS:
E38

Situation:

Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. Please refer to Parts Information bulletin 1-24 dated 4/95 for tool warranty details. All prices on this bulletin are introductory prices. Introductory prices are only valid during the Automatic Tool Shipment.

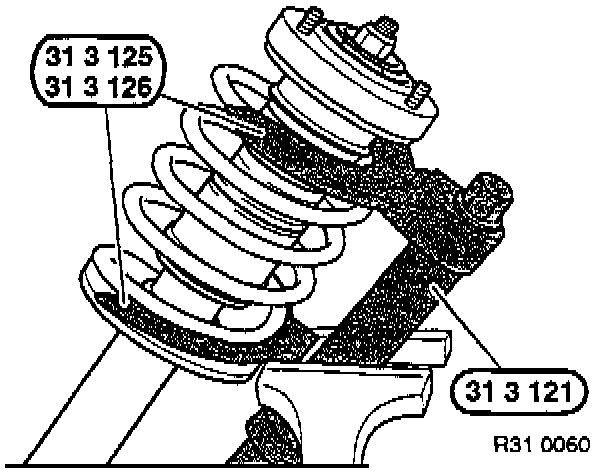

Clamping Jaws
P/N 90 88 6 313 125
Price = $102.00

Used in conjunction with 88 88 6 313 120 (refer to 04 08 90) to remove the rear coil springs on the E38. Refer to E38 repair manual section 33 53 000.
