Transmission Valve Unit (Oil Temperature, Speed Sensor)

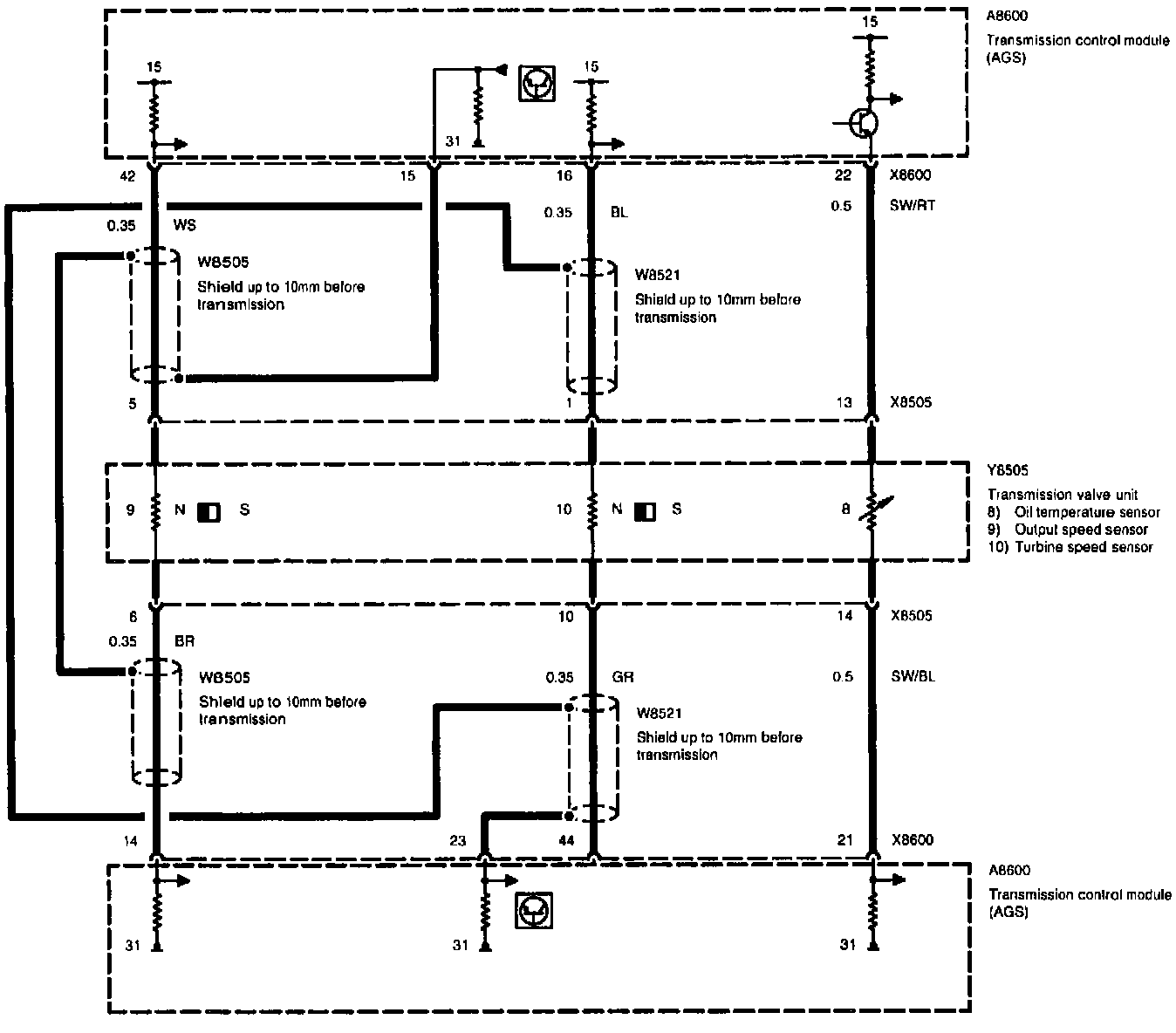

Adaptive Transmission Control (AGS) - Transmission Valve Unit (Oil Temperature, Speed Sensor):
