Transmission Range Position Switch
Transmission Range Position Switch

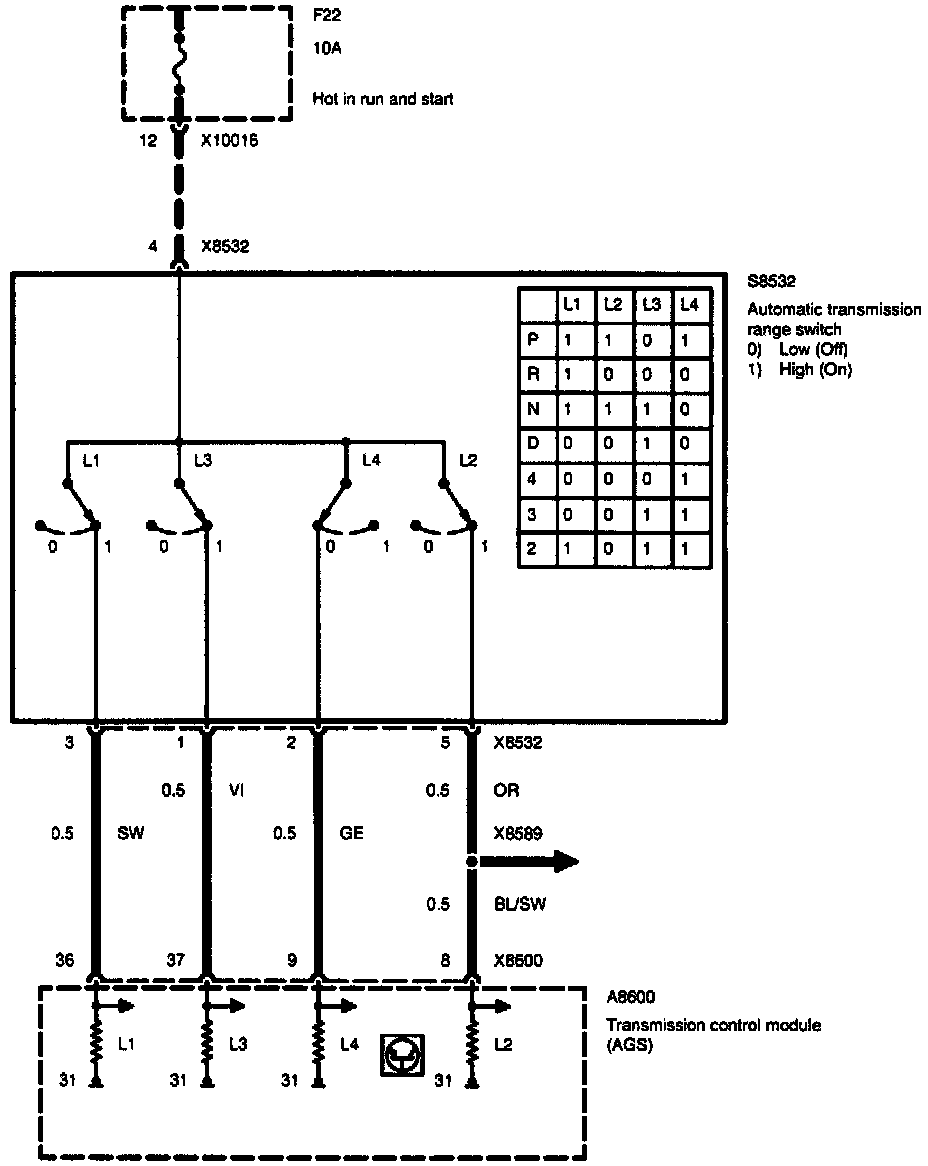

Adaptive Transmission Control (AGS) - Transmission Range Position Switch:
