Replacement

NOTE: Air conditioner drained. Refer to Evacuating and Charging.

Remove right air filter.
Refer to notes on Replacing Dryer Bottle. Notes on Replacement

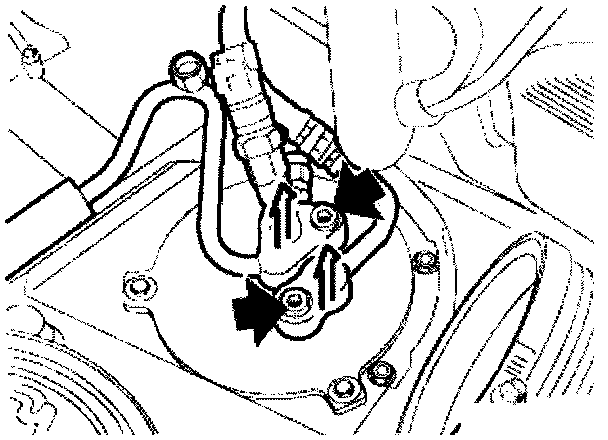

Unfasten screws and pull pressure and suction pipe upwards and, if the air conditioner remains open for more than one hour, fit sealing plugs.

Installation:
Replace O-rings.

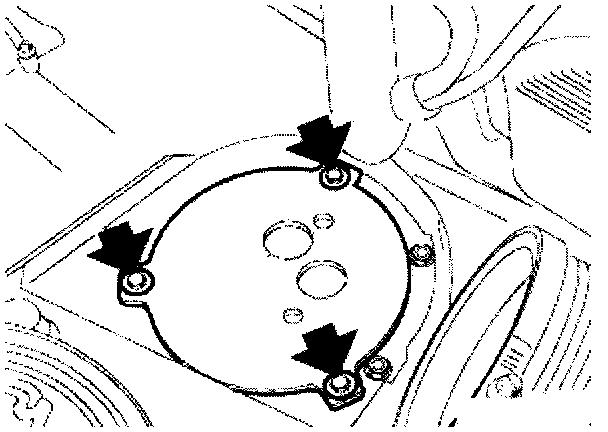

Unfasten screws and pull drier flask upwards to remove.

NOTE: In warranty cases, seal pipe apertures with sealing plugs from new drier flask.
