Air Duct: Service and Repair

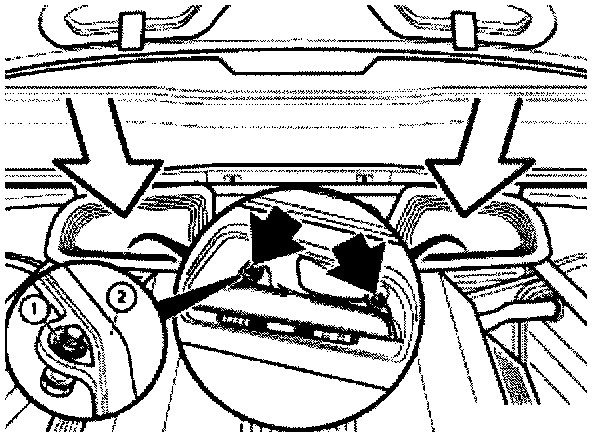

Replacing Fresh Air DuctRemove right windscreen wiper.
NOTE: Screws are protected with plastic washers (1) to prevent them from dropping out so do not unfasten screws completely.
Press down flaps, unfasten screws and remove fresh air duct.
Installation:
Plastic washers (1) must be fitted to ensure that screws do not drop into duct when next loosened.
Ensure that seals (2) are correctly cemented.
