Temperature Control (Sensor)
Temperature Control (Sensor)

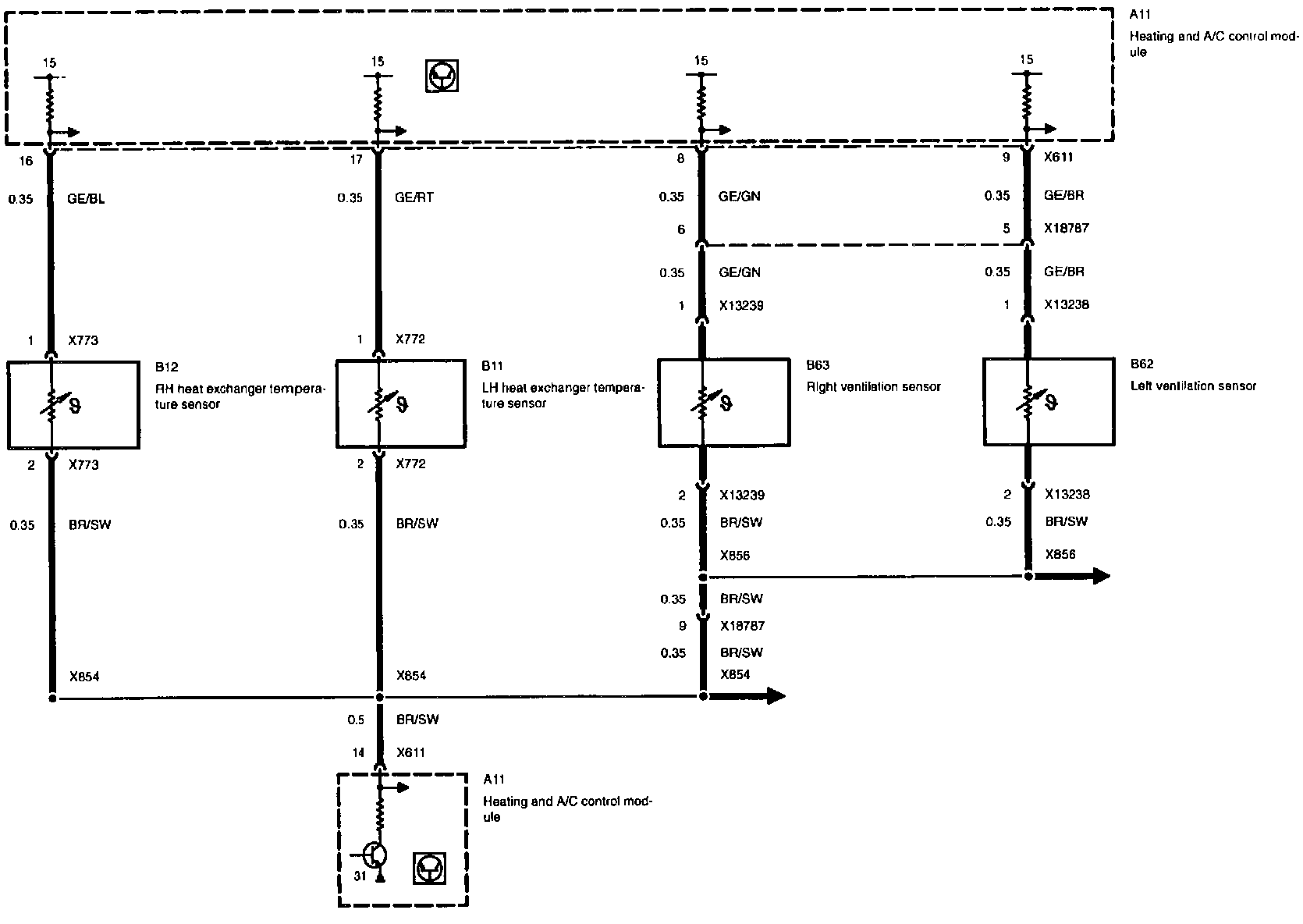

Heating And A/C Control - Temperature Control (sensor):
