Sound Proofing / Insulation: Locations

41 00 ... Arrangement Of Shaped Parts On Cavity Sealing

To reduce interior noise, cavity sealing is installed in certain areas of the body. For this, appropriate shaped parts are installed in the cavities. When the body is heated to approx. 180 °C and held at this temperature for approx. 20 minutes, these shaped parts expand to form a perfect match with the shape of the contact surfaces.

Since it is not possible during body repair work to heat the body to this temperature and hold it there, a different procedure should be adopted for such cases.

This procedure is described in
Installation of shaped parts for cavity sealing, except covers for side members
Installation of cavity sealing, cover for side member

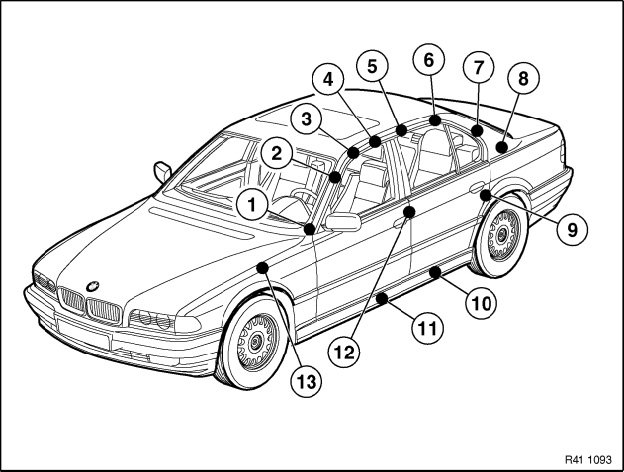

Location of shaped parts for cavity sealing in E38







Location of shaped parts is marked with spots.
- (1) Side of windshield, spare part already in expanded form
- (2) Reinforcement on A-column, spare part already in expanded form
- (3) Front roof frame, spare part already in expanded form
- (4) Roof frame, center front, spare part already in expanded form
- (5) Roof frame, center back, spare part already in expanded form
- (6) Rear roof frame, spare part already in expanded form

Location of shaped parts for cavity sealing in E38







Location of shaped parts is marked with spots.
- (7) Bottom of rear window frame, spare part already in expanded form
- (8) C-column, refer to Installation of shaped parts for cavity sealing, except cover for side member
- (9) Rear wheel housing, refer to Installation of shaped parts for cavity sealing, except cover for side member
- (10) Cover for rear longitudinal member, refer to Installation of cavity sealing, cover for side member
- (11) Cover for front side member, refer to Installation of cavity sealing, cover for side member
- (12) B-column, spare part already in expanded form
- (13) Support carrier, wheel arch, front, already contained expanded in wheel arch spare part
