Replacing Eject Box
Replacing Eject Box
center console removed.

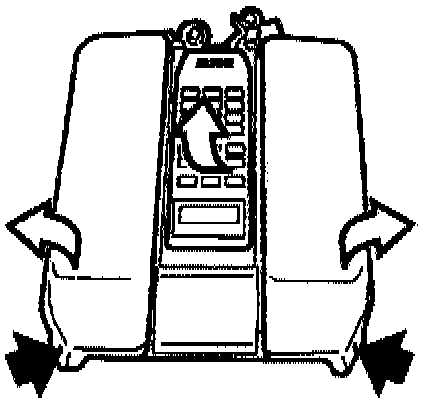

Fold up left and right armrests.
Remove telephone receiver

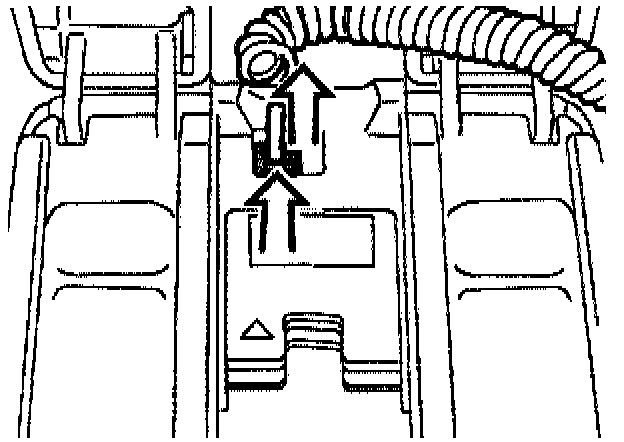

Press together clips and remove plug.

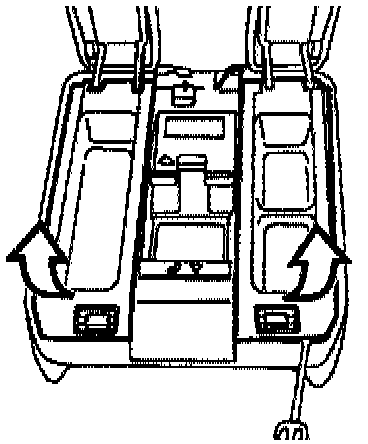

Unclip
oddments trays
on left and right sides.

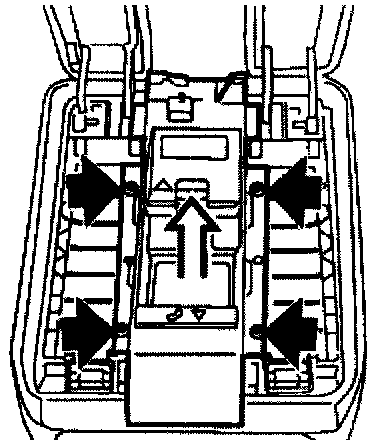

Unfasten screws and lever out eject box.
