Replacing Control Unit For Radio Interior Protection

Removing And Installing/Replacing Control Unit For Radio Interior Protection

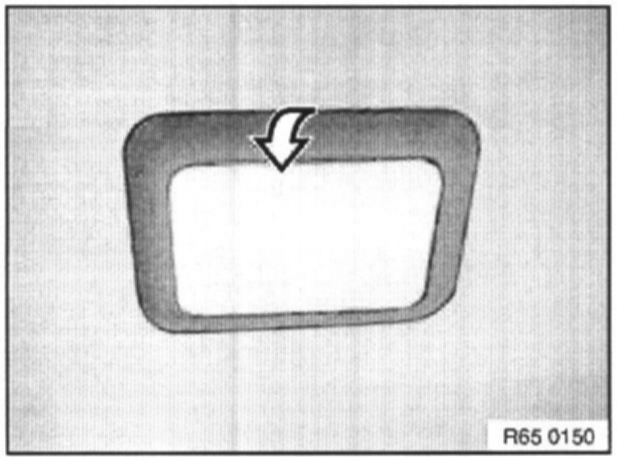

Unclip and remove cover.

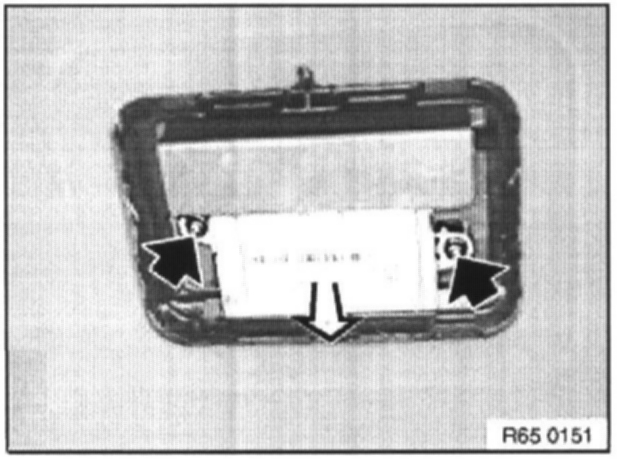

Unfasten screws and allow control unit to hang down.

Important!
The old control unit can be installed without the shield plate. The shield plate provided must always be installed.

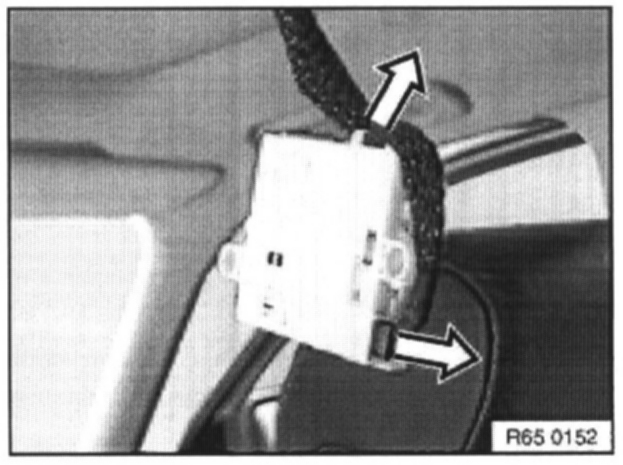

Pull off connector and thread out cable.
