Home >> BMW >> 1995 >> 540i (E34) V8-3982cc 4.0L DOHC (M60) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Lamp Out Module >> Diagrams >> Electrical Diagrams >> Block Diagram

Block Diagram

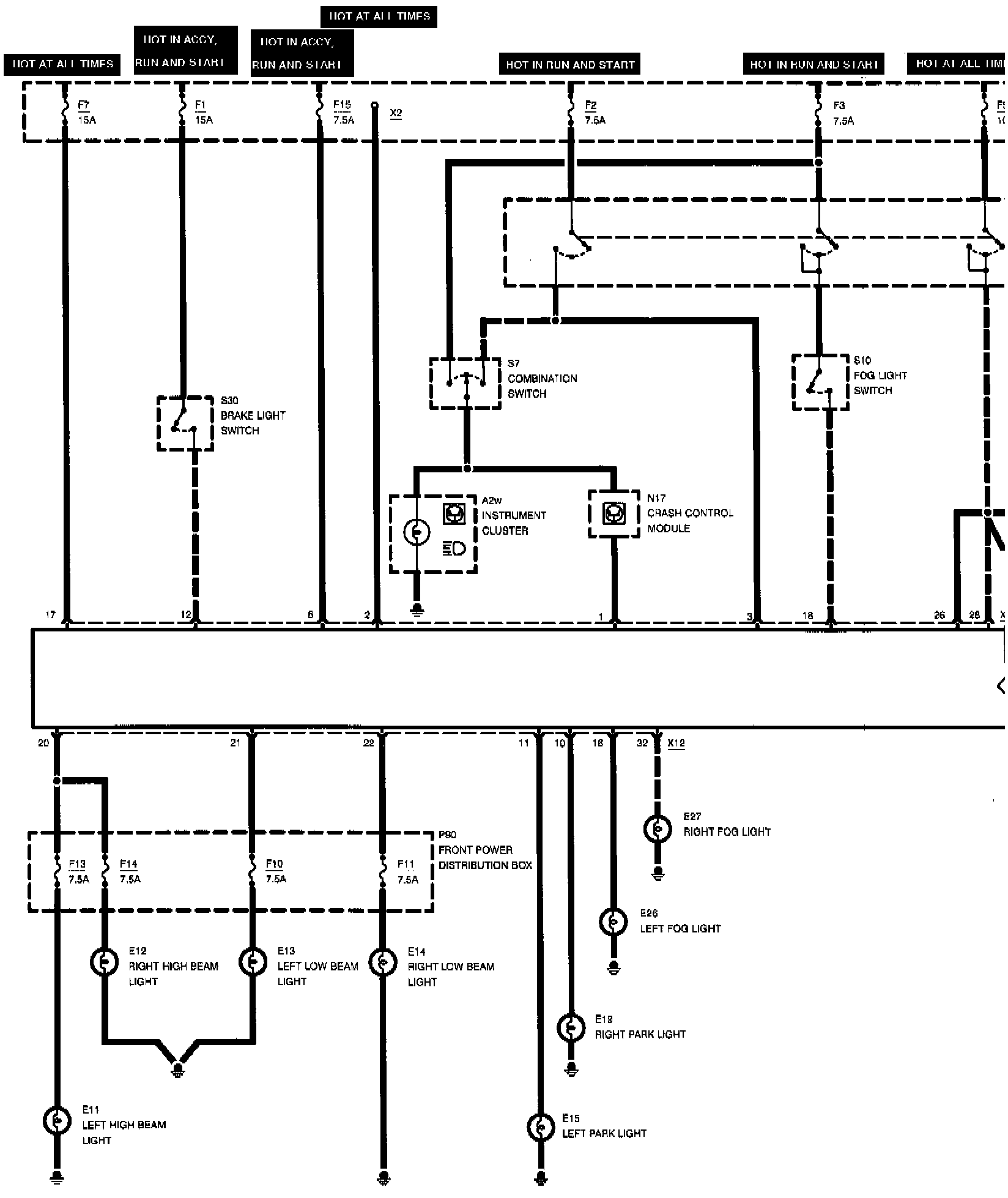

�p�L��Lamp Monitor (LKM): Block Diagram:
