Power Distribution Box, Front

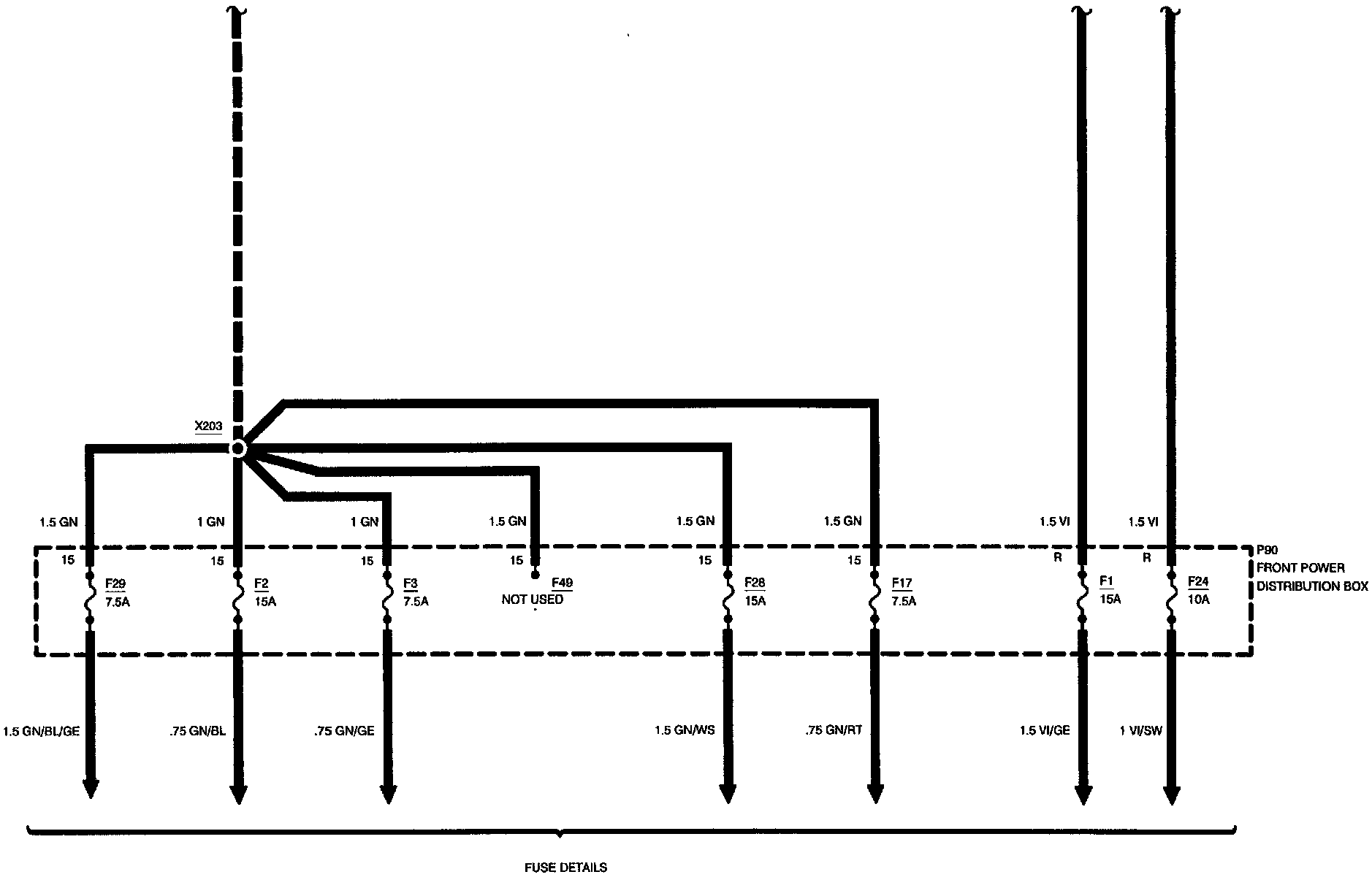

Power Distribution: Front Power Distribution Box:

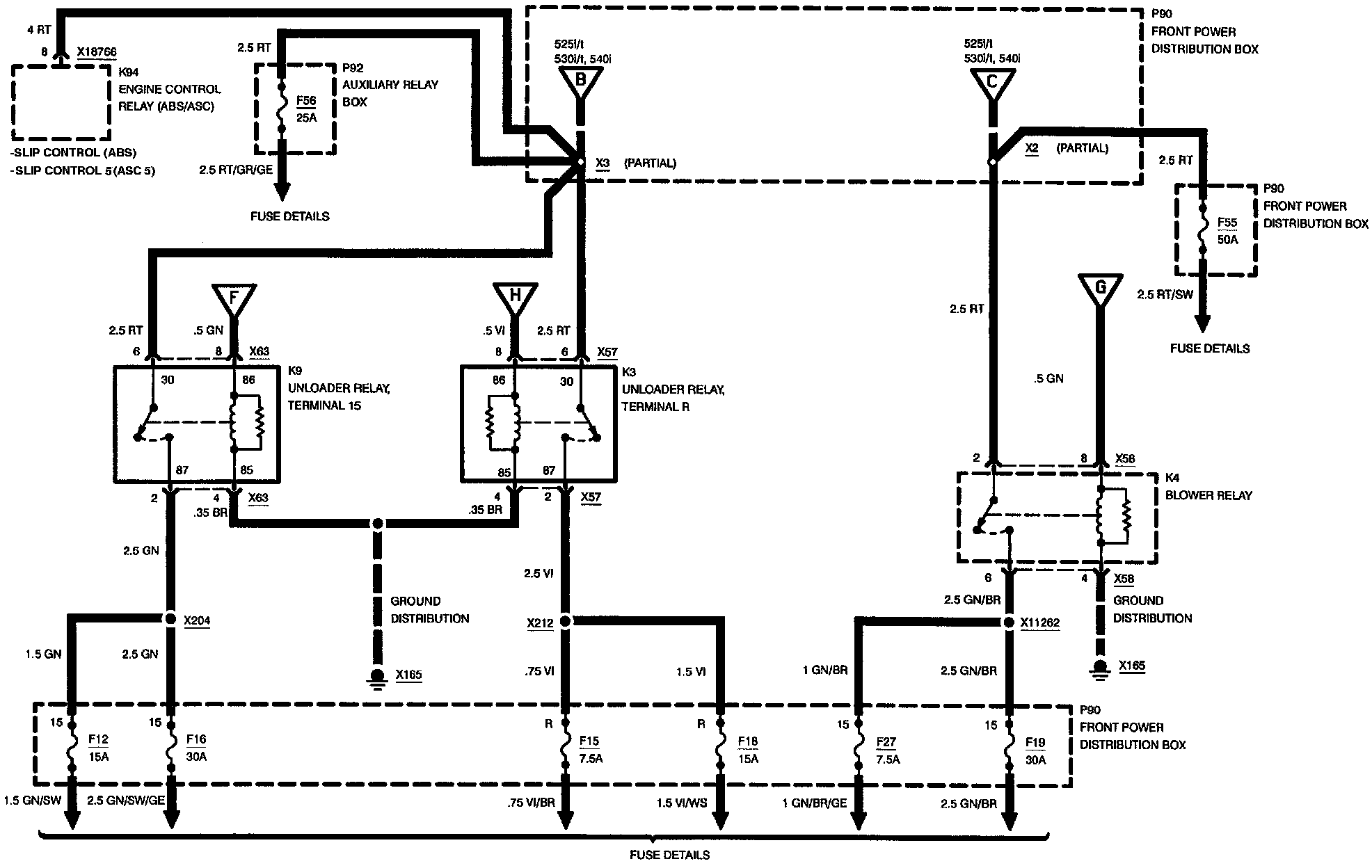

Power Distribution: Front Power Distribution Box:

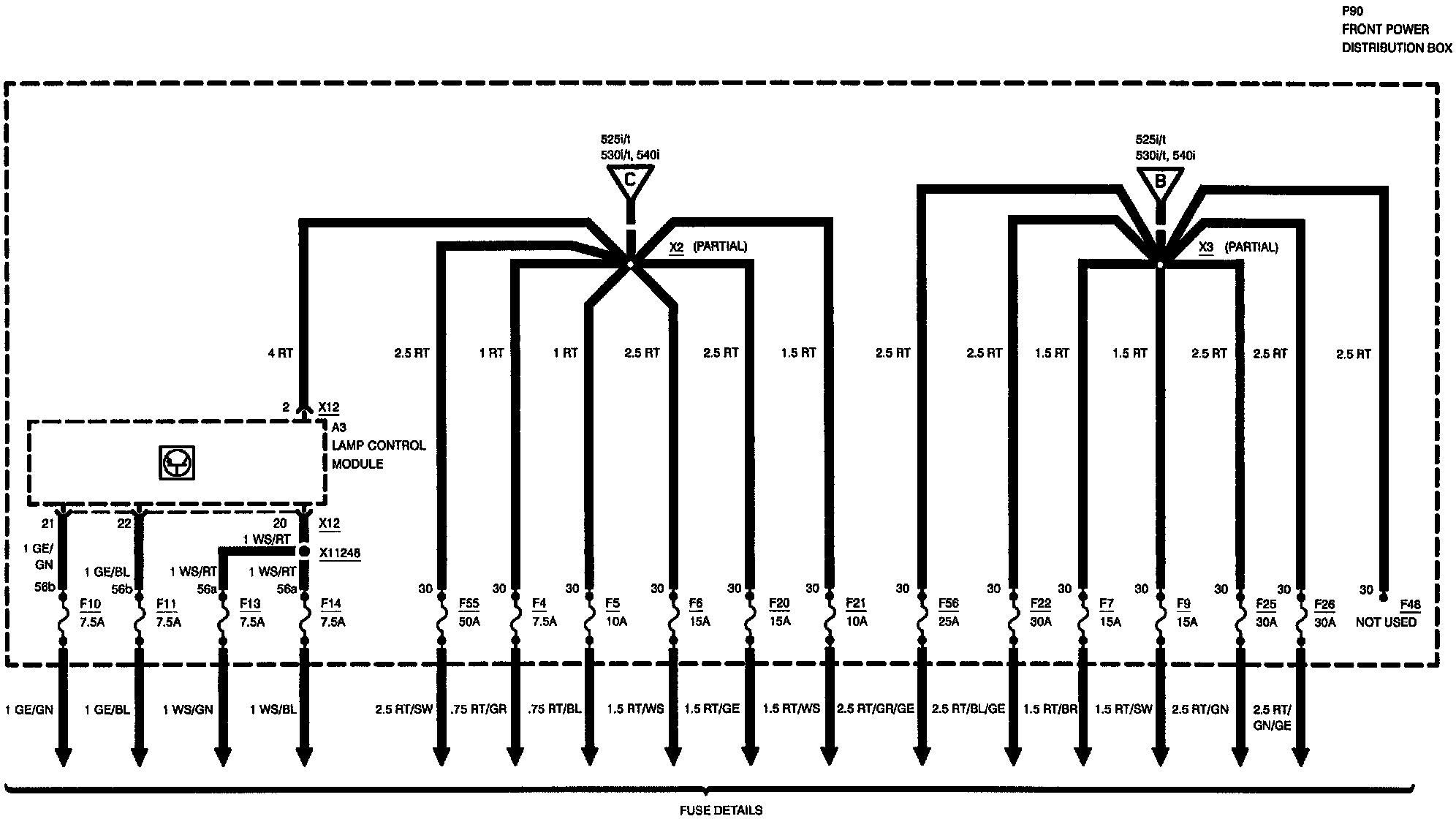

Power Distribution: Front Power Distribution Box:

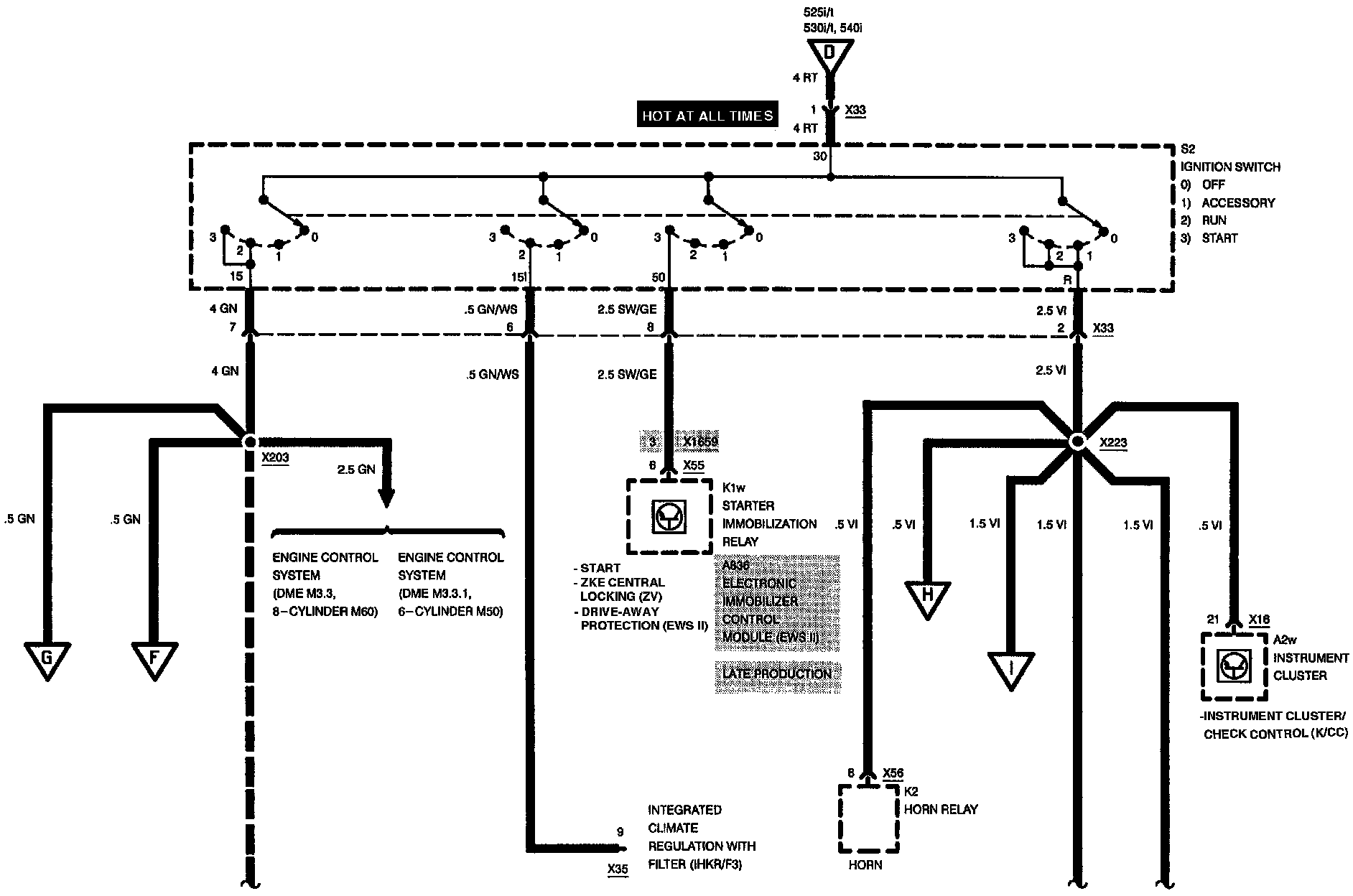

Power Distribution: Front Power Distribution Box:
