Fuel Pump Signal
>>
Locations
Fuel Pump Signal: Locations

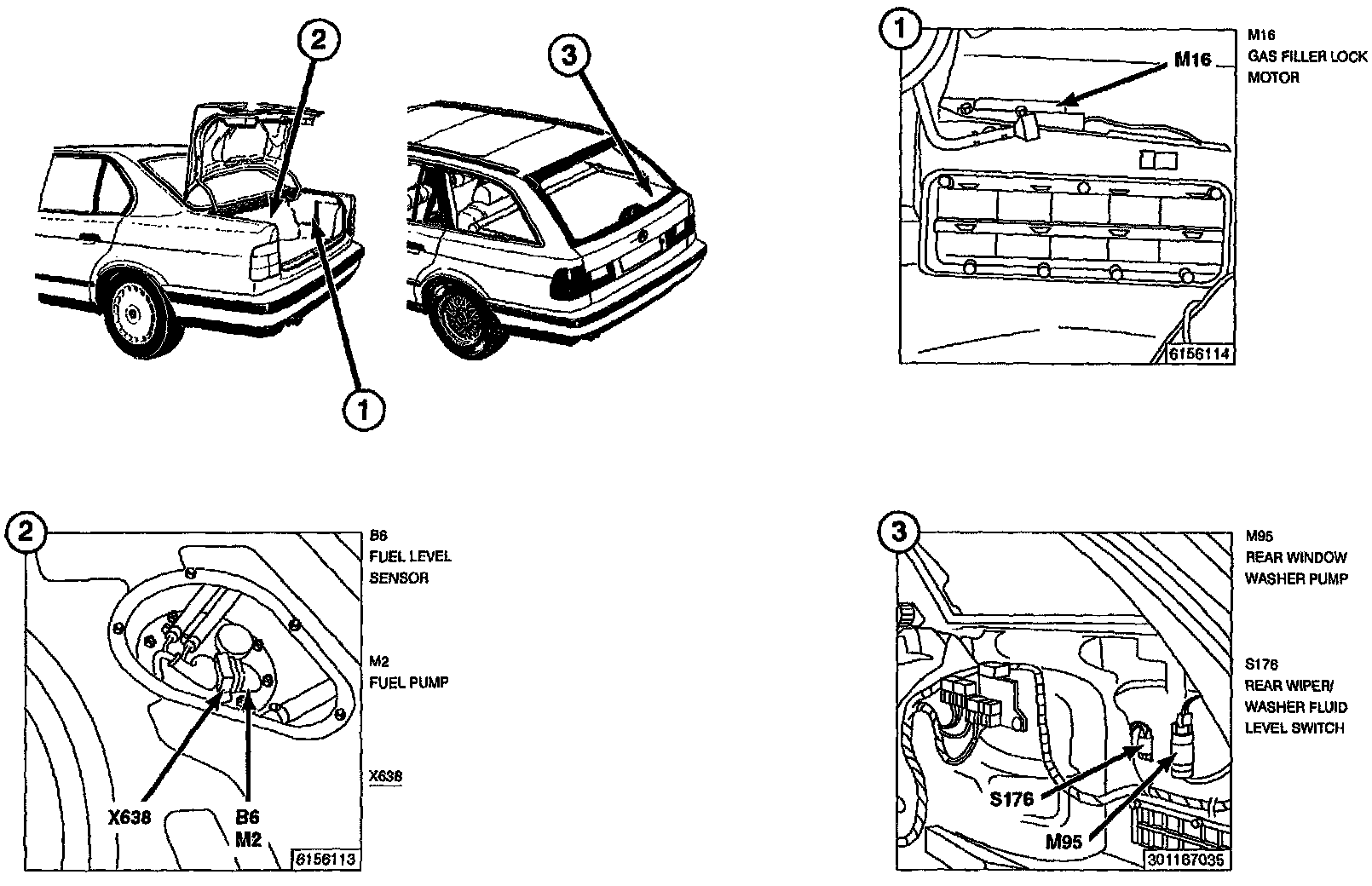

Component/Connector Location Views:
Component Location View
Figure
2
Component ID
M2,Fuel Pump
Location
In RH Side Of Luggage Compartment
