General Module

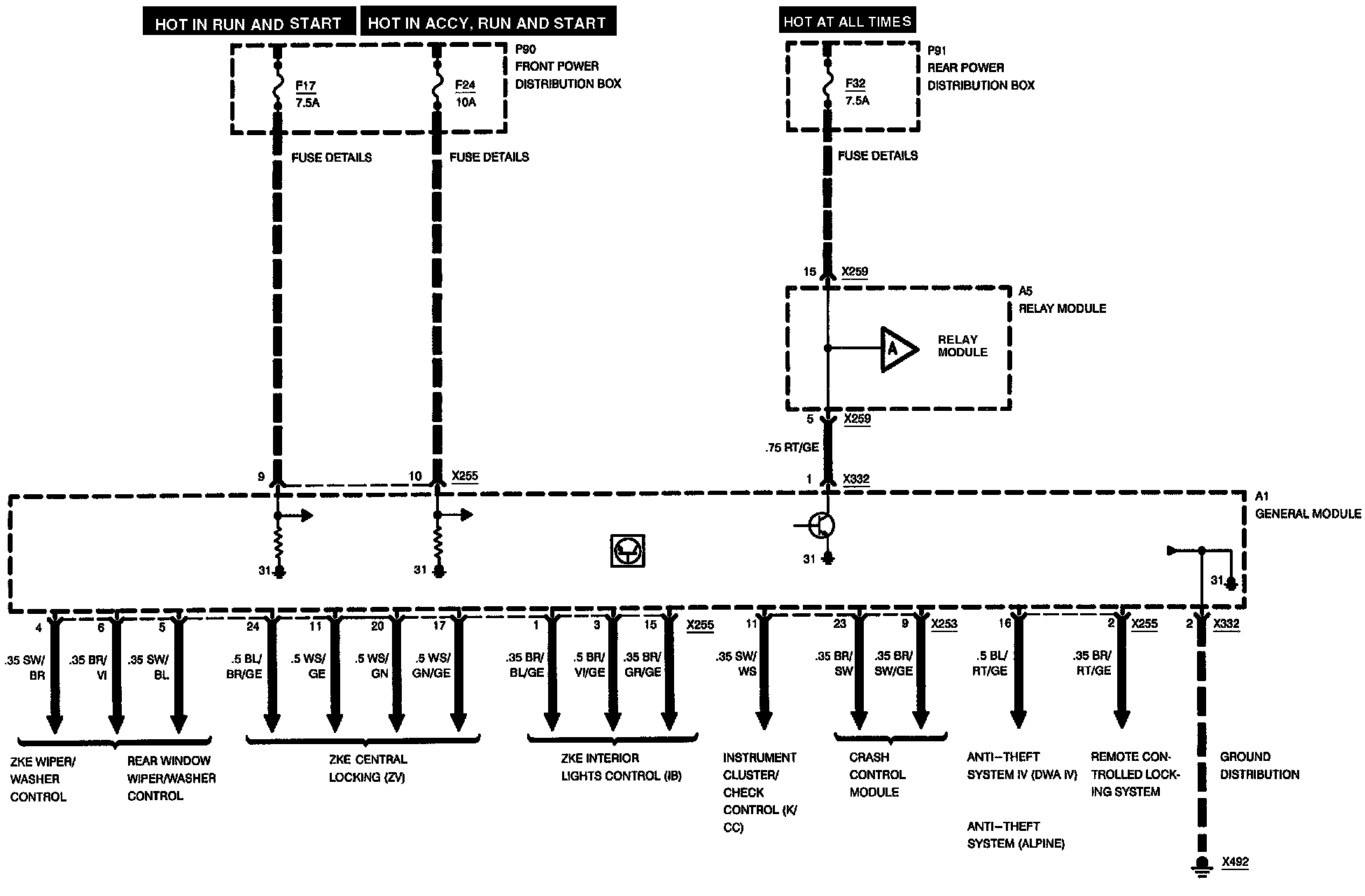

Central Body Electronics (ZKE): General Module:

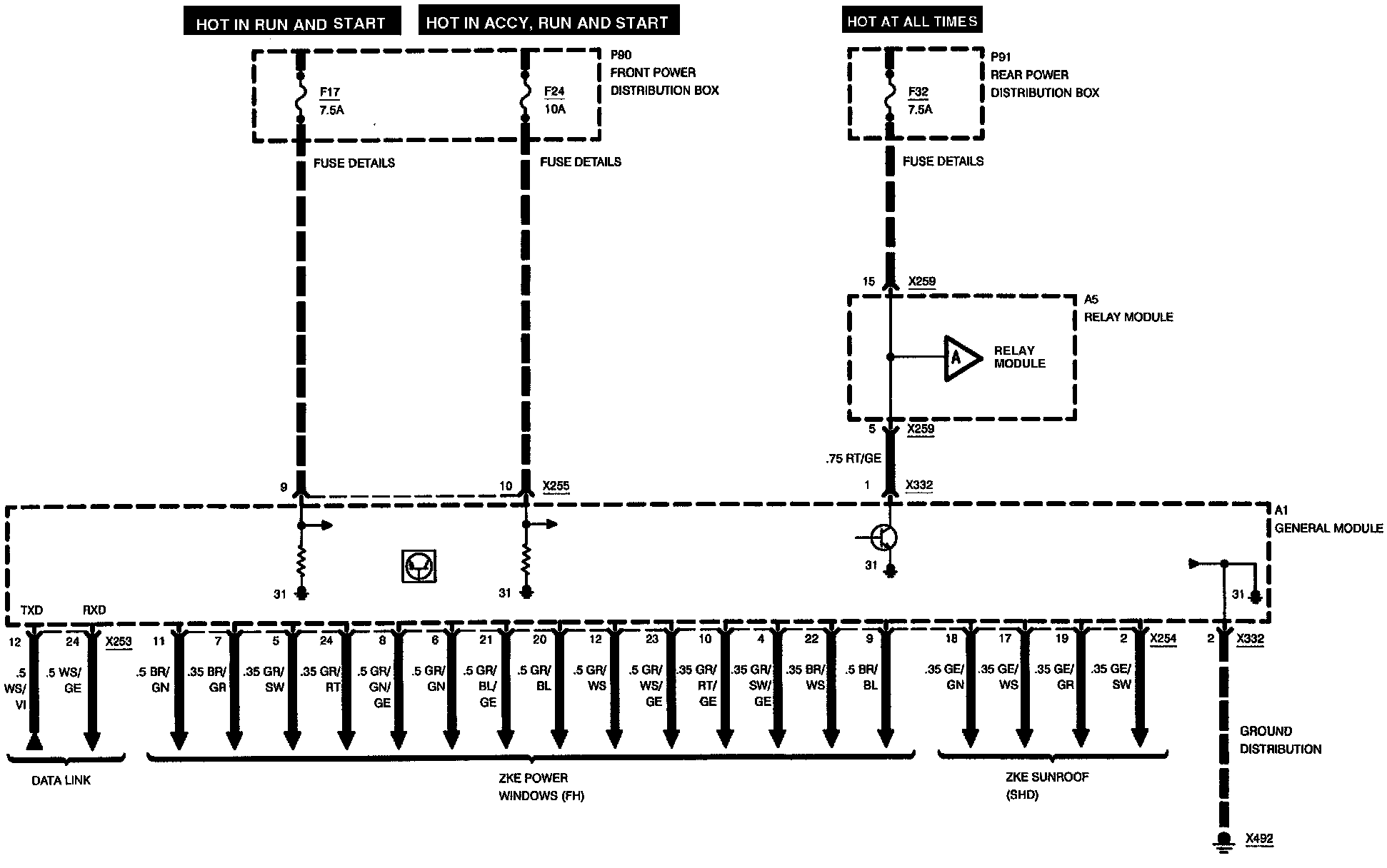

Central Body Electronics (ZKE): General Module:

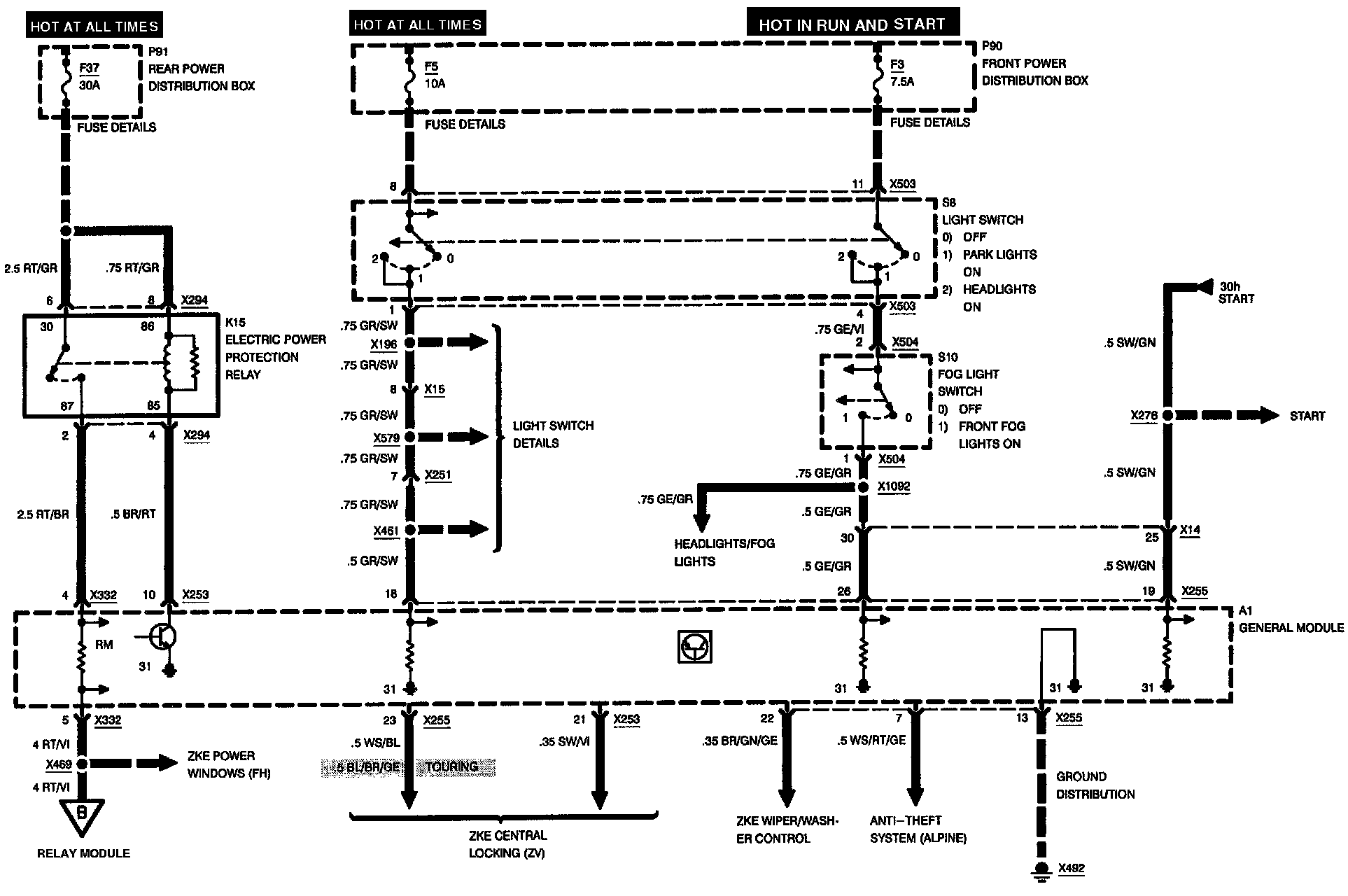

Central Body Electronics (ZKE): General Module (Canada Only):





Central Body Electronics (ZKE): General Module (Canada Only):





Central Body Electronics (ZKE): General Module:
