Replacing Sensor For Telethermometer (M50)



Replacing Sensor For Telethermometer (M50)

Note: Drain off some coolant.






Remove ventilation hose for 3-phase alternator.

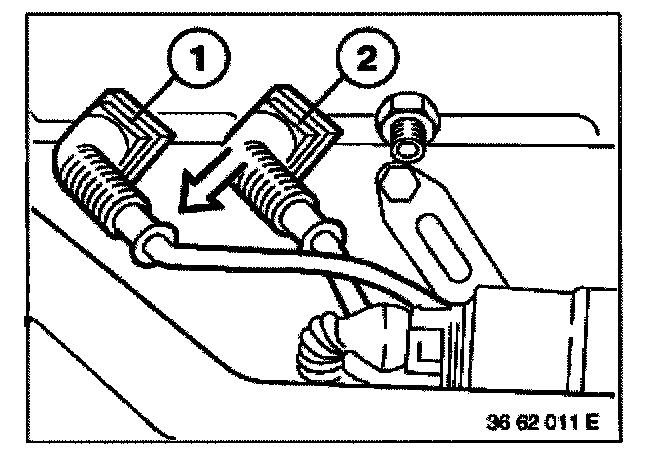

Disconnect plug-in connection (2) and unscrew telethermometer sensor.

Installation note: Fill and bleed cooling system.
