Removing and Installing Telethermometer Sensor

Removing and Installing Telethermometer Sensor
- Drain off some coolant.

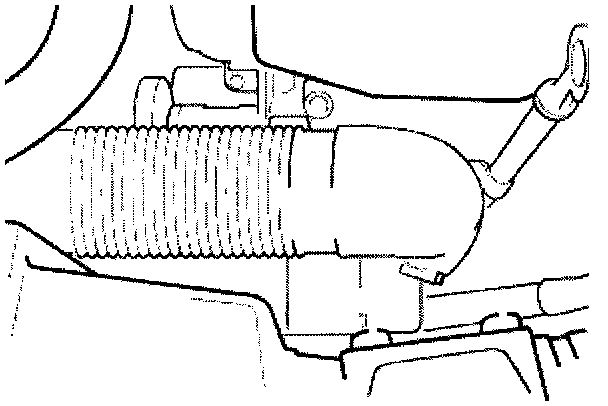

- Remove ventilation hose for 3-phase alternator.

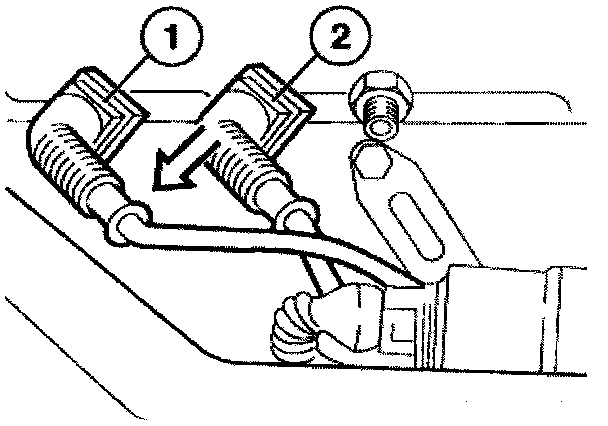

- Disconnect plug-in connection (2) and unscrew telethermometer sensor.
- Fill and bleed cooling system.
