Home
>>
BMW
>>
1995
>>
325is (E36) L6-2494cc 2.5L DOHC (M50 TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>

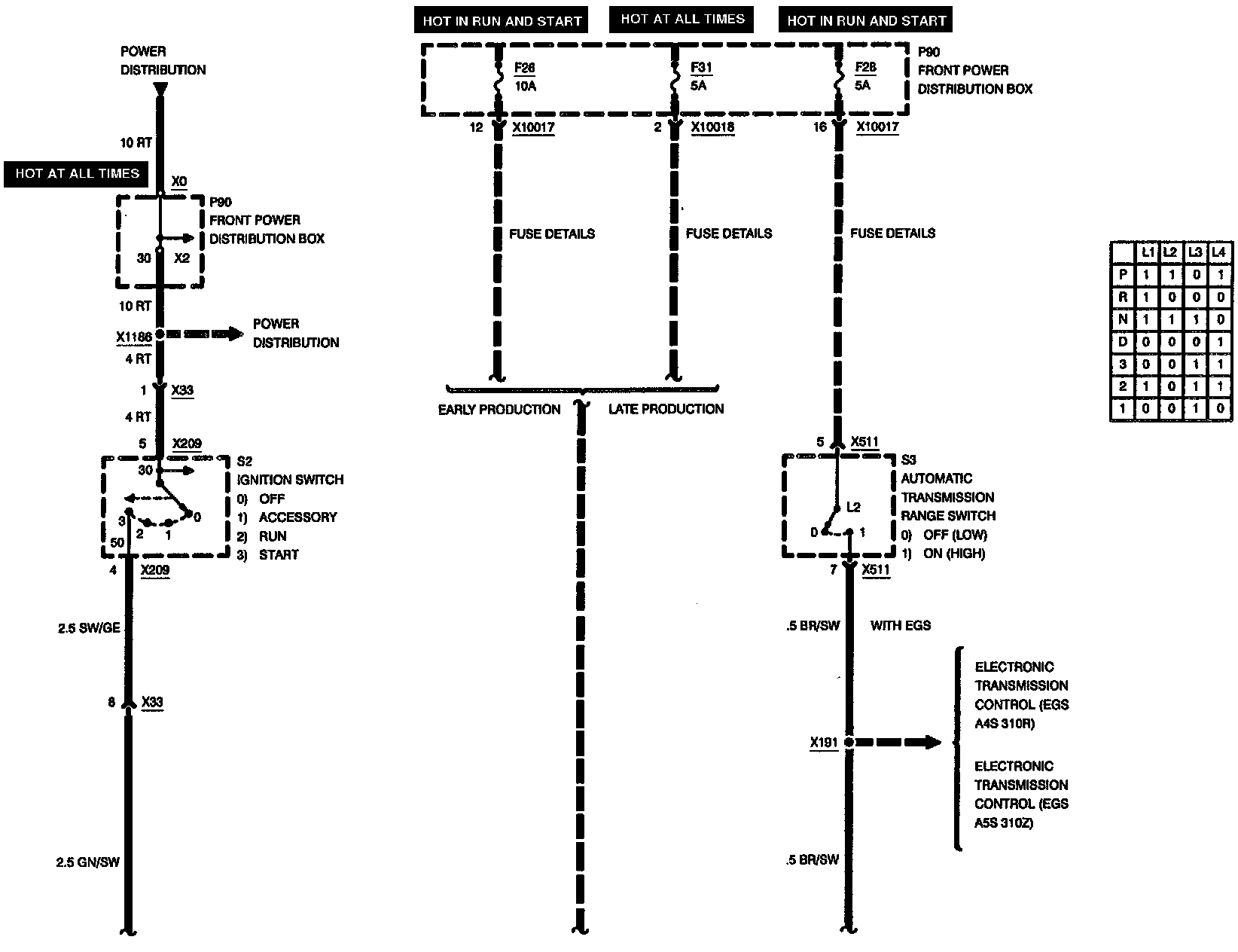

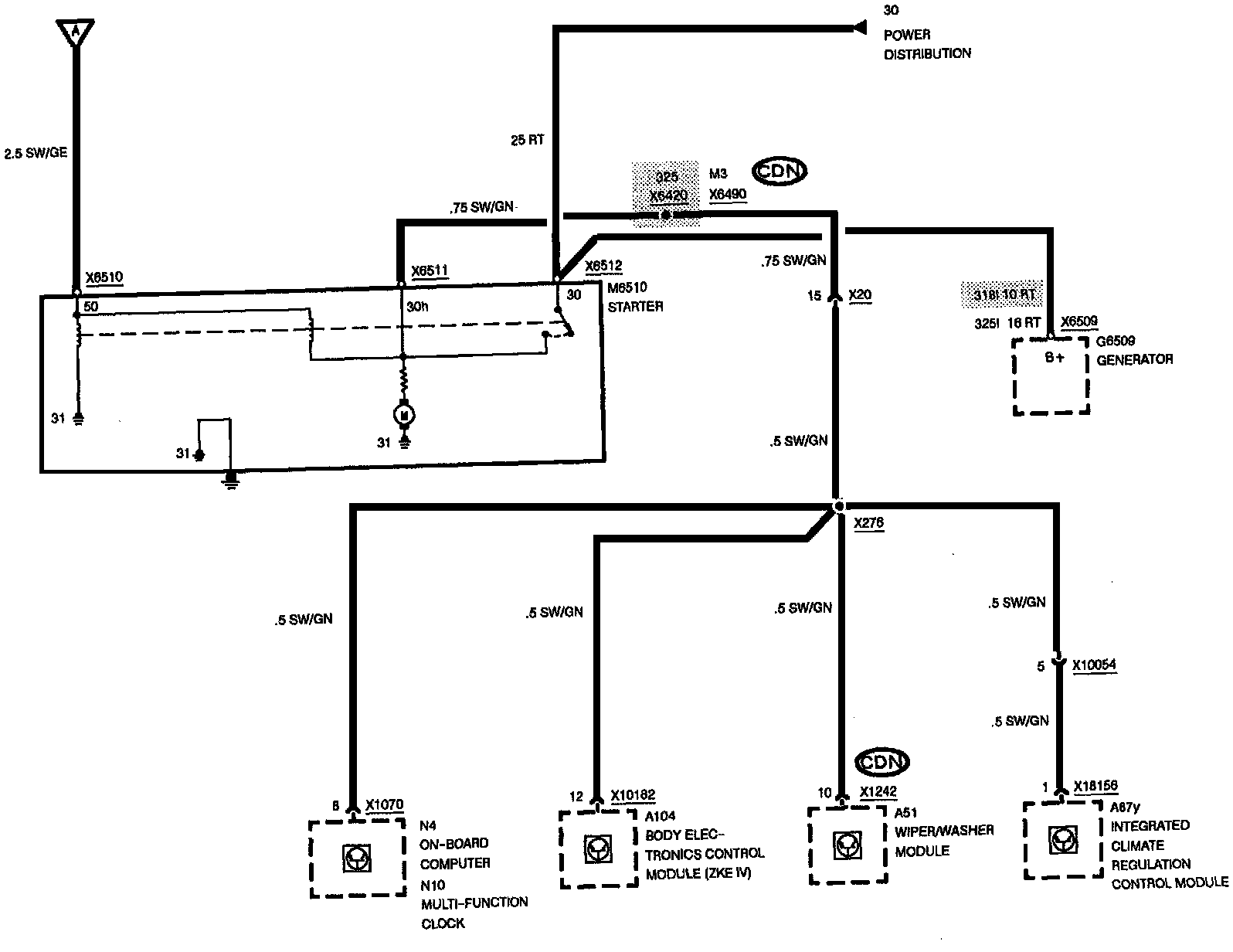

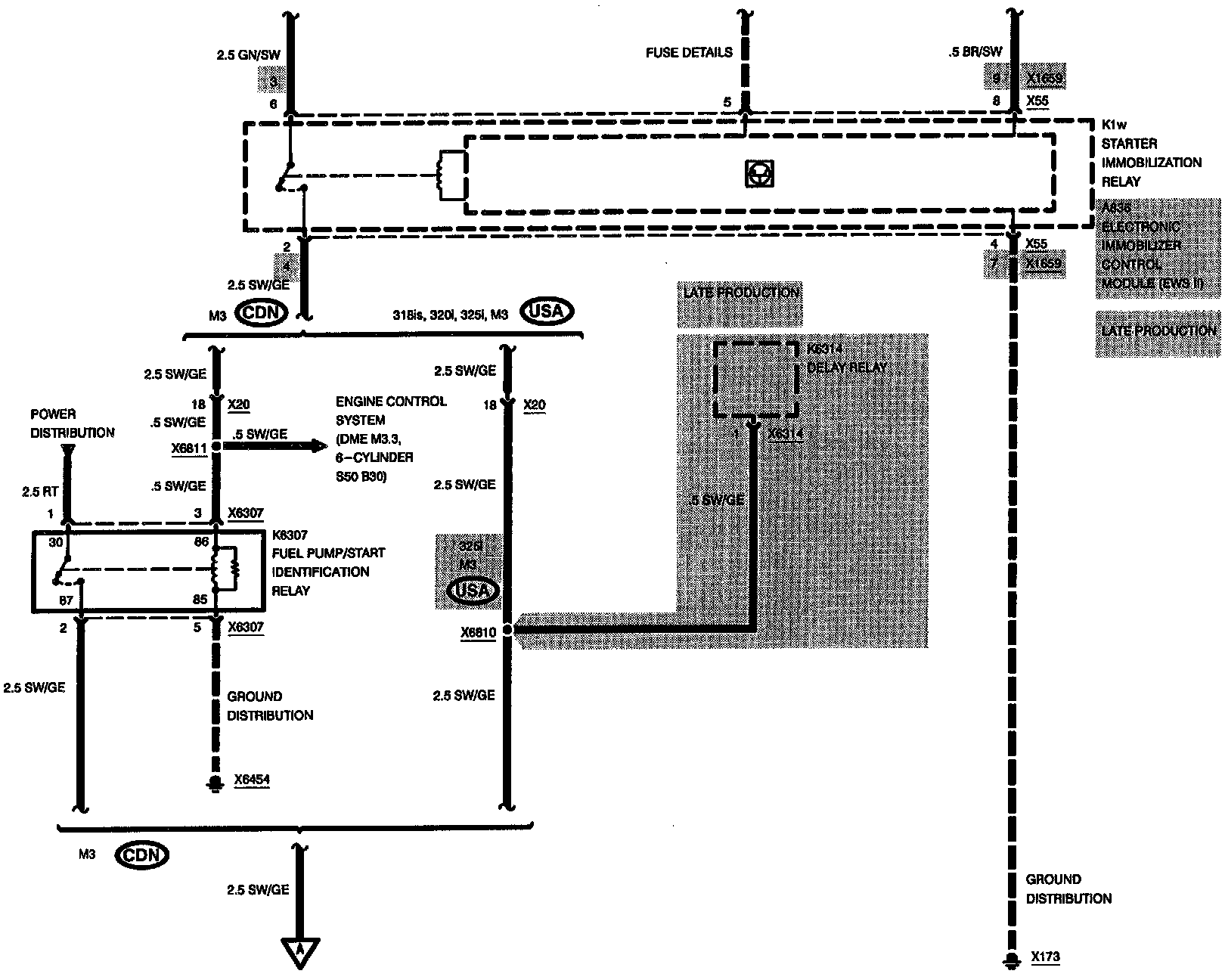

System Diagram
System Diagram
Start:
Start:
Start:
